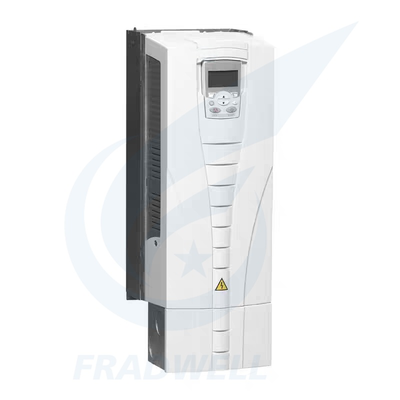

ACS550 Frequency Converter Inverter 0.75kW - 315kW Variable Frequency Inverter

The core issues are improper load matching and control mode settings. Solutions: 1) Switch the control mode from default V/F control to sensorless vector control, then perform motor auto-tuning (enter motor nameplate parameters) to optimize torque output efficiency and reduce motor iron loss; 2) Verify that the "Motor Rated Frequency" parameter matches the motor nameplate. Incorrect setting (e.g., 50Hz instead of 60Hz) will cause the motor to operate in a non-rated state, leading to severe heating; 3) Adjust the "Torque Boost" parameter from the default 0 to 8-12% to enhance low-speed torque output and avoid motor overload heating; 4) Check for jamming in the mixer's mechanical transmission components (gears, bearings). Excessive mechanical resistance increases motor load, requiring timely maintenance to reduce ineffective energy consumption.

The main reason is mismatched parameters between the energy-saving calculator and actual operating conditions. Calibration steps: 1) Enter the energy-saving calculator parameter menu and verify basic parameters such as "Motor Efficiency," "Grid Voltage," and "Power Frequency Operating Power" to ensure consistency with the motor nameplate and on-site actual data (default parameters may not match actual conditions); 2) Enable the "Energy-Saving Calculator Auto-Calibration" function, allowing the inverter to operate in power frequency and variable frequency modes for 10-15 minutes each to automatically correct calculation coefficients; 3) Check for pump idling or leakage. The energy-saving calculator will miscalculate energy consumption during idling; install liquid level protection or leakage detection devices; 4) If deviations persist, contact local ABB distributors to upgrade the inverter firmware--some older firmware versions have energy-saving calculation algorithm deviations.

The issue lies in communication parameters and data mapping. Solution steps: 1) Check if the ACS550's Ethernet/IP module is functioning normally. If the module indicator is abnormal, reinsert or replace the module; 2) Enable the "Energy-Saving Data Upload" function in the inverter parameters and map data such as energy savings and emission reductions to corresponding communication registers (refer to the register address table in ABB's global technical manual); 3) Configure data collection points in the building automation system, ensuring consistent register addresses with the inverter, and matching communication baud rate (19200bps recommended) and data format (8N1); 4) Optimize wiring by separating communication cables from power cables (spacing ≥50cm) to avoid electromagnetic interference causing data transmission loss.

Combine external protection with parameter optimization. Solutions: 1) Install a three-phase AC voltage stabilizer (1.5 times the inverter's rated power) at the ACS550 input terminal to stabilize the input voltage and avoid undervoltage protection triggers; 2) Adjust parameters: lower the "Undervoltage Protection Threshold" from the default 320V to 280V (confirm inverter support) and enable the "Voltage Fluctuation Suppression" function to extend the undervoltage protection response time; 3) Check if the ventilation fan's motor cable cross-section is too small. Long wiring distances in mines cause voltage drops at terminals; upgrade the cable cross-section (e.g., from 4mm² to 6mm²); 4) If the ambient temperature exceeds 45℃, enable the "Derated Operation" function to avoid faults caused by combined high temperature and undervoltage.

The issue is likely due to communication interference or mechanical problems. Troubleshooting steps: 1) Check communication wiring to ensure ABB terminals correspond to PLC terminals A/A and B/B. Install 120Ω terminal resistors at both ends of the communication bus to reduce signal reflection; 2) Adjust the inverter's "Acceleration Time" and "Deceleration Time" from the default 3s to 5-8s to avoid load fluctuations caused by sudden speed changes; 3) Check if the conveyor belt tension is uniform. Loose or misaligned belts cause local overload and jamming; adjust belt tension or replace worn components; 4) Enable the "Speed Command Filtering" function in the PLC to smooth control signals and reduce speed fluctuations caused by power grid fluctuations or interference.

Noise mainly comes from the inverter's switching frequency and fan aerodynamic noise. Solutions: 1) Adjust the ACS550's "Switching Frequency" from the default 4kHz to 8kHz (supports up to 12kHz) to reduce motor harmonic noise; 2) Enable the "Fan-Specific Energy-Saving Curve" and appropriately increase voltage in the low-speed range (below 10Hz) to optimize motor operation and reduce low-frequency noise; 3) Check for dust accumulation or imbalance on the fan impeller. Dust adhesion causes impeller vibration; regularly clean and perform dynamic balance calibration; 4) Install silencers at the fan inlet and outlet, or shock-absorbing pads between the motor and mounting bracket to reduce structural noise transmission.
