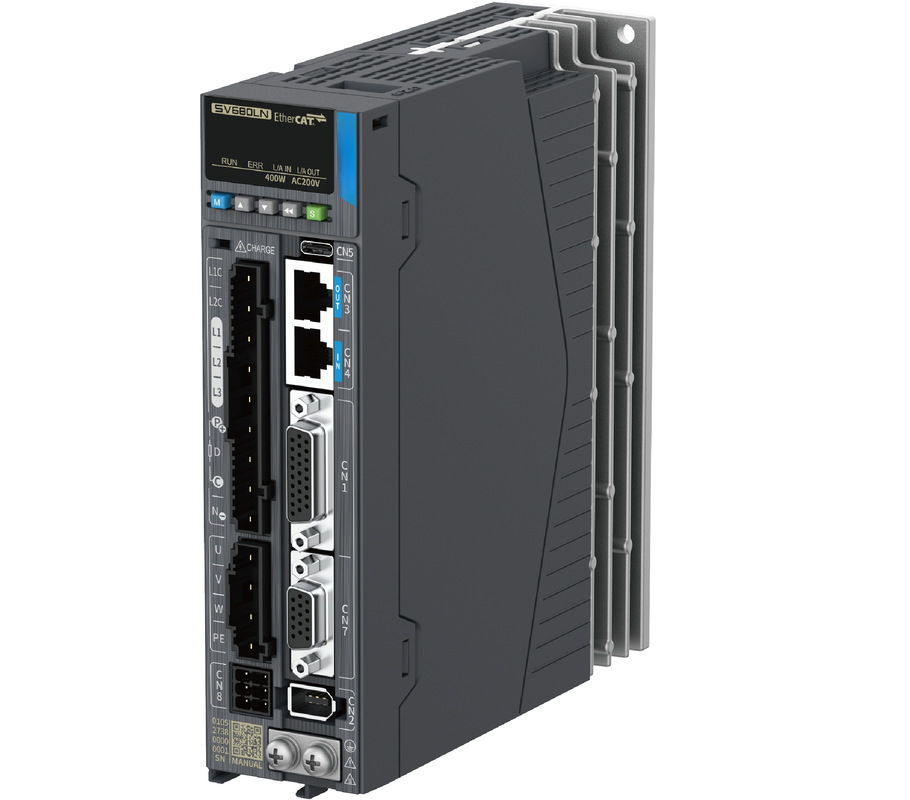

SV680L Direct Drive Servo Motor 3.5kHz & 26bit Industrial Automation Direct Servo Motor

Name: SV680L Direct Drive Servo Motor 3.5kHz & 26bit Industrial Automation Direct Servo Motor
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: SV680L
Price: 1,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: CE、UL、KC、EAC、UKCA、TUV、SEMI F47

Model Number: SV680L

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $500- $2500

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            SV680L Direct Drive Servo Motor, Direct Drive Servo Motor 3.5kHz, Industrial Automation Direct Servo Motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

SV680L Direct Drive Servo Motor 3.5kHz & 26bit Industrial Automation Direct Servo Motor

SV680L Direct Drive Servo: 3.5kHz Bandwidth & 26bit Precision for Industrial Automation

The SV680L series high-performance direct drive servo delivers 0.05kW - 7.5kW power coverage, engineered for precision industrial automation scenarios. Supporting Modbus and EtherCAT communication protocols, it enables seamless multi-drive networking operation with upper controllers, ideal for synchronized production lines and complex motion control systems.

Equipped with built-in rigidity table setting, inertia identification, and vibration suppression functions, the SV680L simplifies servo tuning and commissioning. It achieves accurate position control, speed control, and torque control in one device, eliminating the need for complex external accessories. This user-friendly design cuts down setup time significantly, ensuring quick integration into your existing equipment and boosting overall production efficiency.

Core Features & Advantages

Zero-transmission Precision: Eliminates gear/belt backlash, wear and deformation; ±1μm positioning accuracy, 3.5kHz speed loop bandwidth, 26-bit multi-turn absolute encoder (power-off position retention, no homing needed).
High-efficiency Control: 625kHz current loop + 3.5kHz speed loop for fast disturbance rejection; position/speed/torque closed-loop control (max 8Mpps pulse frequency). Stune one-click tuning, vibration suppression (30ms) cuts commissioning time.
Global Safety & Certifications: Standard STO (SIL3/PLe), expandable 8 safety functions (SS1/SS2/SLS); complies with EN61508/ENISO13849. EtherCAT FSoE safety bus, PTC motor protection, CE/UL/KC/TUV certified.
Easy Networking & Maintenance: Supports EtherCAT (250μs sync cycle) and Modbus (CiA402 protocol) for multi-unit sync. Type-C power-free debugging, black box fault recording, batch parameter management; 5-year warranty, independent air duct for reliable heat dissipation.
Strong Adaptability: Full closed-loop control + error compensation; fits gantry synchronization, semiconductor wafer handling. 220V (S-type)/380V (T-type) options; plug-and-play with Inovance direct-drive motors.

Technical Specifications

Parameter Category	Specific Parameter Item	Parameter Value
General Technical Parameters	Power Range	0.05kW ~ 7.5kW
	Compatible Motor Type	DDL Linear Direct Drive Motor, DDR Rotary Direct Drive Motor
	Protection Class (Driver)	IP20
	Warranty Period	5-Year Whole Machine Warranty
Electrical Parameters	Rated Supply Voltage	Type S: Single-Phase/Three-Phase 220V AC; Type T: Three-Phase 380V AC
	Rated Output Current	Type S: 2.8A/5.5A/7.6A/12.0A/18.0A/22.0A/27.0A; Type T: 5.4A/8.4A/12.0A/17.0A/21.0A/26.0A
	Grid Frequency	50/60Hz Compatible
	Braking Method	Standard Dynamic Braking, Built-in Brake Output
	Motor Protection	Built-in PTC Motor Thermal Protection
Control Performance Parameters	Control Mode	Position Control, Speed Control, Torque Control (Three-Closed-Loop Control)
	Current Loop Bandwidth	625kHz
	Speed Loop Bandwidth	3.5kHz
	Command Pulse Frequency	Max 8Mpps
	Encoder Support	Standard 26-bit Multi-Turn Absolute Encoder, Supports Endat 2.2, BISS-C, SSI, ABZ Incremental Encoder
	Vibration Suppression Response Time	≤30ms
Control Performance Parameters	Positioning Accuracy	±1μm Class
Communication & Synchronization Parameters	Communication Protocol	Standard EtherCAT (Compatible with CiA402 Protocol), Modbus; Optional EtherCAT FSoE Safety Bus
	EtherCAT Minimum Synchronization Cycle	250μs
	Synchronization Function	Supports Multi-Axis Networked Synchronous Operation, Gantry Synchronous Control (Anti-Torsion Protection)
	Debugging Interface	Type-C Debugging Port (Power-Free Configuration)
Safety & Certification Parameters	Safety Function	Standard STO (SIL3/PLe), Expandable to 8 Safety Functions Including SS1/SS2/SLS/SBC/SOS/SSM/SDI
	Safety Standard	Complies with EN61508, ENISO13849 Standards
	Global Certifications	CE, UL, KC, TUV Certifications

SV680L Series Models & Motor Compatibility

Overseas Model	Voltage Class	Rated Output Current	Communication Type	Matching Direct-Drive Motor	Motor Power Range
SV680LNS1R6I-GINT	220V AC (Single/Three-Phase)	1.6A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H4-10B30 Series; DDL Linear: DDL10 Series	0.05kW - 0.2kW
SV680LNS2R8I-GINT	220V AC (Single/Three-Phase)	2.8A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H4-40B30 Series; DDL Linear: DDL20 Series	0.2kW - 0.4kW
SV680LNS5R5I-GINT	220V AC (Single/Three-Phase)	5.5A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H4-55B30/75B30 Series; DDL Linear: DDL30 Series	0.4kW - 0.75kW
SV680LNS7R6I-GINT	220V AC (Single/Three-Phase)	7.6A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H4-10C30/85B15 Series; DDL Linear: DDL40 Series	0.75kW - 1.0kW
SV680LNS012I-GINT	220V AC (Three-Phase)	12.0A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H2-15C30/13C15 Series; DDL Linear: DDL50 Series	1.0kW - 1.5kW
SV680LNS018I-GINT	220V AC (Three-Phase)	18.0A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H2-20C30/18C15 Series; DDL Linear: DDL60 Series	1.5kW - 2.0kW
SV680LNS022I-GINT	220V AC (Three-Phase)	22.0A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H2-25C30/29C15 Series; DDL Linear: DDL70 Series	2.0kW - 2.5kW
SV680LNS027I-GINT	220V AC (Three-Phase)	27.0A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H2-40C30/44C15 Series; DDL Linear: DDL80 Series	2.5kW - 5.0kW
SV680LNT5R4I-GINT	380V AC (Three-Phase)	5.4A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H2-15C30CD/13C15CD Series; DDL Linear: DDL50H Series	1.5kW - 2.0kW
SV680LNT8R4I-GINT	380V AC (Three-Phase)	8.4A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H2-20C30CD/18C15CD Series; DDL Linear: DDL60H Series	2.0kW - 3.0kW
SV680LNT012I-GINT	380V AC (Three-Phase)	12.0A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H2-30C30CD/29C15CD Series; DDL Linear: DDL70H Series	3.0kW - 4.4kW
SV680LNT017I-GINT	380V AC (Three-Phase)	17.0A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H3-44C15CD Series; DDL Linear: DDL80H Series	4.4kW - 5.5kW
SV680LNT021I-GINT	380V AC (Three-Phase)	21.0A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H3-55C15CD Series; DDL Linear: DDL90H Series	5.5kW - 6.0kW
SV680LNT026I-GINT	380V AC (Three-Phase)	26.0A	EtherCAT (CiA402 Protocol)	DDR Rotary: MS1H3-75C15CD Series; DDL Linear: DDL100H Series	6.0kW - 7.5kW

Application Fields

Semiconductor & Electronics: Wafer transfer, die bonding, LCD/OLED cutting, PCB drilling, 3C precision assembly. Ideal for high-speed, low-noise cleanroom operations.
Precision Machine Tools: High-speed engraving, grinding, laser processing. Fast disturbance rejection and one-click tuning cut machining setup time.
Industrial Automation & Robotics: SCARA/6-axis robot joints, linear motor gantries, high-speed pick-and-place. EtherCAT sync enables multi-axis coordination; low maintenance for 24/7 lines.
New Energy Equipment: Lithium battery electrode slitting, cell stacking, tab welding. Torque stability and thermal protection ensure consistent production quality.
Medical & Packaging: Diagnostic imaging stages, pharmaceutical blister packaging, precision labeling. Global safety certifications (CE/UL/KC/TUV) meet strict industry standards.

Frequently Asked Questions

Q1: Can SV680L work with non-Inovance direct drive motors?

Yes. It supports manual parameter input for third-party DDL/DDR motors. For optimal performance and plug-and-play convenience, pairing with Inovance motors is recommended.

Q2: Does SV680L meet EU/US safety requirements?

Absolutely. It comes with standard STO (SIL3/PLe), 8 expandable safety functions, and CE/UL/KC/TUV certifications. Fully complies with EN61508/ENISO13849 for EU machinery directives.

Q3: What communication protocols are supported?

Standard EtherCAT (250μs min sync cycle, CiA402 protocol) and Modbus. EtherCAT FSoE is optional for safety-critical applications.

Q4: How to speed up commissioning for multi-axis systems?

Use Stune one-click tuning for single-axis setup. For multi-axis, batch import/export parameters via Type-C port cuts setup time by 50%.

Q5: How much lower is its maintenance cost vs. traditional servos?

70% lower long-term cost. No gears/belts to replace; black box fault recording enables fast troubleshooting and minimal downtime.

Q6: Is SV680L fit for cleanroom use?

Yes. Low noise (<60dB), dust-proof design, and no lubrication required--ideal for semiconductor and electronics cleanroom operations.

Q7: What voltage options are available for global markets?

220V (S-type) for North America/Europe small-power applications, 380V (T-type) for heavy loads. Both compatible with 50/60Hz grids.
