SV660 Universal Servo Drive 3kHz High Precision Motion Control Servo Drive

Name: SV660 Universal Servo Drive 3kHz High Precision Motion Control Servo Drive
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: SV660
Price: 640.00 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: CE、UL、KC、EAC、UKCA、RoHs、TUV

Model Number: SV660

Payment & Shipping Terms

Price: $80 - $1200

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            SV660 Universal Servo Drive, Universal Servo Drive 3kHz, High Precision Motion Control Servo Drive


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

SV660 Universal Servo Drive 3kHz High Precision Motion Control Servo Drive

SV660 Universal Servo Drive: 3kHz Bandwidth & 23bit Encoder for High-Precision Motion Control

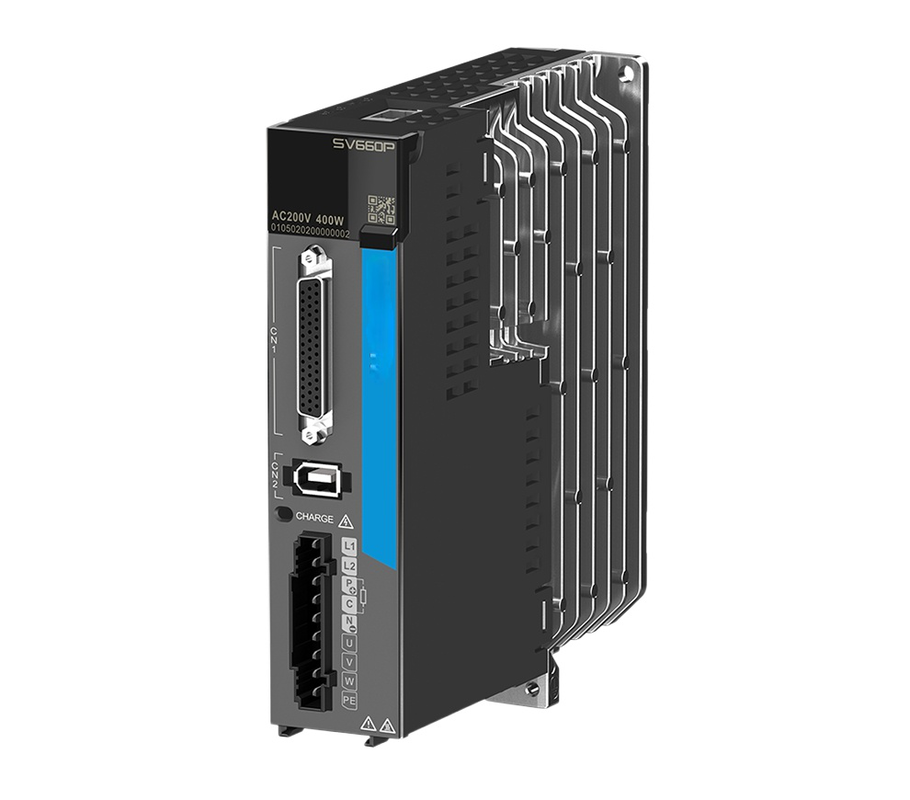

SV660 Universal Servo Drive

High-performance AC servo drive with 3kHz bandwidth and 23-bit encoder for precision motion control applications.

Product Overview

The SV660 series servo is a high-performance, small-to-medium power AC servo product developed by INOVANCE. With a power range of 0.05kW to 7.5kW, this series supports multiple communication protocols including EtherCAT, Modbus, CANopen, CANlink and PROFINET. By adopting corresponding communication interfaces and working with a host computer, it enables networked operation of multiple servo drives.

Key Features

0.05kW-7.5kW power range for high-precision motion control of light to medium industrial loads
Multi-protocol support: EtherCAT/Modbus/CANopen/CANlink/PROFINET for seamless integration
Multi-drive networked operation with host computer for centralized control
Compact size with plug-and-play installation and fast wiring & debugging
Comprehensive protection functions with anti-interference design for harsh industrial environments
INOVANCE quality assurance with global compliance for industrial automation

Technical Specifications

Parameter Category	Parameter Item	Specification Description
Basic Specifications	Rated Power Range	0.05kW - 7.5kW (covers small-to-medium power, suitable for light and medium load scenarios)
	Compatible Motor Type	AC permanent magnet synchronous motor, standard with MS1 series servo motors
	Supply Voltage	Three-phase 220V AC / Three-phase 380V AC (depending on model)
	Protection Level	Drive: IP20 (must be installed in closed electrical cabinet); Motor: IP67 (optional, dustproof and waterproof)
Performance Parameters	Speed Loop Bandwidth	3kHz (fast response, shortens positioning settling time, excellent command tracking)
	Encoder Resolution	23-bit absolute encoder (single-turn/multi-turn optional), resolution up to 8,388,608 P/R, position memory when power off
	Overload Capacity	3 times rated current (short-time overload, suitable for dynamic load requirements)
	Pulse Command Frequency	Max. 4MHz (differential input, pulse width ≥ 0.125μs)
	Control Modes	Supports position/speed/torque modes (compliant with CiA 402 standard), switchable flexibly
Communication Specifications	Supported Protocols	EtherCAT, Modbus RTU, CANopen, CANlink, PROFINET
	EtherCAT Synchronization Cycle	125μs supported in all operating modes, synchronization jitter ±20ns, high multi-axis synchronization accuracy
	Communication Interfaces	RS485 (Modbus), EtherCAT interface, CAN interface, supporting multi-drive networking
	Network Nodes	Max. 32 units per segment for EtherCAT/PROFINET (without repeater)
Structure & Functions	Dimensions	30% smaller than previous generation (40mm width for 400W model, saving electrical cabinet space)
	Debugging Functions	Supports STune/ETune auto-gain adjustment, wizard-based software debugging, one-click parameter cloning and downloading
	Safety Functions	Standard STO (SIL3 level) safe torque off, built-in dynamic braking function
	Protection Functions	Multiple protections: overcurrent, overvoltage, overload, overheating, encoder fault, motor disconnection, etc.
Environmental Parameters	Operating Temperature	-10℃ ~ 45℃ (average load rate ≤80% when ambient temperature is 45℃~55℃)
Environmental Parameters	Operating Humidity	≤90%RH (no condensation, avoiding moisture impact on operation)

Available Models & Compatible Motors

Driver Series	Overseas Model	Rated Power	Voltage Class	Matching Motor Model	Motor Frame Size
SV660P Series (Pulse Type)	SV660PS1R6I	0.05kW/0.1kW/0.2kW/0.4kW	Single-phase 220V	MS1H1-05B30CB-A330R/A332R, MS1H1-10B30CB-A330R/A332R, MS1H1-20B30CB-A331R/A334R, MS1H1-40B30CB-A331R/A334R	40mm/60mm
	SV660PS2R8I	0.4kW/0.55kW	Single-phase 220V	MS1H1-40B30CB-A331R/A334R, MS1H1-55B30CB-A331R	60mm/80mm
	SV660PS5R5I	0.75kW	Single-phase 220V	MS1H1-75B30CB-A331R/A334R, MS1H4-75B30CB-A331R/A334R	80mm
	SV660PS7R6I	1.0kW	Single-phase/Three-phase 220V	MS1H1-10C30CB-A331R/A334R, MS1H2-10C30CB-A331R/A334R, MS1H3-85B15CB-A331R/A334R	80mm/100mm/130mm
	SV660PS012I	1.5kW/2.0kW	Single-phase/Three-phase 220V	MS1H2-15C30CB-A331R/A334R, MS1H2-20C30CB-A331R/A334R, MS1H3-13C15CB-A331R/A334R, MS1H3-18C15CB-A331R/A334R	100mm/130mm
	SV660PT3R5I	1.0kW/0.85kW	Three-phase 380V	MS1H2-10C30CD-A331R/A334R, MS1H3-85B15CD-A331R/A334R	100mm/130mm
	SV660PT5R4I	1.5kW/1.3kW	Three-phase 380V	MS1H2-15C30CD-A331R/A334R, MS1H3-13C15CD-A331R/A334R	100mm/130mm
	SV660PT8R4I	2.0kW/1.8kW	Three-phase 380V	MS1H2-20C30CD-A331R/A334R, MS1H3-18C15CD-A331R/A334R	100mm/130mm
	SV660PT012I	2.5kW/3.0kW/2.9kW	Three-phase 380V	MS1H2-25C30CD-A331R/A334R, MS1H2-30C30CD-A331R/A334R, MS1H3-29C15CD-A331R/A334R	100mm/130mm/180mm
	SV660PT017I	4.0kW/4.4kW	Three-phase 380V	MS1H2-40C30CD-A331R/A334R, MS1H3-44C15CD-A331R/A334R	130mm/180mm
	SV660PT021I	5.0kW/5.5kW	Three-phase 380V	MS1H2-50C30CD-A331R/A334R, MS1H3-55C15CD-A331R/A334R	130mm/180mm
	SV660PT026I	7.5kW	Three-phase 380V	MS1H3-75C15CD-A331R/A334R	180mm

Additional series include SV660N (EtherCAT Bus), SV660A (CANlink Bus), and SV660C (CANopen Bus) with similar power ranges and compatible motor options.

Application Fields

CNC Machinery: CNC lathes, milling machines, engraving machines for high-precision machining
Industrial Robotics: Collaborative robots, SCARA robots, robotic arms for automated handling & assembly
Packaging Equipment: Vertical form-fill-seal machines, labeling machines, cartoners for high-speed packaging lines
Electronic Manufacturing: PCB drilling machines, chip mounters, soldering equipment for electronics production
Material Handling Systems: Conveyors, palletizers, stackers for intelligent logistics & warehousing
Printing Machinery: Digital printers, label printers for precise paper feeding & color registration
Textile Machinery: Looms, embroidery machines for accurate thread control & pattern positioning
Medical Equipment: Diagnostic devices, sample handling systems for stable, low-noise operation

Frequently Asked Questions

Q1: Can the SV660 work with my non-INOVANCE servo motor?

A: Yes, but it only supports AC permanent magnet synchronous motors with matching power and encoder type. You need to manually set motor parameters in the drive; auto-tuning may not work for non-original motors.

Q2: How do I switch communication protocols like EtherCAT and PROFINET on SV660?

A: Go to the drive's parameter menu, select the communication protocol option, choose your target protocol, then power cycle the drive. Don't forget to match the communication interface wiring and upper computer settings.

Q3: Why does the SV660 keep showing an overcurrent (OC) fault during startup?

A: Common reasons: ① Short circuit in motor cables; ② Overload from mechanical jamming; ③ Incorrect motor parameter configuration. Check wiring first, then reduce load speed and retry auto-tuning.

Q4: Can the SV660 operate in harsh environments (high temperature, dust)?

A: The drive's standard protection level is IP20, so it needs to be installed inside a closed electrical cabinet. Ensure cabinet temperature stays below 45°C and good ventilation; avoid direct dust or moisture contact.

Q5: What's the maximum number of SV660 drives I can connect in a network?

A: It depends on the protocol: EtherCAT/PROFINET can support up to 32 drives in one network segment (without signal repeaters). More drives require adding a repeater to avoid communication delays.

Q6: Do I need a separate braking resistor for the SV660?

A: Yes, for motors above 1.5kW, or if the equipment has frequent deceleration/heavy load braking. Without it, the drive will trigger an overvoltage (OV) fault and shut down.

Q7: How to solve the problem of SV660 positioning inaccuracy?

A: ① Check if the encoder cable is loose or shielded properly; ② Increase the position loop gain appropriately; ③ Verify that the mechanical transmission part (like gears, belts) has no backlash.

Q8: Is the SV660 compliant with EU safety standards?

A: Yes, it meets CE, RoHS standards, and has STO (SIL3) safety function. You can directly use it for equipment exported to EU markets.
