Highlight:
                                                                                                                                                            MQA Asynchronous Servo Motor, I950 Asynchronous Servo Motor, I700 Servo Drive Motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

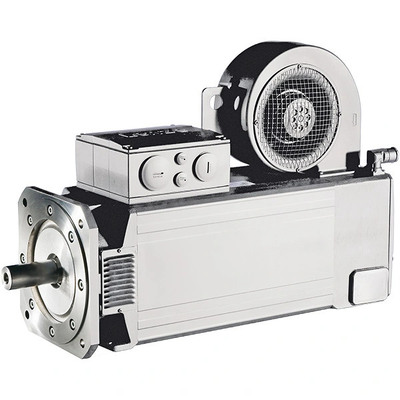

MQA Asynchronous Servo Motor Compatible With I700/I950 Cabinet Drives

MQA Asynchronous Servo Motor | Compatible with i700/i950 Cabinet Drives

MQA Asynchronous Servo Motor

The MQA Asynchronous Servo Motor offers seamless compatibility with i700 and i950 cabinet drives, creating a high-performance integrated drive solution for industrial automation. This motor-drive combination delivers precise motion control, rapid response, and reliable operation across diverse applications including metal processing machinery, packaging lines, industrial robots, and textile equipment.

Product Highlights

Low Moment of Inertia - Optimized inertia design enables rapid response to control commands, ideal for high-speed start-stop and frequent reversing applications requiring precise positioning and speed regulation.
Plug-in Connection for Efficient Installation & Maintenance - Integrated plug-in connection eliminates complicated wiring, significantly reducing installation time and enabling quick component replacement to minimize equipment downtime.
Electronic Nameplate for Hassle-free Commissioning - Built-in electronic nameplate allows automatic identification and reading of device parameters, eliminating manual parameter entry and simplifying the commissioning process.
Compatible with Mainstream Servo Drives for Flexible Solutions - Seamlessly compatible with i700 cabinet and i950 cabinet servo drives, enabling easy construction of high-performance drive systems for various power and torque requirements.

Core Technical Parameters

Parameter Category	Parameter Details
Basic Model	MQA Series (MQA20/MQA22/MQA26, etc.)
Rated Power	10.6-60.2 kW
Rated Torque	76-325 Nm
Rated Speed	Up to 5500 rpm
Mounting Type	B3 (Horizontal), B35 (Flange-mounted Horizontal)
Feedback Device	Resolver, Absolute Encoder, Incremental Encoder
Protection Class	IP23 (Motor Body), IP65 (Plug)
Compatible Drives	Lenze i700/i950 Cabinet Drives
Power Supply Specification	3-Phase AC 230V/400V/480V
Cooling Method	Radial Fan Forced Cooling
Temperature Monitoring	Built-in KTY 83-110 Thermal Sensor
Core Features	Low Inertia, Electronic Nameplate, Plug-in Connection
Safety Certifications	CE, UL, cUL

Overseas Product Models & Compatible Drives

Product Series	Overseas Sales Models	Key Specifications	Compatible Drives	Remarks
MQA Series	MQA20 Series (e.g., MQA20L14H, MQA20L29H)	10.6-20.3 kW / 76-135 Nm	Lenze i700/i950 Cabinet Servo Inverters, 9400 Series, 8400 TopLine	Equipped with Speedtec connectors; standard resolver feedback
MQA22 Series	MQA22P08, MQA22P29-RS0F1-K38N-SQ2F30N-R0SU	11.5-38.4 kW / 100-250 Nm	Lenze i700/i950 Cabinet Servo Inverters, 9400 Series, 8400 TopLine	Three-part terminal box; optional AC 230V/DC 24V spring-applied brake
MQA26 Series	MQA26T05H, MQA26T12H, MQA26T22H	17.0-60.2 kW / 200-325 Nm	Lenze i950 Cabinet (preferred), 9400 Series, 8400 TopLine	Suitable for high-torque continuous operation; optional encoders
Customized Models	MQA22P29-RS0F1-K38N-SQ2F30N-R0SU	Customizable based on demand	Lenze i700/i950 or 9400 Series (matched to parameters)	Support customization of feedback devices, protection level accessories

Application Fields

Industrial Automation Lines - Automated assembly lines, material handling, precision assembly, auto-sorting, CNC machine tool positioning & cutting control
Industrial Robots - SCARA/Delta robot joint drive, high-speed pick-and-place, auto/electronic component assembly
Printing & Textile Machinery - Printing press color register electronic shaft control, textile yarn tension adjustment, heat setting machine speed synchronization
Food & Packaging Equipment - High-speed packaging machine synchronization, food sorting & conveying, meeting hygiene and quick maintenance requirements
Special Industrial Scenarios - Radial fan drive, solar tracking systems, medical equipment precision motion control

MQA Asynchronous Servo Motor Q&A

Q1: Is the Lenze MQA motor compatible only with Lenze i700/i950 cabinet drives?

It works best with Lenze i700/i950 drives for full performance. It can also match other mainstream drives with proper parameter tuning, but we recommend Lenze's original drive combo for stable precision.

Q2: How to handle the electronic nameplate data if the commissioning tool is not available?

Use a standard PLC or HMI to read the nameplate data directly via the motor's communication port. The data is in a universal format, no exclusive software required.

Q3: Can the plug-in connection withstand harsh industrial environments?

Yes. The plug is IP65-rated, dustproof and waterproof. It suits factories with high dust, humidity or frequent cleaning, like food packaging workshops.

Q4: What maintenance work is needed for long-term operation?

Just check the plug connection tightness every 6 months and clean the motor surface dust. No regular oiling required--saves maintenance time and cost.

Q5: Does the motor meet overseas safety standards?

It has CE, UL and cUL certifications, compliant with EU and North American market requirements. Directly available for import and use.

Q6: What's the delivery lead time for bulk orders?

Standard models: 2-3 weeks. Customized versions: 4-6 weeks. We have stock in major overseas warehouses for urgent orders.
