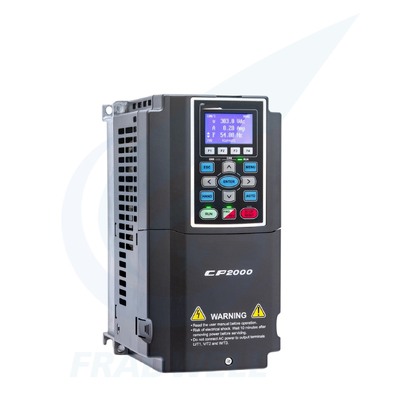

1HP-850HP 3 Phase Variable Frequency Drive Inverter IP00 IP20

Name: 1HP-850HP 3 Phase Variable Frequency Drive Inverter IP00 IP20
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: CP2000
Price: 460.00 USD
Availability: InStock

Product Details

Place of Origin: Taiwan

Model Number: CP2000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $120 - $800

Delivery Time: 3-5workday

Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    850HP 3 Phase Variable Frequency Drive, 1HP 3 Phase Variable Frequency Drive, Variable Frequency Drive Inverter IP00


Type:	Frequency Converter Inverter	Rated Power:	0.7kW - 630kW
IP Level:	IP00 IP20	Pakage:	Original Pakage
Warranty:	Original Manufacturer's Warranty	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

Type:	Frequency Converter Inverter
Rated Power:	0.7kW - 630kW
IP Level:	IP00 IP20
Pakage:	Original Pakage
Warranty:	Original Manufacturer's Warranty
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

1HP-850HP 3 Phase Variable Frequency Drive Inverter IP00 IP20

CP2000 Inverter: Energy-Saving King for Fans & Pumps, More Efficient with Sensorless Vector Control!

CP2000 Inverter: Energy-Saving Expert for Fans & Pumps

The CP2000 is a sensorless vector control inverter specifically engineered by for fans, pumps, HVAC systems, and similar applications. Built with energy efficiency as its core principle, this inverter utilizes intelligent Sensorless Vector Control (SVC) technology to enhance load torque response and optimize motor performance across various variable torque load scenarios.

Equipped with a 3-segment V/F power curve, the CP2000 automatically adjusts input voltage based on load changes, delivering significant energy savings of 15%-30% compared to standard inverters. Additional features like FLYING START, automatic acceleration/deceleration, restart after momentary power failure, and motor parameter AUTO-TUNING provide reliable protection and efficient energy-saving solutions for both routine operations and emergency situations.

Key Features & Technical Advantages

Advanced Control Technology

Sensorless Vector Control + 3-Segment V/F Power Curve: Delivers over 150% starting torque at 0.5Hz, perfectly adapting to variable torque loads like fans and pumps
Dual Motor Compatibility: Supports both Induction Motor (IM) and Permanent Magnet (PM) Motor control with ±5% torque accuracy
Motor AUTO-TUNING: Automatically detects motor characteristics and matches optimal operating parameters

Integrated Intelligent Functions

Built-in 10K-Step PLC: Integrated logic controller supports distributed control and independent operation
Perpetual Calendar + Fire Mode: Precise scheduling capabilities and uninterrupted operation during emergencies
Intelligent Multi-Pump Control: Supports linkage of up to 8 motors with automatic load balancing

Communication & Expansion Capabilities

Rich Communication Protocols: Built-in Modbus and BACnet MS/TP with optional PROFINET, EtherNet-IP, CANopen cards
Modular Design: Plug-and-play accessory replacement and function expansion

Environmental Durability & Compliance

Strong Environmental Resistance: PCB coating design protects against dust, moisture, and corrosion
Global Safety Certifications: Compliant with CE, UL, and cUL standards
Comprehensive Protection Functions: Multiple protections including overcurrent, overload, overvoltage, and motor phase loss

Core Specifications

Parameter Category	Specific Parameter Item	Parameter Details
Basic Control Parameters	Control Mode	V/F Control, SVC (Sensorless Vector Control), PM Motor Control
Basic Control Parameters	Starting Torque	≥150% at 0.5Hz
Basic Control Parameters	Torque Specifications	Light load: Max 130% torque current General load: Max 160% torque current, ±5% accuracy 120% torque sustainable for 60s; 160% torque sustainable for 3s
Basic Control Parameters	Power Range	0.7kW - 630kW (1HP - 850HP)
Input Parameters	Input Voltage Rating	Three-phase 220V, 380-480V, 690V (model dependent)
Output Parameters	Output Frequency Range	0.1 - 400Hz
Built-in Function Modules	PLC Function	Integrated 10K-step Delta PLC logic controller
Communication Parameters	Built-in Protocols	Modbus, BACnet MS/TP

Product Models

Model	Rated Power	Input Voltage	Rated Output Current	Additional Information
VFD007CP43A-21	0.75kW	3-Phase 460V	3A	Dimensions: 130250170mm
VFD015CP43B-21	1.5kW	3-Phase 460V	3.7A	Suitable for small pumps
VFD022CP43B-21	2.2kW	3-Phase 460V	5A	Commonly used in overseas small fans and fresh air systems
VFD037CP43B-21	3.7kW	3-Phase 460V	7.5A	Dimensions: 130250170mm
VFD075CP43B-21	7.5kW	3-Phase 460V	14A	Suitable for small and medium commercial air conditioning water circulation systems
VFD150CP43B-21	15kW	3-Phase 460V	30A	Dimensions: 190320190mm
VFD185CP43B-21	18.5kW	3-Phase 460V	36A	Dimensions: 190320190mm
VFD450CP43S-21	45kW	3-Phase 460V	91A	Dimensions: 330688275mm
VFD1100CP43A-21	110kW	3-Phase 460V	220A	Dimensions: 370715.8300mm, Weight: 66kg
VFD3150CP43C-21	315kW	3-Phase 460V	616A	Dimensions: 7001745404mm, Weight: 263kg

Application Areas

HVAC Systems: Central air conditioning fans, fresh air systems, air conditioning water circulation pumps
Water Treatment Industry: Tap water booster pumps, sewage treatment aeration pumps, circulating water pumps
General Machinery: Workshop ventilation fans, boiler induced draft fans, cooling tower fans
Construction Industry: Fire pumps, drainage pumps, booster fans
Light Industry: Cooling pumps in food processing, fans supporting packaging machinery

Frequently Asked Questions

What type of load is the CP2000 Series most suitable for?

It's best for variable torque loads like fans and pumps. The 3-segment V/F power curve automatically adjusts voltage according to load changes, offering better energy-saving effects than ordinary inverters and more stable daily operation.

Can I use it without a motor parameter manual?

Absolutely! It has a motor parameter AUTO-TUNING function. After power-on, it will automatically detect and match motor parameters—no need to set them manually one by one, making operation very simple.

Can the equipment restart automatically after a sudden power failure?

Yes, it comes with a restart function after momentary power failure. It will automatically resume the previous operating state when power is restored, no manual restart required—perfect for unattended scenarios.

Can the CP2000 adapt to motors with different voltages?

It supports multiple input voltages: single-phase 220V, three-phase 220V, three-phase 380-480V (depending on the model). As long as the motor's rated voltage matches the inverter, it can be used normally with strong compatibility.

What should I do if an overload alarm occurs during operation?

First, check if the load exceeds the motor's rated power or if the pipeline/air duct is blocked. If it's occasional overload, you can appropriately adjust the inverter's overload protection parameters. If overload occurs frequently, it's recommended to replace it with a model with higher power.
