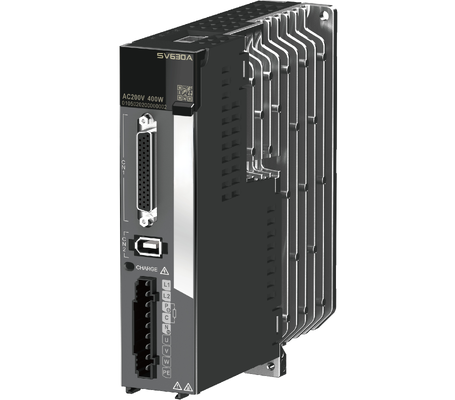

SV630 Economic Servo Drive Motor 18bit Precision & EtherCAT Support

Name: SV630 Economic Servo Drive Motor 18bit Precision & EtherCAT Support
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: SV630
Price: 130.00 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: CE 、EMC、LVD、RoHS、UL (cUL)

Model Number: SV630

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $90- $170

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            SV630 Economic Servo Drive Motor, Servo Drive Motor 18bit, EtherCAT Servo Drive Motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

SV630 Economic Servo Drive Motor 18bit Precision & EtherCAT Support

SV630 Economic Servo Drive - 18bit Precision & EtherCAT Support

Developed by Inovance Technology, the SV630 series servo drives are high-performance AC servo products tailored for small to medium power applications. Covering a power range of 0.05kW to 7.5kW, they feature Ethernet communication interfaces and support multiple protocols including EtherCAT, Modbus, CANopen, and CANlink. With compatible communication interfaces, these drives enable networked operation of multiple units when paired with upper-level controllers, delivering flexible and reliable motion control for industrial automation scenarios.

Key Product Features

0.05kW-7.5kW small-to-medium power range
18-bit high-precision positioning
Multi-protocol support: EtherCAT, Modbus, CANopen, CANlink
Ethernet communication interface for networked operation
Factory-direct cost-effective solution

Product Highlights

High precision + multi-protocol compatibility at an economic price point
Plug-and-play networked operation for industrial automation scenarios
Seamless integration with CNC, robotics, and electronic manufacturing lines
No middleman markups, factory-direct supply for cost savings

Core Technical Specifications

Parameter Category	Parameter Item	Specification	Remarks
Basic Specifications	Power Range	0.05kW - 7.5kW	Suitable for small and medium power industrial scenarios
Basic Specifications	Supply Voltage	Single/Three-phase 220VAC; Three-phase 380VAC	Compatible with 50/60Hz frequency
Basic Specifications	Matching Motor	MS1 Series 18-bit Absolute Encoder Motor	Matching motors of corresponding power range
Performance Parameters	Encoder	18-bit Absolute Encoder	262144 pulses per revolution, power-off position memory
Performance Parameters	Positioning Accuracy	4.94 Arc Seconds	Meets micron-level positioning requirements
Performance Parameters	Speed Loop Bandwidth	2kHz	Fast command following, short settling time
Performance Parameters	Current Loop Bandwidth	4kHz	Fast dynamic response, strong anti-interference ability
Performance Parameters	Control Modes	Position/Speed/Torque	Adapts to control needs of different working conditions
Electrical Parameters	Overload Capacity	3x Rated Current (Short-term)	Adapts to instantaneous load fluctuations
Electrical Parameters	Pulse Input	Up to 500kHz	Suitable for high-speed pulse control scenarios
Communication Parameters	Communication Protocols	EtherCAT, Modbus, CANopen, CANlink	Multi-protocol compatibility, supports networking
Communication Parameters	Communication Interfaces	Ethernet, RS232, RS485	Adapts to different upper-computer connection needs
Communication Parameters	EtherCAT Synchronization Error	±20ns	High multi-axis synchronization accuracy
Functional Features	Control Functions	Stiffness Table Setting, Inertia Identification, Vibration Suppression	Simplifies commissioning, improves operation stability
Functional Features	Protection Class	IP20	Adapts to industrial on-site environment
Functional Features	Warranty Period	12 Months	Global warranty, authorized service points in major regions

SV630 Series Servo Drives & Matching Motors

Power Range	Drive Model	Drive Type	Matching Motor Model (Inovance MS1H Series)	Motor Feature
100W (0.1kW)	SV630PS1R6I	Pulse Type	MS1H1-10B30CB-T330Z	Without Brake
100W (0.1kW)	SV630NS1R6I	EtherCAT Bus Type	MS1H1-10B30CB-T332Z	With Brake
200W (0.2kW)	-	-	MS1H4-20B30CB-T331R	Without Brake
200W (0.2kW)	-	-	MS1H4-20B30CB-T334R	With Brake
400W (0.4kW)	SV630PS2R8I	Pulse Type	MS1H4-40B30CB-T331R	Without Brake
400W (0.4kW)	SV630NS2R8I	EtherCAT Bus Type	MS1H4-40B30CB-T334R	With Brake
750W (0.75kW)	SV630PS5R5I	Pulse Type	MS1H4-75B30CB-T331R	Without Brake
750W (0.75kW)	SV630NS5R5I	EtherCAT Bus Type	MS1H4-75B30CB-T334R	With Brake
1000W (1.0kW)	SV630PS7R6I	Pulse Type	MS1H4-10C30CB-T331R	Without Brake
1000W (1.0kW)	SV630NS7R6I	EtherCAT Bus Type	MS1H4-10C30CB-T334R	With Brake
850W (0.85kW)	SV630PT3R5I/SV630NT3R5I	Pulse Type/Bus Type	MS1H4-85B30CB-T331R	Without Brake (Standard)
1300W (1.3kW)	SV630PT5R4I/SV630NT5R4I	Pulse Type/Bus Type	MS1H4-13C30CB-T331R	Without Brake (Standard)
1800W (1.8kW)	SV630PT8R4I/SV630NT8R4I	Pulse Type/Bus Type	MS1H4-18C30CB-T331R	Without Brake (Standard)
2900W (2.9kW)	SV630PT012I/SV630NT012I	Pulse Type/Bus Type	MS1H4-29C30CB-T331R	Without Brake (Standard)

Application Scenarios & Advantages

CNC Machining

18-bit precision for micron-level cutting + multi-protocol CNC integration, budget-friendly solution.

Packaging Lines

Multi-axis network sync via Ethernet, fast labeling/filling operations, low upgrade cost.

Small Robots

EtherCAT/CANopen low latency, better arm response, reduces robot deployment cost.

Electronic Assembly

0.05-7.5kW wide power range for PCB placement, quick setup boosts production efficiency.

Textile Machinery

Stable tension control for winding, multi-drive sync ensures fabric quality, economic operation.

Frequently Asked Questions

Q: Can the SV630 work with my existing CNC system?

A: Yes. It supports EtherCAT/Modbus/CANopen, compatible with most mainstream CNC controllers on the market.

Q: What's the max power this series can handle?

A: The SV630 covers 0.05kW to 7.5kW, perfect for small-to-medium power industrial applications.

Q: Do I need special software to set up the SV630?

A: No. It has a user-friendly built-in setup wizard, no complex programming required for basic operations.

Q: Is the SV630 suitable for high-precision tasks?

A: Absolutely. 18-bit positioning precision meets the needs of micron-level cutting, assembly and testing.

Q: Can multiple SV630 drives be connected in a network?

A: Yes. Ethernet interface enables multi-drive networked operation, ideal for synchronized production lines.

Q: How does the SV630 compare to premium brands like ABB or Lenze in cost?

A: It offers similar core performance but at 30-40% lower cost, a great budget option for small factories.

Q: Does the SV630 come with a warranty for overseas use?

A: Yes. We provide a 12-month global warranty, with local authorized service partners in major regions.

Q: What's the delivery time for bulk orders?

A: In-stock items ship within 3 working days; bulk custom orders take 2-4 weeks, door-to-door delivery available.
