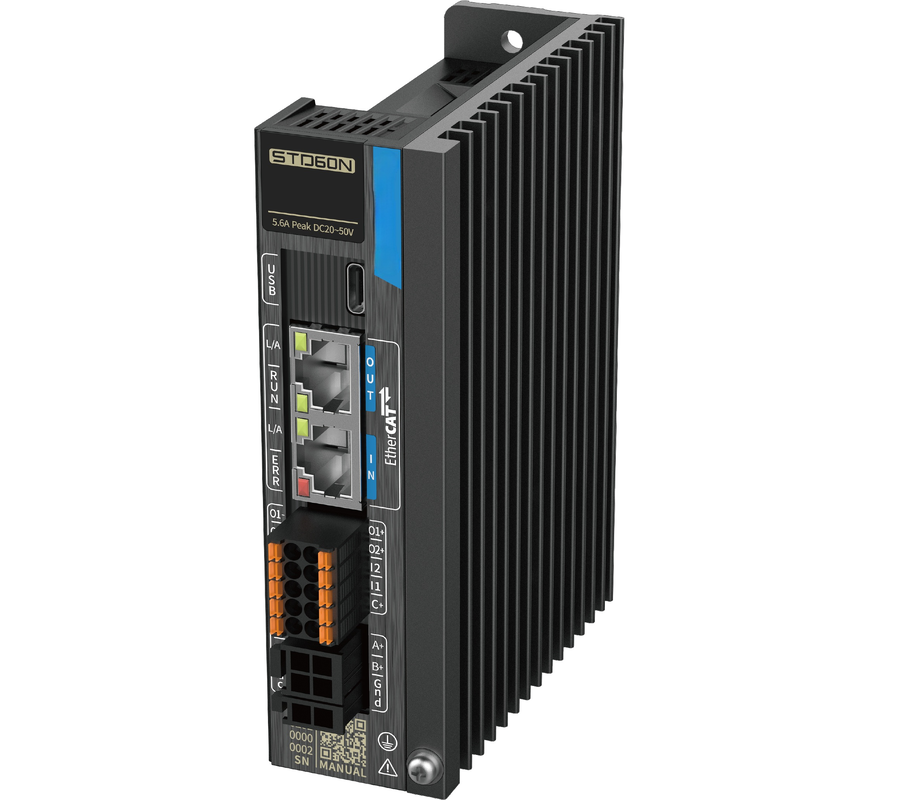

Multi Mode STD60 Automation Direct Stepper Motor For Positioning Homing Speed Control

Name: Multi Mode STD60 Automation Direct Stepper Motor For Positioning Homing Speed Control
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: STD60N55R6I、STD60N88R2I
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: CE、IEC

Model Number: STD60N55R6I、STD60N88R2I

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $88 - $180

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            STD60 Automation Direct Stepper Motor, Multi Mode STD60 Stepper Motor, Positioning Direct Stepper Motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Multi Mode STD60 Automation Direct Stepper Motor For Positioning Homing Speed Control

Multi-Mode Control | STD60 Stepper Driver for Positioning/Homing/Speed Control

Multi-Mode Control |STD60 Stepper Driver

The STD60N series stepper driver is a universal bus-type stepper driver independently developed by Inovance Technology, featuring low heat generation, stable operation, high acceleration capability and Type-C debugging support.

With an output current range of 0A~8.2A, this series supports the standard CAT communication protocol. Equipped with the corresponding communication interface, it can realize networked operation of multiple stepper drivers when paired with a host computer. It integrates the latest process segment function and comes with a multi-functional position mode that combines homing, fixed-speed control and positioning control. Meanwhile, this mode does not occupy the axis count of the host computer.

Product Superiority

Low Heat Emission & Stable Operation - Minimizes thermal loss during long-time high-load operation, ensuring consistent performance and extending equipment service life, ideal for continuous industrial production scenarios.
High Acceleration Capability - Delivers rapid response to speed adjustment commands, supporting fast start-stop and position switching, which effectively improves the operational efficiency of automated production lines.
Convenient Type-C Debugging - Enables quick parameter configuration, fault diagnosis and firmware upgrades via Type-C interface, reducing debugging time and maintenance costs for on-site technicians.
Flexible Networked Operation - Supports standard CAT communication protocol; multiple drivers can be connected to the host computer for synchronous control, realizing multi-axis coordinated motion without additional complex wiring.
Integrated Multi-functional Position Mode - Combines homing, fixed-speed control and positioning control in one mode, which simplifies system programming and does not occupy the host computer's axis count, saving system resource costs.
Wide Output Current Range (0A~8.2A) - Matches with various types of stepper motors, meeting the power requirements of different industrial equipment such as robotics, CNC machines and semiconductor handling devices.

Core Technical Parameters

Parameter Category	Parameter Item	Specification Value
Basic Features	Product Type	Universal Bus-type Stepper Driver
Basic Features	Supported Protocol	CoE Protocol
Electrical Parameters	Output Current Range	0A ~ 8.2A
Electrical Parameters	Control Power Supply Voltage	DC 24V ±10%
Electrical Parameters	Main Power Supply Voltage	AC 110V/220V ±15%
Control Functions	Operation Modes	Position Mode (Integrated Homing/Fixed Speed/Positioning), Speed Mode
Control Functions	Debugging Interface	Type-C (Supports Parameter Configuration, Fault Diagnosis, Firmware Upgrade)
Control Functions	Host Computer Axis Resource Occupancy	No Axis Occupancy in Position Mode
Networking Capability	Maximum Number of Connections per Bus	32 Units (Expandable via Switch)
Environmental Parameters	Operating Temperature Range	-10℃ ~ +50℃
Environmental Parameters	Storage Temperature Range	-20℃ ~ +65℃
Environmental Parameters	Relative Humidity	5% ~ 95% RH (No Condensation)
Warranty	Global Standard Warranty Period	2 Years

Overseas Available Models & Matching Motor Models

Overseas Available Driver Model	Input Voltage Range	Maximum Output Current	Matching Stepper Motor Model	Motor Frame Size	Motor Holding Torque
STD60N55R6I	DC 20~50V	5.6A	MHS1A42-15B45A	42mm	0.45N*m
			MHS1A42-25B56A	42mm	0.56N*m
			MHS1A42-25B78A	42mm	0.78N*m
			MHS1A57-40B13B	57mm	1.3N*m
			MHS1A57-40B23B	57mm	2.3N*m
STD60N88R2I	DC 20~80V	8.2A	MHS1A57-50B23B	57mm	2.3N*m
			MHS1A86-60B45B	86mm	4.5N*m
			MHS1A86-60B85B	86mm	8.5N*m
			MHS1A86-60B85B-SJ-D14	86mm	8.5N*m
			MHS1A86-60B102B	86mm	10.2N*m

Product Application Fields

Precision positioning for CNC milling & engraving machines
Multi-axis coordination for industrial robot arms & palletizers
Stable motion control for professional 3D printing equipment
High-reliability operation for semiconductor wafer handlers
Smooth precision drives for medical diagnostic & sample systems
Fast positioning for automated packaging & labeling lines
Tension synchronization for textile looms & printing presses
Accurate motion for electronic PCB drilling & component placers

Frequently Asked Questions

Q1: Can the STD60N driver be connected to third-party CAT masters?

A: Yes. It fully complies with the CoE protocol and is compatible with mainstream masters like Beckhoff, Siemens, and Omron. No custom protocol development is required.

Q2: What is the maximum number of STD60N drivers that can be networked in one system?

A: Up to 32 drivers can be connected in a single EtherCAT bus segment. For larger systems, use EtherCAT switches to extend the network without affecting synchronization accuracy.

Q3: How to solve the problem of motor overheating during long-time operation?

A: 1. Reduce the output current to the motor's rated value (do not exceed it); 2. Enable the driver's auto-current reduction function; 3. Ensure good ventilation around the driver and motor.

Q4: Does the STD60N support Type-C offline debugging without a host computer?

A: Yes. Connect a laptop via Type-C cable, use the official configuration software to set parameters, and save them to the driver. The driver can run independently after disconnecting the cable.

Q5: Can the STD60N's position mode really save the host computer's axis resources?

A: Absolutely. Its built-in position mode integrates homing, fixed-speed, and positioning functions. The host computer only needs to send trigger commands, not real-time motion control signals, which frees up axis count for other devices.

Q6: What is the ambient temperature range for the STD60N driver?

A: It works stably in the range of -10 °C to +50°C. For high-temperature environments (above 50°C), derate the output current by 10% for every 5°C increase.

Q7: Is a separate power supply needed for the STD60N's control circuit and power circuit?

A: It is not mandatory, but recommended. Separating the 24V control power and 220V AC power can avoid electromagnetic interference and improve system stability, especially for precision equipment.

Q8: How long is the warranty period for the STD60N driver?

A: The global standard warranty is 2 years.
