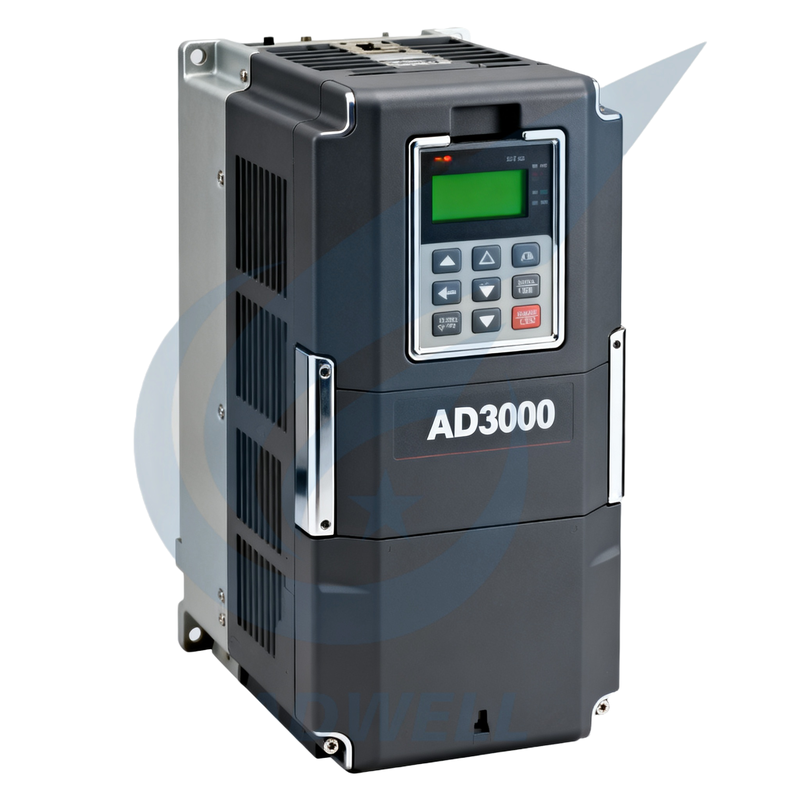

AD3000 Series Low-Voltage Inverter High-power Universal Frequency Converter Inverter

This issue is mainly caused by mismatched torque response parameters or improper PWM frequency settings. First, switch the control mode from "FOC" to "Vector V/F"--it balances torque precision and stability, avoiding current spikes from overly sensitive FOC torque response. Then, increase the "torque rise time" parameter (from the default 0.1s to 0.3-0.5s) to suppress sudden current increases during load changes. Additionally, adjust the PWM switching frequency to 4-6kHz (up from the default 1.5-2kHz) to reduce current harmonics. If the material viscosity fluctuates greatly, enable the "load fluctuation suppression" function to dynamically adjust torque output.

The key causes are insufficient heat dissipation efficiency or improper temperature protection parameters. First, check if the air inlet/outlet of the inverter is blocked by dust--clean the filter and ensure a 30cm or more ventilation gap around the inverter. Then, verify the "overtemperature protection threshold" (default is usually 85°C); in high-temperature workshops, appropriately adjust it to 90°C (do not exceed 95°C to avoid component damage). If the issue persists, check if the cooling fan speed is abnormal (aging fans may reduce airflow) and replace it if necessary. Additionally, apply heat-resistant insulation materials to the inverter's power module to reduce the impact of ambient temperature.

Synchronization deviation stems from improper master-slave control configuration or inconsistent parameter settings. First, set one inverter as the "master" (speed reference source) and others as "slaves" (torque follow mode) instead of independent control. Then, adjust the slave's "synchronization response gain" to 1.2-1.5 times the default value to reduce torque lag. Enable "encoder feedback synchronization" (if equipped) to improve speed accuracy to ±0.1%. Additionally, check the communication line between master and slave inverters--use shielded cables and ground the shield layer to avoid interference affecting synchronization signals. Finally, ensure all inverters use the same firmware version to prevent compatibility issues.

The main issues lie in communication parameter mismatches or permission restrictions. First, confirm the inverter's IP address, subnet mask, and gateway are in the same network segment as the central control system, and no IP conflict exists. Then, check the Modbus TCP/IP "slave address" (default is usually 1) and "port number" (default 502) to ensure they match the central control system's configuration. Next, verify the "communication permission" in the inverter--enable "read-write permission" instead of "read-only". If the connection still fails, disable the inverter's "EMC interference suppression" temporarily (restore it after testing) to rule out electromagnetic interference. Finally, check if the network cable is damaged or loosely connected, and replace it with an industrial-grade shielded cable if necessary.

Low-speed instability is related to insufficient low-frequency torque or improper filter settings. First, increase the "low-frequency torque compensation" parameter--gradually adjust it from 5% to 15% (avoid overcompensation to prevent motor overheating). Then, switch the "V/F curve" to "custom mode" and optimize the curve slope in the 5-10Hz range to enhance speed stability. Enable the "speed feedback filter" function and set the filter time constant to 0.2-0.5s to suppress speed fluctuations caused by sensor noise. Additionally, check the motor's bearing condition--worn bearings can cause mechanical jitter, which may be mistaken for inverter issues. If the motor is old, perform insulation testing and maintenance to ensure stable torque output at low speeds.
