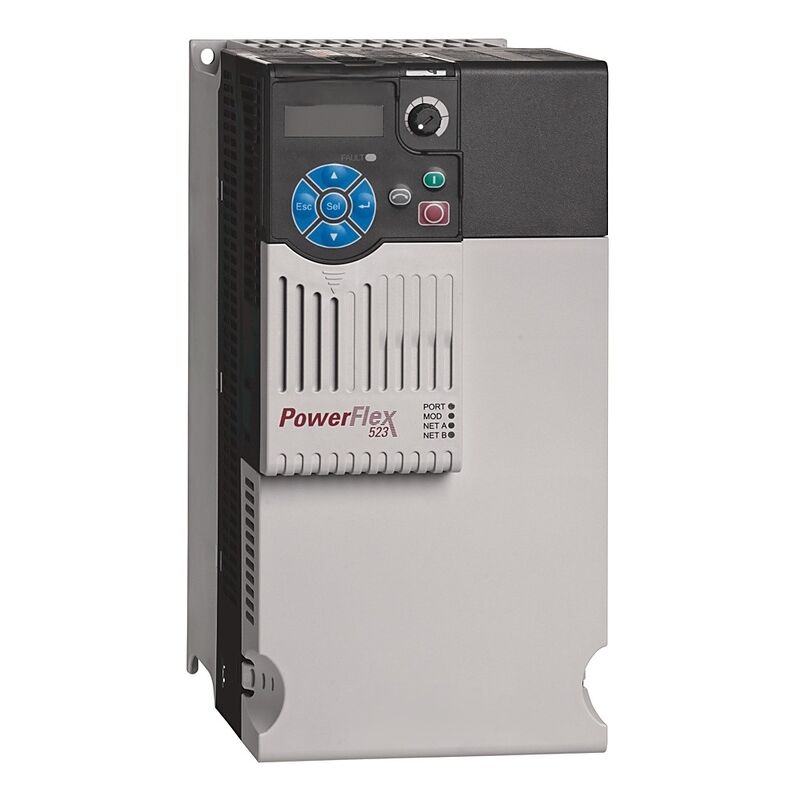

PowerFlex 520 VFD | Compact Size Conveyor Packaging Built-in Ethernet

Name: PowerFlex 520 VFD | Compact Size Conveyor Packaging Built-in Ethernet
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: PowerFlex 520
Price: 2,350.00 USD
Availability: InStock

Product Details

Place of Origin: American

Certification: CE、UKCA、UL / cUL、RCM、KC、ATEX、TUV、RoHS、GOST-R、EAC

Model Number: PowerFlex 520

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $200 – $4500

Delivery Time: 3-5Workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:

Product Name:	Frequency Converter Inverter	Pakage:	Original Pakage
Quality Guarantee:	Original Manufacturer's Warranty	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Product Name:	Frequency Converter Inverter
Pakage:	Original Pakage
Quality Guarantee:	Original Manufacturer's Warranty
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

PowerFlex 520 VFD | Compact Size Conveyor Packaging Built-in Ethernet

The PowerFlex 520 VFD is designed for space-constrained OEM applications like conveyors and packaging machinery. Its compact size lets you fit more drives into smaller cabinets, reducing enclosure footprint and cooling requirements. With built-in Ethernet (dual ports on the 525 model), you get native EtherNet/IP connectivity without an extra communication card—saving wiring, simplifying integration with Logix controllers, and enabling device-level ring (DLR) topologies for network redundancy.

PowerFlex 520 Series - Model & Core Parameter Table

Series	Model Number	Voltage	Rated Power (kW/HP)	Output Current (A)	Main Control	Communication	Safety	Certifications
523	25A‑D010N104	380-480V	1.5 / 2	3.7	V/f, SVC	Modbus RTU	No STO	CE, UL, cULus, RCM
523	25A‑D013N104	380-480V	2.2 / 3	4.9	V/f, SVC	Modbus RTU	No STO	CE, UL, cULus, RCM
523	25A‑D017N104	380-480V	3.7 / 5	6.6	V/f, SVC	Modbus RTU	No STO	CE, UL, cULus, RCM
523	25A‑D024N104	380-480V	5.5 / 7.5	9.6	V/f, SVC	Modbus RTU	CE, UL, cULus, RCM
523	25A‑D032N104	380-480V	7.5 / 10	12.6	V/f, SVC	Modbus RTU	No STO	CE, UL, cULus, RCM
523	25A‑D045N104	380-480V	11 / 15	17.8	V/f, SVC	Modbus RTU	No STO	CE, UL, cULus, RCM
523	25A‑E019N104	380-480V	15 / 20	19.2	V/f, SVC	Modbus RTU	No STO	CE, UL, cULus, RCM
523	25A‑E027N104	380-480V	18.5 / 25	27.0	V/f, SVC	Modbus RTU	No STO	CE, UL, cULus, RCM
523	25A‑E032N104	380-480V	22 / 30	32.0	V/f, SVC	Modbus RTU	No STO	CE, UL, cULus, RCM
525	25B‑D2P3N104	380-480V	0.75 / 1	2.3	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM
525	25B‑D4P0N104	380-480V	1.5 / 2	4.0	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM
525	25B‑D6P0N104	380-480V	2.2 / 3	6.0	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM
525	25B‑D9P0N104	380-480V	4.0 / 5	9.0	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM
525	25B‑D012N104	380-480V	5.5 / 7.5	12.0	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM
525	25B‑D017N104	380-480V	7.5 / 10	17.0	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM
525	25B‑D024N104	380-480V	11 / 15	24.0	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM
525	25B‑E019N104	380-480V	15 / 20	19.0	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM
525	25B‑E032N104	380-480V	22 / 30	32.0	V/f, SVC, PM	EtherNet/IP, Modbus TCP/RTU	STO (SIL2/PLd)	CE, UL, cULus, RCM

Application Scenarios for PowerFlex 520 Series AC Drives

Main Application Scenarios

Energy-saving retrofits for fans, pumps and other general-purpose loads
Small to medium-sized industrial systems in factories, workshops and processing facilities
Global export-oriented equipment with UL, CE and other international certifications
Compact and reliable drive solutions for various OEM machinery worldwide

PowerFlex 523 (Economy Type, 25A Series)

Small conveyors, mixers, fans and pumps with basic speed control requirements
General-purpose machinery such as small compressors and ventilation equipment
Simple OEM machines and auxiliary machine tools with cost-sensitive demands
Light industrial equipment with only basic start-stop and speed regulation functions

PowerFlex 525 (High Performance Type, 25B Series)

Precision conveyors, small automated production lines and machine tools requiring stable control
Networked equipment and intelligent systems supporting EtherNet/IP and Modbus TCP communication
Machinery for European and American markets with safety standards, thanks to built-in STO function
Permanent magnet motor applications, small lifting and material handling equipment
Food & beverage, packaging, water treatment and light industrial automation systems

Frequently Asked Questions

1. What's the real difference between 523 and 525 that overseas customers often mix up?

523 is cheaper, only has Modbus, no safety functions; 525 has built-in Ethernet port and STO, which is basically required for European and American projects.

2. What to do if it reports undervoltage/overvoltage as soon as it's powered on?

Mostly due to unstable overseas power grid, phase loss, or wrong voltage selection (connecting 220V drive to 380V). First measure the input voltage.

3. What to do if it reports overcurrent during operation or trips immediately after startup?

Motor cable is broken/short-circuited, motor is leaking, or acceleration is too fast, parameters are mismatched. First test the drive without load to troubleshoot.

4. Common reasons for failing to connect EtherNet/IP to PLC?

IP is not in the same network segment, network cable is faulty, communication is not enabled on the drive, or old firmware is incompatible.

5. Overseas customers insist on STO safety function, how to choose 520 series?

Only 525 has built-in STO; 523 doesn't. For exports to EU and North America, choose 525 directly.

6. Why does the motor overheat, vibrate or make loud noise?

Carrier frequency is too low, motor parameters are not set correctly, or long cable causes strong interference. Properly increase the carrier frequency.

7. What to note after factory reset?

Factory reset on 520 series will clear all parameters. Be sure to back up parameters before commissioning, otherwise you have to reset them all.

8. Overseas customers only understand HP, not kW. How to handle it?

Convert directly by 1HP ≈ 0.75kW, and mark both kW and HP on nameplates and quotes.

9. What certifications are needed for customs clearance and export to EU and North America?

CE and UL/cULus certifications are a must; without them, customs clearance and acceptance will fail.

10. Can 520 series be used for hoisting and lifting equipment?

Not recommended. 520 is a light-duty type without forced braking capability, which is prone to slipping, and overseas customers generally don't allow it.

11. Is it easy to repair overseas if it breaks down?

Small faults can be repaired on-site; if the module is burned, it's basically only replaceable with a new one. Spare parts for 520 are not as many as expected, so it's better to replace the whole drive directly.

12. What to note for long-distance wiring (over 50 meters)?

An output reactor must be added, otherwise it's easy to report faults and burn the drive. Long-distance wiring is common in overseas construction sites.
