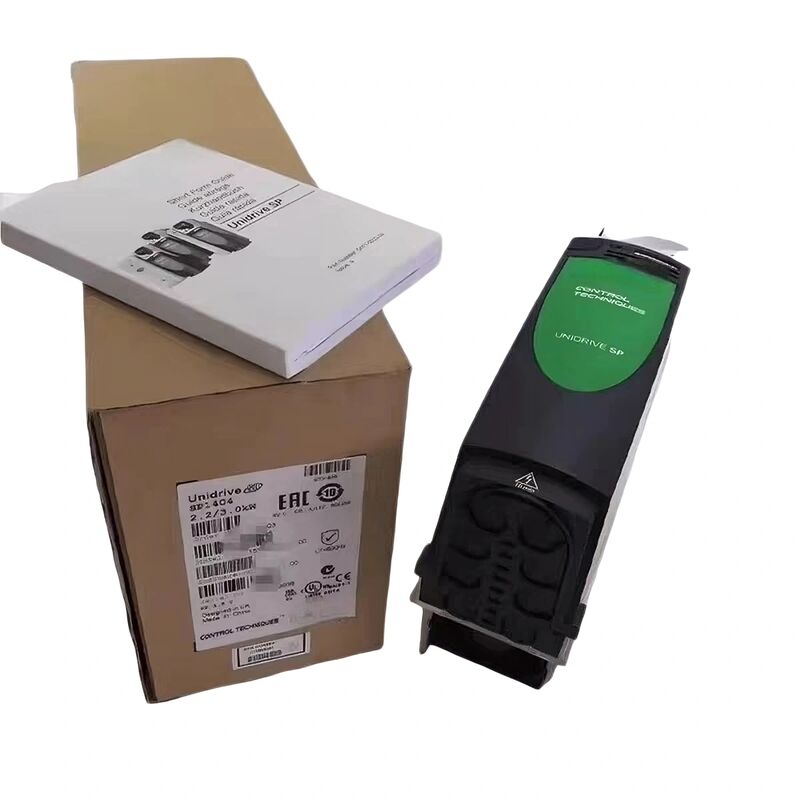

SP Frequency Converter Inverter 0.37-160kW Heavy Duty, Anti-Interference

Emerson SP series inverter (0.37-160kW) features heavy-duty performance and strong anti-interference, delivering stable, reliable speed control for industrial machinery while effectively preventing interference and overload trips.

Key Product Highlights

Wide power and voltage range, compatible with global 50/60Hz power grids

Multiple control modes in one drive, fast response with strong low-speed torque

Excellent overload capability, stable and reliable in heavy-duty applications

Supports mainstream fieldbuses, compatible with various PLCs

Standard STO safety function, meets international standards

Strong anti-interference performance, suitable for harsh industrial environments

Simple commissioning and maintenance, supports fast parameter copying

Certified with CE, UL and other international certifications for worldwide export

Full Model List & Parameters

200V Class (200~240V ±10%)

Model	Motor Rating (kW)	Cont. Output Current (A)	Frame Size
SP0201	0.37	1.6	SP0
SP0202	0.75	3.1	SP0
SP0203	1.1	4.3	SP0
SP0204	1.5	5.2	SP0
SP1201	1.1	5.2	SP1
SP1202	1.5	6.8	SP1
SP1203	2.2	9.6	SP1
SP1204	3.0	11.0	SP1
SP2201	4.0	15.6	SP2
SP2202	5.5	22.0	SP2
SP2203	7.5	28.0	SP2
SP3201	11	42.0	SP3
SP3202	15	54.0	SP3

400V Class (380~480V ±10%) — Mainstream

Model	Motor Rating (kW)	Cont. Output Current (A)	Frame Size
SP0401	0.37	1.1	SP0
SP0402	0.75	2.0	SP0
SP0403	1.1	2.8	SP0
SP0404	1.5	3.6	SP0
SP0405	2.2	5.0	SP0
SP1401	1.1	2.8	SP1
SP1402	1.5	3.8	SP1
SP1403	2.2	5.0	SP1
SP1404	3.0	6.9	SP1
SP1405	4.0	8.8	SP1
SP1406	5.5	11.0	SP1
SP2401	7.5	15.0	SP2
SP2402	11	21.0	SP2
SP2403	15	29.0	SP2
SP2404	18.5	34.0	SP2
SP3401	18.5	35.0	SP3
SP3402	22	43.0	SP3
SP3403	30	56.0	SP3
SP4401	37	68.0	SP4
SP4402	45	82.0	SP4
SP4403	55	100	SP4
SP5401	75	130	SP5
SP5402	90	155	SP5
SP6401	110	195	SP6
SP6402	132	235	SP6
SP6403	160	290	SP6

575V Class (500~575V ±10%)

Model	Motor Rating (kW)	Cont. Output Current (A)	Frame Size
SP3501	3.0	5.4	SP3
SP3502	4.0	6.1	SP3
SP3503	5.5	8.4	SP3
SP3504	7.5	11.0	SP3
SP3505	11	16.0	SP3
SP3506	15	22.0	SP3
SP3507	18.5	27.0	SP3

SPMD Modular (High Power) Series

Model	Motor Rating (kW)	Cont. Output Current (A)	Notes
SPMD1423	110	290	400V, dual module
SPMD1431	132	340	400V, dual module
SPMD1432	160	410	400V, dual module
SPMD1441	200	520	400V, triple module
SPMD1442	250	650	400V, triple module
SPMD1451	315	800	400V, multi-module
SPMD1452	400	1000	400V, multi-module
SPMD1461	500	1250	400V, multi-module
SPMD1462	630	1580	400V, multi-module
SPMD1471	800	2000	400V, multi-module
SPMD1472	1000	2500	400V, multi-module
SPMD1481	1200	3000	400V, multi-module
SPMD1482	1600	4000	400V, multi-module
SPMD1491	1900	4750	400V, multi-module

General Specifications (All Series)

Control Modes: V/F, Open-loop Vector, Closed-loop Vector, RFC (Rotor Flux Control), Servo Control

Output Frequency: 0-3000Hz (open loop); up to 40000rpm (closed loop)

Overload Capacity: 150% for 60s, 200% for 2s

Communication: Modbus RTU (standard); Profinet, EtherNet/IP, CANopen (optional)

Protection: Overcurrent, Overvoltage, Overload, Overtemperature, STO (Safe Torque Off)

Ambient Temperature: -10°C to +50°C (operating); -20°C to +70°C (storage)

Application Fields

Printing & Packaging Machinery

Textile Machinery

Plastics & Rubber Machinery

Paper Machinery

Metalworking Machinery

Material Handling & Conveying Systems

Cranes, Hoists & Port Equipment

Mining Machinery

Oil & Gas Equipment

Marine & Offshore Applications

HVAC Systems

Water Treatment & Pumping Systems

Food & Beverage Processing

Timber & Woodworking Machinery

Test Rigs & Dynamometers

Stage & Entertainment Equipment

Machine Tools

General Industrial Motion Control

Frequently Asked Questions

Q: Trips overcurrent immediately when powered on?

A: Usually motor cable short-circuit, grounding issue or motor fault. Check cables and motor first.

Q: Trips overvoltage during deceleration?

A: High inertia load feeds back too much energy. Add a braking resistor or increase deceleration time.

Q: Motor vibrates and runs noisy?

A: Lower switching frequency, re-enter motor parameters, and avoid excessive torque gain.

Q: No communication or PLC control not responding?

A: Check baud rate, station ID and parity. Use shielded cable and route separately from power wires.

Q: Keypad blank, drive won't start?

A: Check input voltage for phase loss, loose terminals or blown internal fuse.

Q: Motor cannot reach rated speed?

A: Check if maximum frequency is limited, or motor rated frequency/speed is set incorrectly.

Q: Overload alarm under light load?

A: Wrong motor model, excessive torque boost, or poor cooling due to high ambient temperature.

Q: Can it directly replace old SK/DC series?

A: Yes if same power rating, but must re-wire and re-set parameters.

Q: Works with both 50Hz and 60Hz grids overseas?

A: Yes, as long as input voltage matches, no extra parameter changes needed.

Q: How to reset alarms quickly on site?

A: Press STOP + RESET on keypad, or power cycle the drive.

Q: Alarms randomly when connected to PLC?

A: Electrical interference. Separate communication and power cables, use ferrite cores and proper grounding.

Q: Can it drive servo or synchronous motors?

A: Yes, but requires encoder card for closed-loop vector control.
