LINOS F-Theta-Ronar Field Lens F=254mm 157x157mm 1064nm Fiber Laser Marking
-
Highlight
LINOS F-Theta-Ronar 1064nm Lens
,LINOS F-Theta-Ronar 157x157mm Lens
-
Model4401-288-000-20 (F=254)
-
Focal Length254 Mm
-
Wavelength1064 Nm
-
Scanning Field157 × 157 Mm
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginGermany
-
Brand NameLINOS
-
CertificationCE、RoHS、ISO
-
Model Number4401-261-000-21 4401-499-000-26
-
Minimum Order Quantity1
-
Price$2000 - $8000
-
Packaging DetailsOriginal
-
Delivery Time3-5Workdays
-
Payment TermsL/C,D/A,D/P,T/T

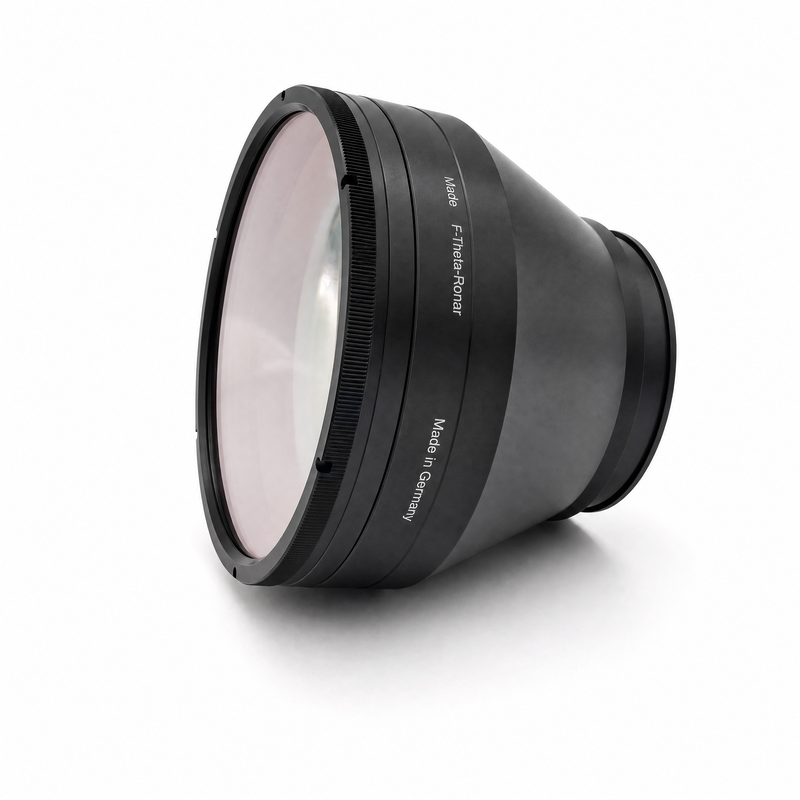

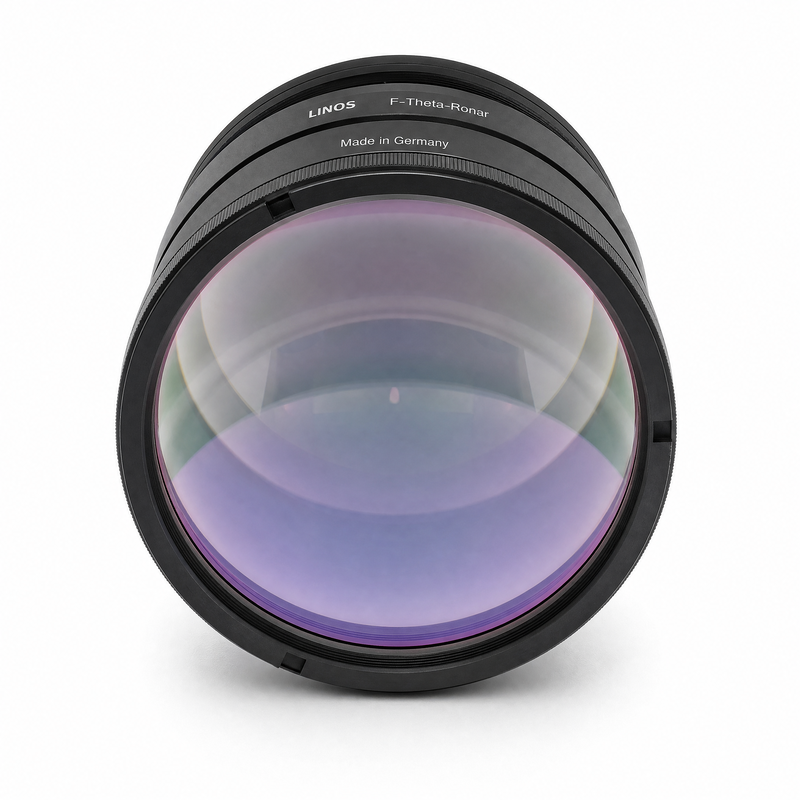

LINOS F-Theta-Ronar Field Lens F=254mm 157x157mm 1064nm Fiber Laser Marking
LINOS F-Theta-Ronar Field Lens F=254mm 157x157mm 1064nm Fiber Laser Marking
This F-Theta-Ronar series field lens from LINOS, Germany features a 254 mm focal length and 157 * 157 mm scanning field. Designed for fiber laser and Nd:YAG laser marking and engraving systems, this large-format all-round model delivers wide-field, low-distortion, high-uniformity scanning focus. The F=254 mm configuration is ideal for large-area marking applications including nameplates, full-sheet marking, and large workpieces. As a genuine German import with full traceability, it mounts directly to mainstream galvo scanners to form a complete scanning optical path.
Product Highlights
- Genuine German LINOS: Century-old optics brand from Goettingen, now part of Qioptiq/Excelitas Technologies
- Large Coverage: 254 mm focal length with 157 * 157 mm scanning field for marking bigger workpieces in one pass
- Low Distortion, High Uniformity: Field-wide focus consistency with no edge drift and even line quality
- 1064 nm Optimized Coatings: Matched to mainstream fiber lasers and Nd:YAG lasers
- Durable Build: Anodized aluminum housing for continuous workshop use
- Easy Integration: Standard mount, direct replacement for mainstream galvo marking systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | LINOS (Germany, Qioptiq/Excelitas Technologies) |
| Series | F-Theta-Ronar |
| Product Type | F-Theta Field Lens (Laser Scanning Focusing Lens) |
| Model | 4401-288-000-20 (F=254 specification) |
| Focal Length f | 254 mm |
| Scanning Field | 157 * 157 mm |
| Wavelength Range | 1064 nm (typical, per official datasheet) |
| Lens Construction | Multi-element optical glass |
| Housing Material | Anodized aluminum (black barrel) |
| Mount | Standard thread / flange |
| Origin | Germany |
Available Models
| Model | Focal Length | Scanning Field | Type |
|---|---|---|---|
| 4401-302-000-21 | F=100 | 62 * 62 mm | Standard |
| 4401-509-000-21 | F=100 | 46 * 46 mm | Standard |
| 4401-301-000-21 | F=160 | 99 * 99 mm | Standard |
| 4401-261-000-21 | F=163 | 115 * 115 mm | Standard |
| 4401-589-000-26 | F=163 | 66 * 66 mm | Standard |
| 4401-288-000-20 | F=254 | 157 * 157 mm | Standard (featured) |
| 4401-360-000-21 | F=330 | 217 * 217 mm | Standard |
| 4401-350-000-21 | F=420 | 291 * 291 mm | Standard |
| 4401-464-000-21 | Telecentric F=100 | 54 * 54 mm | Telecentric |
| 4401-561-000-26 | Telecentric F=100 | 43 * 43 mm | Telecentric |
| 4401-513-000-26 | Telecentric F=167 | 84 * 84 mm | Telecentric |
| 4401-289-000-20 | F=250 | 154 * 154 mm | 532 nm |
| 4401-499-000-26 | Fused Silica F=255 | 170 * 170 mm | Fused Silica |
| 4401-546-000-26 | Fused Silica F=340 | 205 * 205 mm | Fused Silica |
| 4401-508-000-26 | Fused Silica F=420 | 254 * 254 mm | Fused Silica |
Application Areas
- Large-Format Laser Marking: Metal/non-metal identification, nameplates, serial numbers
- Traceability Marking: QR codes, barcodes, anti-counterfeit codes in volume
- Laser Engraving: Molds, crafts, wood and leather on large surfaces
- Full-Sheet Marking: Large-area plate marking and cutting positioning
- Automotive / 3C Marking: Auto parts and electronic components
- Welding Focus: Large-field beam focusing in galvo welding systems
Frequently Asked Questions
Q: What scanning field does F=254 mm cover?
A: Typical 157 * 157 mm — ideal for large-format marking; confirm with the official datasheet.
Q: Which lasers and scanners does it pair with?
A: Suits 1064 nm fiber lasers and Nd:YAG lasers, and mainstream scanners such as SCANLAB basiCube / intelliSCAN.
Q: Standard F=254 vs Fused Silica F=255 (170 *170)?
A: Field sizes are close; fused silica optics handle higher power and thermal stability better, at a higher price. Choose the standard version for routine marking.
Q: Which models are available in this series?
A: 15 models from F=100 to F=420, including standard, telecentric, 532 nm and fused silica versions — see the model table above.
Q: How long do the coatings last?
A: With normal use and cleaning, coating life matches the machine; avoid contamination and direct laser damage.
Q: Warranty and lead time?
A: Genuine import with warranty per contract; technical support and lens inspection services available. Typical lead time 1-2 weeks; bulk orders can be pre-stocked.
