JENOPTIK JENar F-Theta Field Lens 125mm 1030-1080nm Fiber Laser Marking

JENOPTIK JENar F-Theta Field Lens 125mm 1030-1080nm Fiber Laser Marking

Products - Laser Scanning & Optics - Field Lenses
  • Highlight

    Field Lens 125mm

    ,

    1080nm Field Lens

  • Model
    JENar 017700 Series (F=125)
  • Focal Length
    125 Mm
  • Wavelength
    1030–1080 Nm
  • Product Type
    F-Theta Field Lens
  • Shipping Term
    International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
  • Freight Charge
    For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
  • Place of Origin
    Germany
  • Brand Name
    JENOPTIK
  • Certification
    CE、RoHS、ISO
  • Model Number
    F125-017700-003-26
  • Minimum Order Quantity
    1
  • Price
    $50000 - $80000
  • Packaging Details
    Original
  • Delivery Time
    3-5Workdays
  • Payment Terms
    L/C,D/A,D/P,T/T

JENOPTIK JENar F-Theta Field Lens 125mm 1030-1080nm Fiber Laser Marking

  • JENOPTIK JENar F-Theta Field Lens 125mm 1030-1080nm Fiber Laser Marking
Get Price Chat Now
JENOPTIK JENar F-Theta Field Lens 125mm 1030-1080nm Fiber Laser Marking

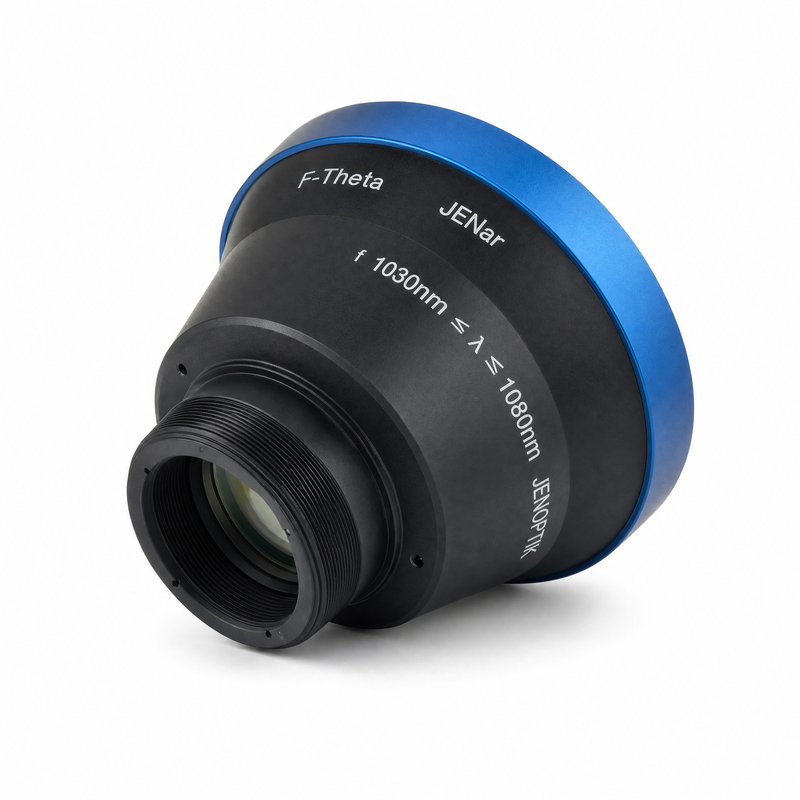

This is a JENar series F-Theta field lens (laser scanning focusing lens) from JENOPTIK, Germany, with a 125 mm focal length — a short-focal, high-precision model for fiber laser marking and engraving systems. The lens features a bright blue anodized aluminum front ring and a matte-black rear barrel, with multi-element high-performance optical glass optimized for 1030 nm - 1080 nm.

Within a small scanning field it delivers a very small focused spot and high energy density, ideal for fine text and precision graphics. A genuine German import with full traceability, it mounts directly to mainstream galvo scanners to form a complete scanning optical path.

Product Highlights
  • Genuine German JENOPTIK: World-leading optics company; proven JENar series quality.
  • Short-Focal Precision: F=125 mm, small spot and high energy density for fine marks.
  • Fiber Laser Optimized: 1030-1080 nm coated optics for mainstream fiber lasers.
  • Low Distortion: F-Theta design keeps field-wide focus consistency and linearity.
  • Durable Build: Anodized aluminum housing with optical glass elements.
  • Easy Integration: Standard mount, direct replacement.
Full Specifications & Parameters
BrandJENOPTIK (Germany)
SeriesJENar
Product TypeF-Theta Field Lens (Laser Scanning Focusing Lens)
ModelF=125-017700-003-26
Focal Length f125 mm
Wavelength Range1030 nm ≤ λ ≤ 1080 nm
Working FieldTypical ~70*70 mm class (per official datasheet)
Input BeamTypical for 10-14 mm galvo scanners (per datasheet)
Lens ConstructionMulti-element optical glass
Housing MaterialAnodized aluminum (blue front ring + black barrel)
MountStandard thread / flange
TransmissionHigh-transmission coatings (typical, per official data)
OriginGermany
Application Areas
  1. Small-Format High-Precision Marking: Electronics, jewelry, watch parts, small hardware.
  2. Precision Engraving: Fine patterns, mold textures, anti-counterfeit marks.
  3. Traceability Marking: Micro QR codes, serial numbers, barcodes.
  4. 3C Electronics: Phone internals, connectors, batteries.
  5. Medical Device Marking: Small instruments and consumables.
  6. R & D: Optical focusing scanning platforms.
Frequently Asked Questions
  • Q: How to choose between F=125 mm and F=100 mm?
    A: Both are short-focal precision models; F=125 offers a slightly larger field with a marginally larger spot. For parts up to ~60-80 mm, either works — choose by field requirement.
  • Q: Which lasers and scanners does it pair with?
    A: Suits 1030-1080 nm fiber lasers and SCANLAB basiCube / intelliSCAN class 10-14 mm scanners.
  • Q: How small can it mark?
    A: The short focal length produces a fine spot, supporting fine text and high-density QR marking; final resolution also depends on laser beam quality.
  • Q: Mounting standard?
    A: Standard thread/flange mount; most equivalent lenses are interchangeable. Send your barrel spec and we will confirm.
  • Q: Warranty and after-sales?
    A: Genuine import with warranty per contract; technical support and lens inspection services available.
  • Q: Lead time?
    A: German import; typical 2-4 weeks (depends on stock and logistics); bulk orders can be pre-stocked.
