JENOPTIK JENar F-Theta Field Lens 255mm 114x114 1030-1080nm Marking

JENOPTIK JENar F-Theta Field Lens 255mm 114x114 1030-1080nm Marking

Products - Laser Scanning & Optics - Field Lenses
  • Highlight

    JENOPTIK JENar F-Theta Field Lens

    ,

    Field Lens 255mm

  • Model
    JENar 017700 Series (F=255)
  • Focal Length
    255 Mm
  • Working Field
    114 × 114 Mm
  • Wavelength
    1030–1080 Nm
  • Shipping Term
    International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
  • Freight Charge
    For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
  • Place of Origin
    Germany
  • Brand Name
    JENOPTIK
  • Certification
    CE、RoHS、ISO
  • Model Number
    F255-017700-017-26 F255-017700-026-26
  • Minimum Order Quantity
    1
  • Price
    $1800 - $3500
  • Packaging Details
    Original
  • Delivery Time
    3-5Workdays
  • Payment Terms
    L/C,D/A,D/P,T/T

JENOPTIK JENar F-Theta Field Lens 255mm 114x114 1030-1080nm Marking

  • JENOPTIK JENar F-Theta Field Lens 255mm 114x114 1030-1080nm Marking
Get Price Chat Now
JENOPTIK JENar F-Theta Field Lens 255mm 114x114 1030-1080nm Marking

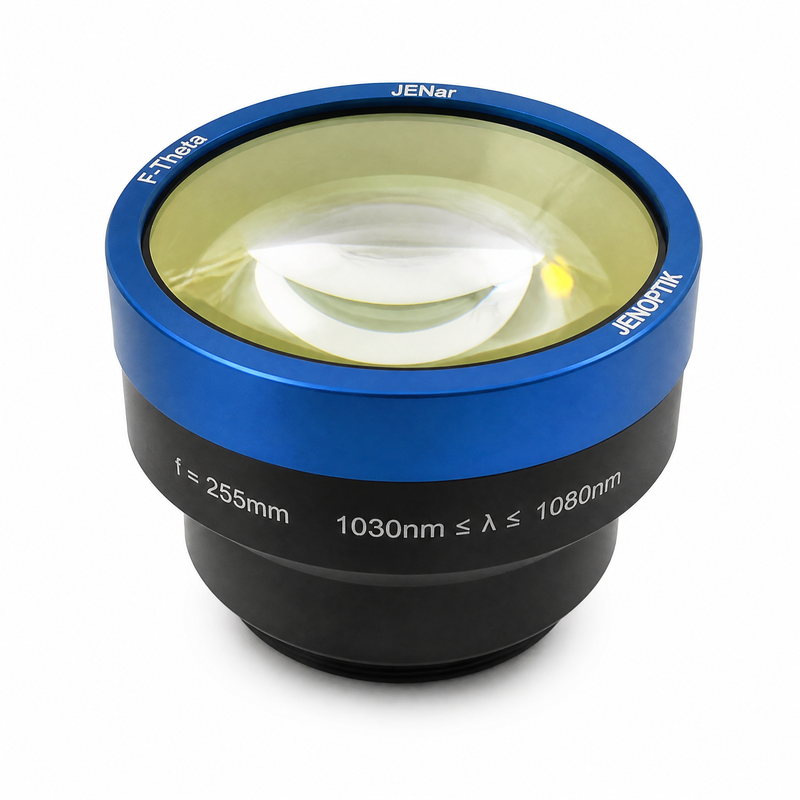

This JENar series F-Theta field lens (laser scanning focusing lens) from JENOPTIK, Germany, features a 255 mm focal length and 114*114 mm working field, serving as the general-purpose workhorse for fiber laser marking and engraving systems. The lens combines a bright blue anodized aluminum front ring with a matte-black rear barrel, utilizing multi-element high-performance optical glass to deliver low-distortion, high-uniformity focusing across the full field in the 1030 nm - 1080 nm range.

The F=255 mm configuration provides an excellent balance between field size and spot quality, designed to pair with 10-14 mm aperture scanners for marking various metal and non-metal materials. As a genuine German import with full traceability, it integrates seamlessly with SCANLAB galvo scanners.

Product Highlights
  • Genuine German JENOPTIK: World-leading photonics company; the JENar series represents an industry benchmark
  • Golden Mainstream Focal: F=255 mm + 114*114 mm field – the standard configuration for marking machines
  • Low Distortion, High Uniformity: Field-wide focus consistency with edge spot matching center performance
  • Fiber Laser Optimized: 1030-1080 nm coated optics designed for mainstream fiber lasers
  • Durable Build: Anodized aluminum housing ensures long-term industrial stability
  • Easy Integration: Standard mount enables direct pairing with mainstream scanners
Full Specifications & Parameters
Parameter Specification
Brand JENOPTIK (Germany)
Series JENar
Product Type F-Theta Field Lens (Laser Scanning Focusing Lens)
Model JENar 017700 series (F=255; confirm exact code with supplier)
Focal Length f 255 mm
Wavelength Range 1030 nm ≤ λ ≤ 1080 nm
Working Field 114 * 114 mm
Input Beam Typical for 10-14 mm galvo scanners (per datasheet)
Lens Construction Multi-element optical glass
Housing Material Anodized aluminum (blue front ring + black barrel)
Mount Standard thread / flange
Transmission High-transmission coatings (typical, per official data)
Origin Germany
Application Areas
  • General Laser Marking: Metal/non-metal identification, nameplates, serial numbers
  • Traceability Marking: QR codes, barcodes, anti-counterfeit codes
  • Laser Engraving: Molds, crafts, leather, wood
  • Fiber Laser Cutting: Mid-format thin-sheet cutting
  • Welding Focus: Beam focusing in galvo welding systems
  • Automotive / 3C Marking: Auto parts and electronic components
Frequently Asked Questions
Q: What is the actual marking field of F=255 mm?
A: This model covers 114*114 mm – the standard configuration of fiber marking machines; effective field varies with scanner aperture.
Q: Which lasers and scanners does it pair with?
A: Suits 1030-1080 nm fiber lasers and SCANLAB intelliSCAN / basiCube class 10-14 mm scanners.
Q: How long do the coatings last?
A: With normal use and cleaning, coating life matches the machine; avoid contamination and direct laser damage.
Q: Can it replace the lens in my existing marking machine?
A: It uses a standard mount; most equivalent F-Theta lenses are directly interchangeable. Send your current focal length and mount spec and we will confirm.
Q: Warranty and after-sales?
A: Genuine import with warranty per contract; technical support and lens inspection services available.
Q: Lead time?
A: German import; typical 1-2 weeks (depends on stock and logistics); bulk orders can be pre-stocked.
