SCANLAB intelliSCANse 10 UV Galvo Scanner Head 355nm 343nm Laser Marking
-
Highlight
intelliSCANse 10 355nm Galvo Scanner Head
,intelliSCANse 10 Marking Galvo Scanner Head
-
ModelIntelliSCANse 10
-
Aperture10 Mm
-
Wavelength355nm / 343nm (UV)
-
BrandSCANLAB (Germany)
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginGermany
-
Brand NameSCANLAB
-
CertificationCE、RoHS、ISO
-
Model NumberintelliSCANse 10
-
Minimum Order Quantity1
-
Price$6300 - $21000
-
Packaging DetailsOriginal
-
Delivery Time3-5Workdays
-
Payment TermsL/C,D/A,D/P,T/T
SCANLAB intelliSCANse 10 UV Galvo Scanner Head 355nm 343nm Laser Marking
SCANLAB intelliSCANse 10 UV Galvo Scanner Head 355nm 343nm Laser Marking

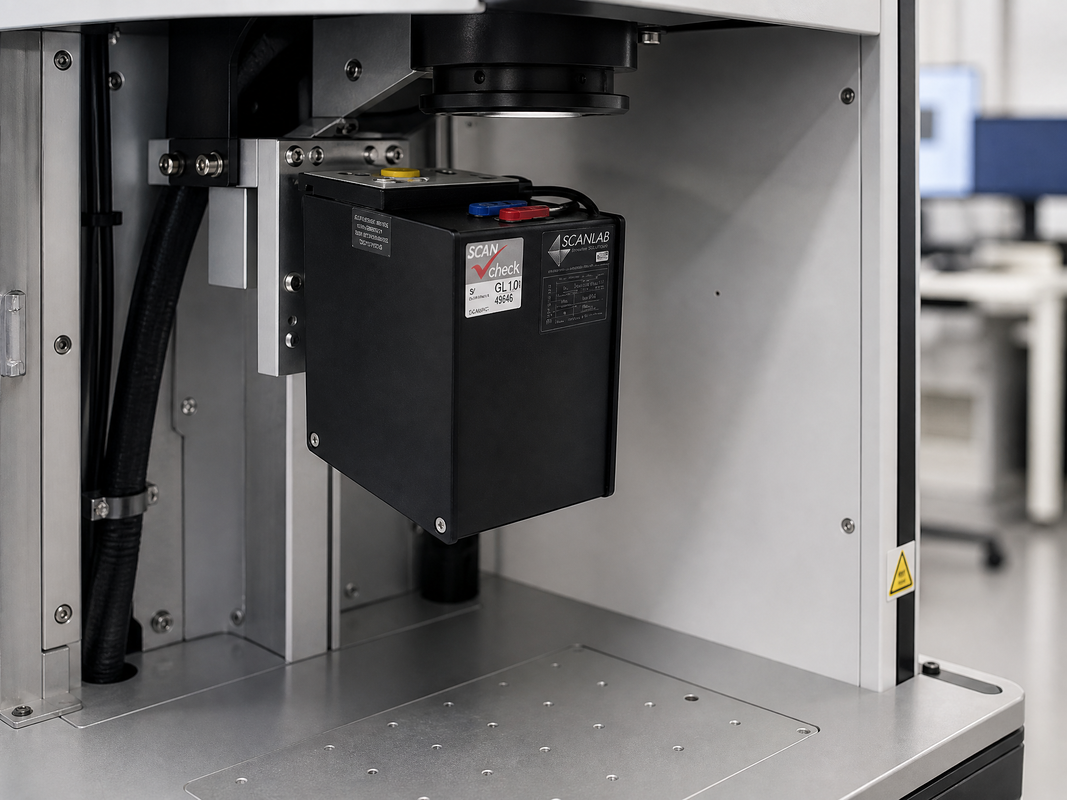

The intelliSCANse 10 is a smart laser scanning galvanometer from SCANLAB, Germany, specially engineered for ultraviolet (UV) laser applications. With a 10 mm aperture and a matte-black anodized aluminum housing for excellent heat dissipation, its industrial angular design is both functional and durable.

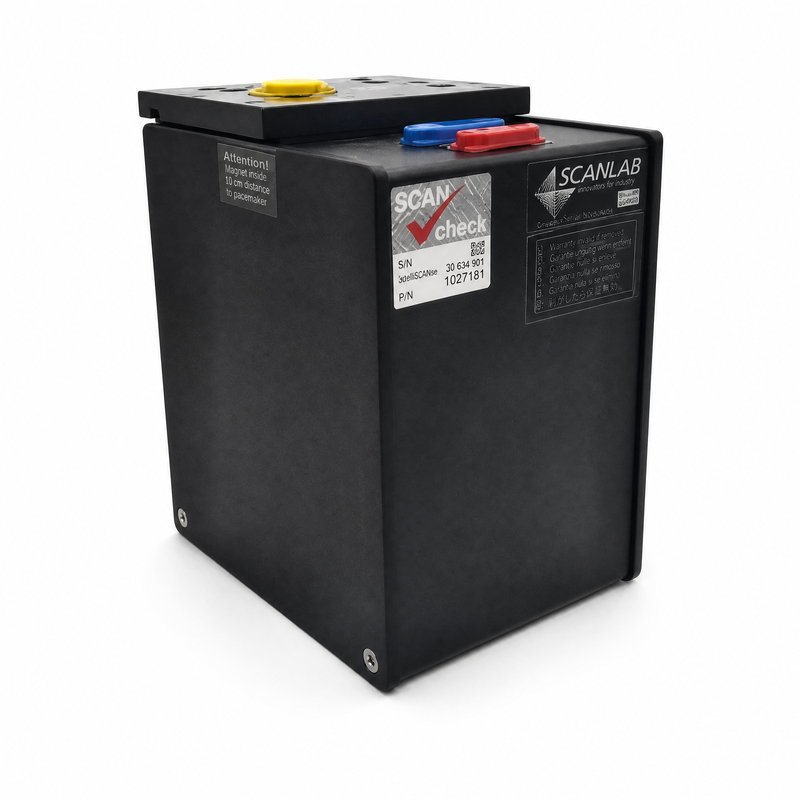

The unit is optically optimized—coatings and internal structure are tailored for 355 nm / 343 nm UV wavelengths, ensuring high transmission and low aberration in the UV path—making it a core optical component for UV laser marking, precision processing and micromachining systems. A protective cap and red/blue-labeled wiring ports sit on top; the side carries the SCANLAB brand mark, a SCAN v check authenticity label and a serial-number QR tag for full traceability.
Product Highlights
UV-Optimized: Coatings and optical path tailored for 355 nm / 343 nm UV, delivering superior UV processing precision.
Genuine German Import: SCANLAB original UV-series craftsmanship with SCAN v check traceability.
Efficient Cooling: Matte-black anodized aluminum housing handles the heat of continuous UV laser operation.
Smart Digital Control: Digital feedback and diagnostics for controlled, traceable processing.
Anti-Counterfeit Traceability: SCAN v check label and serial-number QR tag rule out refurbished units.
Pro Wiring Design: Red/blue-labeled ports under a protective cap make connection and maintenance simple.
Full Specifications & Parameters
| Parameter | Specification |
|---|---|
| Brand | SCANLAB (Germany) |
| Model | intelliSCANse 10 |
| Product Type | UV Laser Scanning Galvanometer / Scan Head |
| Aperture | 10 mm |
| Wavelengths | 355 nm / 343 nm (UV, optimized coatings) |
| Max. Scan Angle | Typical ±0.35 rad (adjustable) |
| Control Interface | Digital (XY2-100 compatible) |
| Wiring Ports | Top red/blue-labeled ports + yellow protective cap |
| Authenticity Marks | SCAN v check label + serial-number QR tag |
| Housing Material | Matte-black anodized aluminum |
| Structure | Sealed rectangular body, hex fixing screws at base |
| Cooling | Natural convection (aluminum housing) |
| Origin | Germany |
Application Areas
UV Laser Marking: Fine marking on plastics, ceramics, glass and silicon (cold processing, minimal heat-affected zone)
Semiconductor Processing: Wafer scribing marks and package marking
PCB / FPC Processing: QR marking on circuit boards and fine drilling alignment
Precision Micromachining: Micro components, precision molds and fine features
Medical Device Marking: Safe marking of medical consumables and implants
Research & Laboratory: UV optics experiments and micro/nano fabrication
Frequently Asked Questions
What is the difference between intelliSCANse 10 and intelliSCAN 10?
The "se" suffix denotes a wavelength-optimized version. This model's coatings and optical path are tailored for 355 nm / 343 nm UV, giving better UV transmission and processing results than the general-purpose version.
Which UV wavelengths are supported?
355 nm (tripled Nd:YAG) and 343 nm (femtosecond/picosecond UV) and other mainstream UV wavelengths, per model configuration.
Do UV galvo scanners need special optics?
Yes—UV-coated mirrors must match the wavelength. This unit ships UV-optimized; the paired field lens should also be UV-coated, which we can supply together.
How can I verify authenticity?
The unit carries a SCAN v check label and serial-number QR tag, verifiable through SCANLAB official channels; the SN is a unique code and the actual unit prevails.
Warranty and after-sales?
Genuine-product guarantee with warranty per contract.
Lead time?
German import; typical lead time 2-4 weeks (depending on stock and logistics). We recommend ordering early and confirming your UV wavelength configuration.
