SCANLAB scancube Laser Galvo Scanner CO2 1064nm UV 355nm Marking Cutting
-
Highlight
scancube 1064nm Scanner
,scancube Cutting Scanner
,scancube Marking Scanner
-
Compatible Wavelengths1030nm / 1064nm / 266nm / 355nm / 10600nm
-
Max Scan Angle±0.35 Rad (typical)
-
Warranty12 Months
-
Design FeatureCompact / Fin-type Heat Sink
-
Shipping TermTerm International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginGermany
-
Brand NameSCANLAB
-
CertificationCE、RoHS、ISO9001
-
Model Numberscancube 1030/10600/1064/266/355
-
Minimum Order Quantity1
-
Price$5000 - $15000
-
Packaging DetailsOriginal
-
Delivery Time3-5Workdays
-
Payment TermsL/C,D/A,D/P,T/T
SCANLAB scancube Laser Galvo Scanner CO2 1064nm UV 355nm Marking Cutting
SCANLAB scancube Laser Galvo Scanner CO2 1064nm UV 355nm Marking Cutting

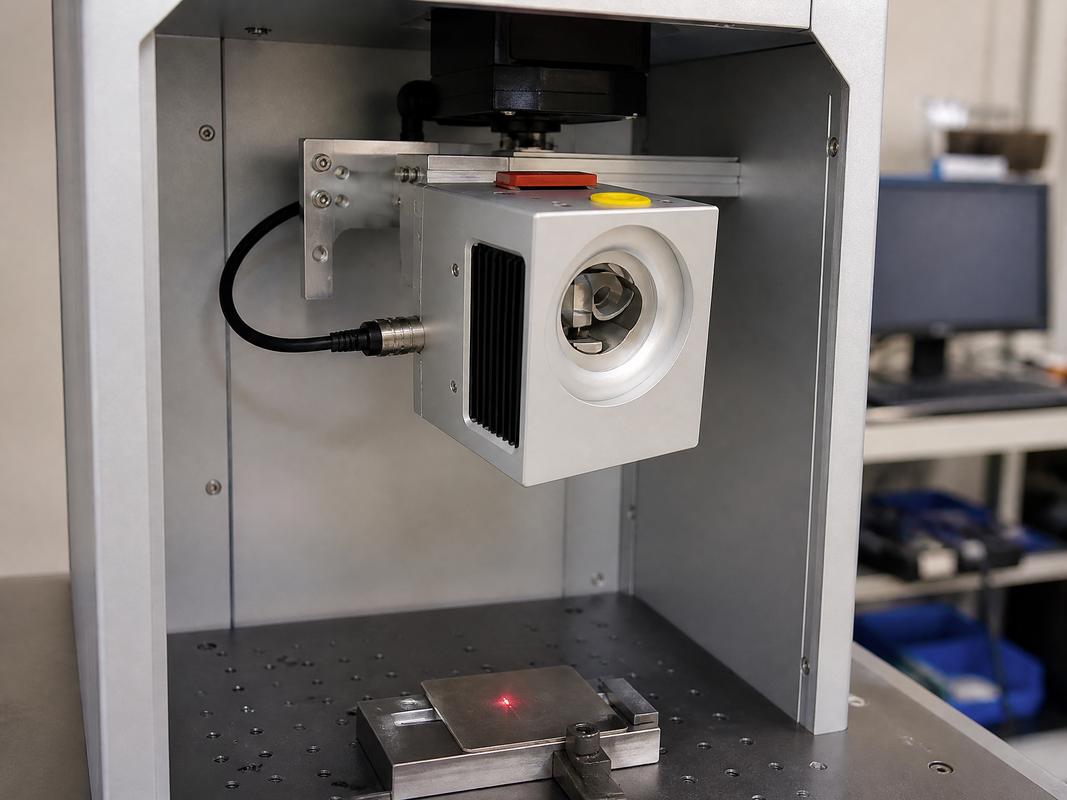

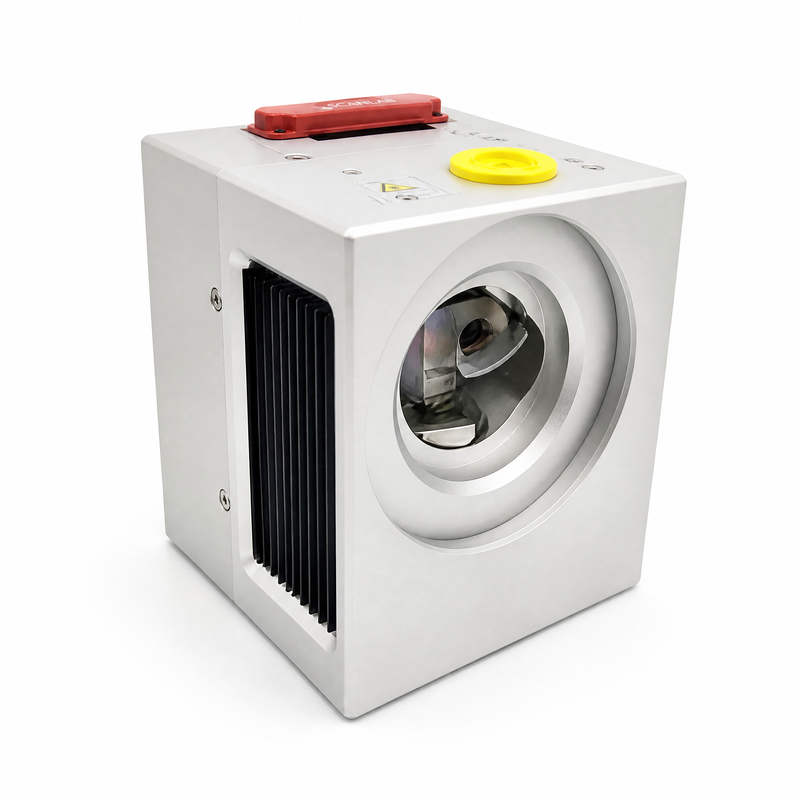

The scancube series is a compact laser scanning galvanometer from SCANLAB, Germany. Its small block design delivers high-precision scanning performance while dramatically saving installation space — ideal for laser processing equipment in space-constrained environments. The anodized aluminum housing features fin-type side heat sinks for efficient cooling and excellent thermal stability, and the clean front optical aperture provides smooth beam input/output.
The scancube supports multiple wavelengths including 1030nm, 1064nm, 266nm, 355nm (UV) and 10600nm (CO2), flexibly matching fiber lasers, UV lasers and CO2 lasers for marking, engraving, cutting and welding.
Product Highlights
- Ultra-Compact — Small block design saves machine space and integrates easily into compact, desktop-level laser systems.
- Full Multi-Wavelength Coverage — Supports CO2 (10600nm), fiber (1030/1064nm) and UV (266/355nm) mainstream laser wavelengths.
- Excellent Heat Dissipation — Fin-type heat sinks with anodized aluminum housing keep thermal drift low during long operation.
- High-Precision Positioning — SCANLAB precision manufacturing ensures marking and engraving accuracy and repeatability.
- Clean Optical Design — Large front aperture channel for low-loss, stable beam delivery.
- German Original — Genuine SCANLAB quality supplied via SANKE with after-sales support and international logistics.
Full Specifications & Parameters
| Item | Specification |
|---|---|
| Brand | SCANLAB (Germany) |
| Series | scancube series |
| Product Type | Compact laser scanning galvanometer |
| Compatible Wavelengths | 1030nm / 1064nm / 266nm / 355nm / 10600nm (CO2) |
| Laser Types | Fiber laser, UV laser, CO2 laser |
| Max Scan Angle | ±0.35 rad (typical, adjustable on request) |
| Control Method | Digital control |
| Housing Material | Anodized aluminum |
| Heat Dissipation | Fin-type side heat sinks |
| Optical Design | Large front aperture optical channel |
| Mounting | Compact standard mounting, fits miniaturized equipment |
| Operating Environment | Industrial continuous operation |
| Appearance | Silver-gray body with black heat sinks |
Application Areas
- Laser Marking — identification, barcodes and QR codes on metals, plastics and coated materials.
- Laser Engraving — fine engraving on handicrafts, gifts and molds.
- CO2 Non-Metal Processing — cutting and engraving of wood, acrylic, leather and paper.
- UV Micro-Machining — precision marking and micro-processing on semiconductors and electronic components.
- Laser Welding — spot welding of small precision parts.
- Research & Education — optical-path scanning integration in laboratory laser systems.
Frequently Asked Questions
Q1: Does scancube support CO2 lasers?
A: Yes. This series adapts to the 10600nm (CO2) wavelength for processing wood, acrylic, leather and other non-metals, and also supports 1030nm/1064nm fiber and 266nm/355nm UV wavelengths.
Q2: Does the small size affect scanning precision?
A: No. The compact design optimizes installation space only; the core scanning mechanism still uses SCANLAB precision manufacturing, meeting industrial marking and engraving accuracy requirements.
Q3: Can it be integrated into a desktop/small laser marking machine?
A: Yes. scancube is designed for space-constrained scenarios with a standard mounting that fits desktop marking machines and small engravers. We can provide integration advice.
Q4: How is the heat dissipation and thermal stability?
A: The fin-type side heat sinks with anodized aluminum housing dissipate heat efficiently, keeping thermal drift low during continuous operation for consistent processing quality.
Q5: What about warranty and after-sales? International delivery?
A: Standard warranty is 12 months (per contract).
Q6: Any precautions when using UV wavelengths (266/355nm)?
A: UV wavelengths carry high energy density — use dedicated UV optics and protective measures, and keep the environment clean. Our technical team can provide detailed usage guidance.
