Product Details
Place of Origin: China
Brand Name: Kinco
Certification: CE、ISO 9001、RoHS
Model Number: MK043E/HP043、MK070E/HP070、MK100E
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $80.00 - $260.00
Packaging Details: Original
Delivery Time: 3-5Workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Software Compatibility:
|
Kinco DTools & Kinco Builder (Free)
|
Processor Speed:
|
700MHz Industrial Grade CPU
|
Display Color Depth:
|
16.7 Million True Colors
|
IoT & Cloud Support:
|
MQTT / VNC / VPN / Edge Computing
|
High-Speed Counter:
|
4-channel (Up To 20kHz / 50kHz)
|
Environmental Protection:
|
IP65 Rated Front Panel (NEMA 4)
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Software Compatibility:
|
Kinco DTools & Kinco Builder (Free)
|
|
Processor Speed:
|
700MHz Industrial Grade CPU
|
|
Display Color Depth:
|
16.7 Million True Colors
|
|
IoT & Cloud Support:
|
MQTT / VNC / VPN / Edge Computing
|
|
High-Speed Counter:
|
4-channel (Up To 20kHz / 50kHz)
|
|
Environmental Protection:
|
IP65 Rated Front Panel (NEMA 4)
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|

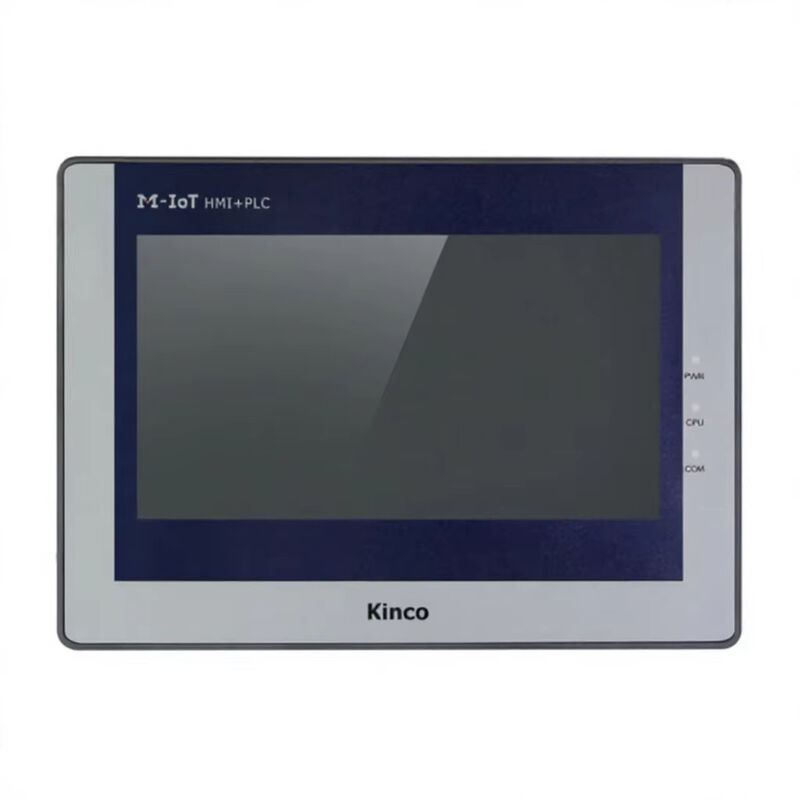

The Kinco Integrated Controller (HMI+PLC All-in-One) is a cutting-edge solution that combines a high-performance touch display and a robust Logic Control unit into a single, compact device. Designed specifically for small-to-medium-sized automation machinery, it eliminates the need for complex wiring between the HMI and PLC, significantly reducing cabinet space, installation time, and hardware costs.
Featuring vibrant TFT displays and powerful processing cores, the MK and HP series provide seamless motion control and data visualization for modern smart factories.
| Model Series | Screen Size | Resolution | Digital I/O | Output Type | Communication |
|---|---|---|---|---|---|

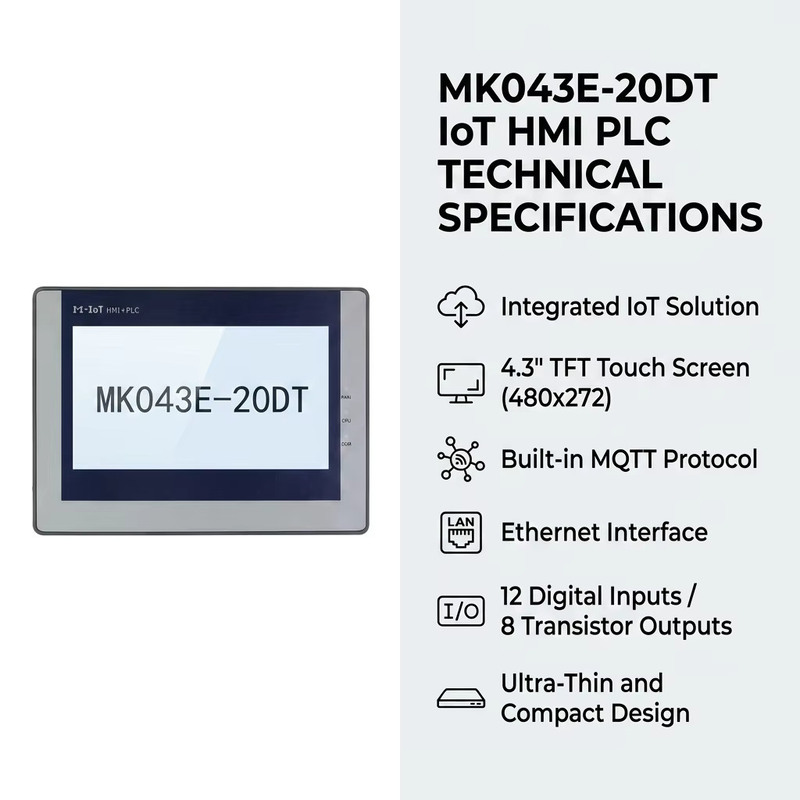

| MK043E-20DT | 4.3" TFT | 480 x 272 | 12DI / 8DO | Transistor | Ethernet, RS485, USB |

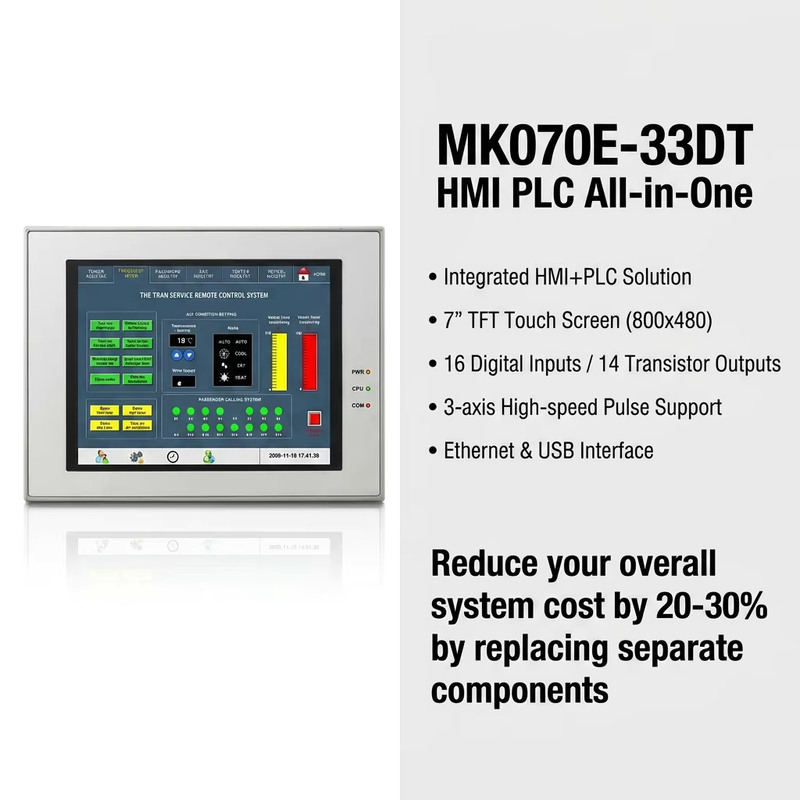

| MK070E-33DT | 7.0" TFT | 800 x 480 | 16DI / 14DO | Transistor | Ethernet, RS485, USB |
| HP043-20DT | 4.3" TFT | 480 x 272 | 12DI / 8DO | Transistor | RS485, USB |
| HP070-33DT | 7.0" TFT | 800 x 480 | 16DI / 14DO | Transistor | RS485, USB |
| MK100E-40DT | 10.1" TFT | 1024 x 600 | 24DI / 16DO | Transistor | Ethernet, RS485, USB |
It saves significant cabinet space, reduces the risk of communication failures between devices, and lowers the overall system cost.
Yes, both Kinco DTools (for HMI) and Kinco Builder (for PLC) are provided free of charge with full technical documentation.
Absolutely. Models with the "E" suffix (like MK070E) feature Ethernet ports and support MQTT, allowing for easy IoT and remote access integration.
Yes, the Kinco All-in-One series supports the connection of additional KS/X20 series expansion modules for more digital, analog, or temperature I/O.
Most models use a standard Micro USB or USB-B cable for programming, while Ethernet models can also be programmed via a standard RJ45 network cable.
Yes, the Transistor (DT) models support multi-channel high-speed pulse output, making them ideal for precise motion control applications.
We provide a 12-month factory warranty from the date of shipment for all original Kinco products.
