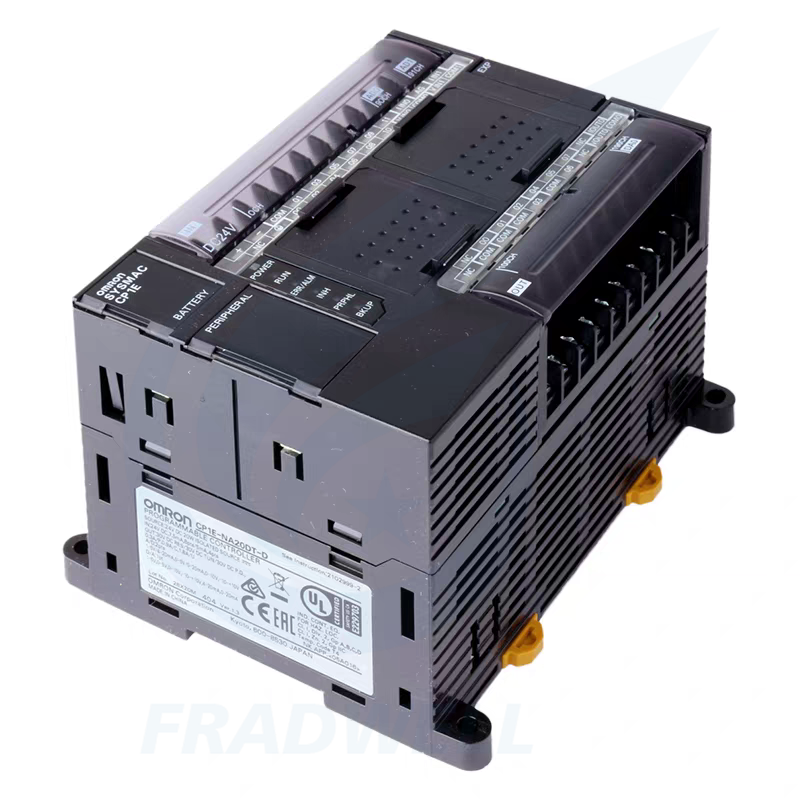

CP Series Compact PLC Programmable Logic Controllers For Global Light Industry

Name: CP Series Compact PLC Programmable Logic Controllers For Global Light Industry
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: CP1E、CP1L、CP1H、CP2E
Price: 370.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Certification: CE、ROHS、CCC、ISO 9001、UL、PSE、KEMA

Model Number: CP1E、CP1L、CP1H、CP2E

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $80-$660

Delivery Time: 3-5workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            CP Series Compact PLC, Compact PLC Programmable Logic Controllers, Global Light Industry Compact PLC


Type:	Programmable Logic Controller	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Programmable Logic Controller
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

CP Series Compact PLC Programmable Logic Controllers For Global Light Industry

CP Series PLC: Compact & Cost-Effective Control for Global Light Industry

The CP Series PLC is a compact, cost-effective programmable logic controller tailored for global light industry applications. Designed to meet the needs of overseas small-to-medium automation projects, it excels in scenarios like packaging, textile manufacturing, 3C electronics assembly, and food & beverage processing.

Core Features & Highlights

Compact Design & Cost-Effectiveness

Integrated compact structure with small footprint, ideal for overseas small-scale equipment and production lines with limited space
Full product lineup including CP1E (entry-level), CP1L (Ethernet advanced), CP1H (multi-axis control), and CP2E (all-round model)
Tiered functionality at budget-friendly prices, eliminating redundant performance costs

Multi-axis Positioning & High-speed Control

CP1E/CP1L enable 2-axis pulse output, CP1H supports 4-axis servo control, CP2E supports up to 12-axis control
Basic instruction processing speed as low as 0.1μs per instruction
High-speed counters (up to 100kHz) and pulse output for precision operations

Flexible Networking & Communication

Built-in Ethernet ports (1 port for CP1L, 2 ports for CP2E)
Support for Ethernet/IP and Modbus-RTU protocols
Up to 3 expandable serial ports for peripheral device connectivity

Easy Operation & Maintenance

Supports ladder diagram (LD), structured text (ST) and function block (FB) programming
Battery-free design on some models prevents data loss during downtime
I/O port LED indicators for quick troubleshooting

Environmental Durability & Global Compliance

Operating temperature range: -20℃ to +60℃
Withstands harsh environments including high humidity, extreme temperatures, and vibration
Full CE certification for global deployment

Core Technical Parameters

Parameter Category	CP1E	CP1L	CP1H	CP2E
Power Supply	AC100~240V/DC24V	AC100~240V/DC24V	AC100~240V/DC24V	AC100~240V/DC24V
Digital I/O Points	6~36 points	12~24 points	-	8~36 points
Program Capacity	2K~8K steps	5K~10K steps	20K steps	4K~10K steps
Instruction Speed	1.1μs/step	0.55μs/step	0.1μs/step	-
Pulse Output Axes	2 axes	2 axes	4 axes	Up to 12 axes
Built-in Ports	USB/RS-232C/RS-485	Ethernet/USB/RS-232C/RS-485	Ethernet/USB/RS-232C/RS-485	Dual Ethernet/USB/RS-232C/RS-485

Product Models

Series	Model	Power Supply	I/O Points	Output Type	Core Features
CP1E	CP1E-E10DR-A	AC100~240V	10 points	Relay	Entry-level, USB communication
CP1E	CP1E-E10DT-D	DC24V	10 points	NPN Transistor	100kHz pulse output
CP1L	CP1L-EL20DR-D	DC24V	20 points	Relay	Built-in Ethernet
CP1H	CP1H-X40DR-A	AC100~240V	40 points	Relay	4-axis encoder input
CP2E	CP2E-N14DR-A	AC100~240V	14 points	Relay	Dual Ethernet ports

Applications & Industries

Food Processing & Packaging

Deployed in Southeast Asia and Latin America for beverage filling lines, packaging machines, and conveyor control in small-scale workshops.

Electronics Manufacturing

Used in East/Southeast Asian electronics factories for assembly line control, testing equipment, and product traceability.

Light Machinery Processing

Applied in European workshops and Southeast Asian furniture factories for engraving machines, embossing equipment, and processing control.

Water Treatment & Infrastructure

Operated in Southeast Asian water plants and South Asian irrigation systems for pump control, filtration, and environmental monitoring.

Frequently Asked Questions

Q1: CP1H reports option board errors after installation - what's the issue?

A1: Typically caused by bent pins from improper option board handling or damaged chips from power surges. Check pins for damage and replace option board if necessary.

Q2: CP1E has no response via RS232 communication - why?

A2: Usually due to DIP switch settings mismatch or incorrect cable connections. Ensure switches 4 and 5 are OFF and use original communication cables.

Q3: Pulse output light is on but no signal in high-humidity environments?

A3: Often caused by burnt optocouplers from excessive load or blown fuses. Check 24V power supply and install dehumidifiers in electrical cabinets.

Q4: Expansion module I/O points have no response - what's wrong?

A4: Either exceeding the 4-module expansion limit or oxidized port pins. Check module count and clean connections with alcohol.

Q5: Data registers lost after power outage - why?

A5: Data retention area not configured or capacitor discharge. Set D registers as retained and consider external backup power.

Q6: CP1H freezes in desert environments - cause?

A6: Dust accumulation causing short circuits or overheating protection. Install dust covers and improve cabinet cooling.
