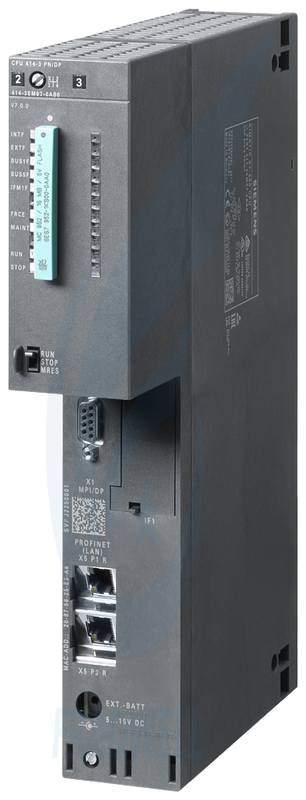

S7-400 PLC: High-Performance Control for Large-Scale Industrial Automation
As a high-performance core control device in large-scale industrial automation, the Siemens S7-400 series PLC features a modular design that enables unlimited scalability, adapting to various demanding scenarios from complex manufacturing production lines to energy management and process control. It is particularly trusted in mission-critical tasks across key industries such as automotive, energy, and chemical engineering.
Equipped with a powerful processing chip, it efficiently handles massive data and complex control logic, supporting seamless integration with inverters, HMI, sensors, and other automation components as well as upper-level management systems via multiple protocols including Profinet and Profibus. Additionally, it offers optional redundant design to ensure maximum uptime.
Combining core advantages of precise control, reliability, and flexible adaptability, along with the user-friendly STEP 7 programming environment, the S7-400 series has become a core partner for global manufacturers seeking to achieve efficient industrial production and future-oriented automation upgrades.
Key Features & Highlights
Superior Performance
Boasts a graded CPU product lineup covering standard to fault-tolerant models, with a maximum of 30MB working memory and 16,000 data blocks to flexibly meet the needs of projects of different scales. Delivers ultra-fast instruction execution speeds—18ns per bit operation and 54ns per floating-point calculation—enabling efficient processing of complex logic control, motion control, and massive process data, while providing ample computational redundancy for large-scale automation systems.
Flexible Scalability
Features a fully modular design supporting free combination and hot-swapping of signal modules, communication modules, and function modules, scalable to thousands of I/O points and 21 expansion racks. Compatible with Siemens TIA Portal and STEP 7 programming environments, it offers "configuration during operation" functionality, allowing system upgrades and expansions without interrupting production. Suitable for full-scene requirements from small production lines to distributed factories.
High Reliability & Safety
Industrial-grade fanless design with a wide operating temperature range (-25°C to 60°C) and strong resistance to electromagnetic interference, ensuring stable operation in harsh industrial environments. Supports full redundancy for CPU, power supply, and communication, with failover times as low as milliseconds and system availability exceeding 99.99%. Selected models comply with IEC 61508 SIL 3 safety standards and implement safety-related communication via Profisafe profile, safeguarding production safety in critical scenarios.
Comprehensive Connectivity
Natively supports multiple industrial protocols including Profinet, Profibus, Modbus TCP, and OPC UA, with built-in multi-channel communication interfaces for seamless integration with inverters, robots, HMIs, and MES/ERP systems. Enables distributed configuration, remote monitoring, and diagnostics, facilitating cross-regional production data exchange and laying a stable connectivity foundation for smart manufacturing and Industry 4.0 upgrades.
User-Friendliness & Lifecycle Support
Complies with IEC 61131-3 standards, supporting multiple programming methods such as ladder logic (LD), function block diagram (FBD), and structured text (ST). Equipped with intelligent self-diagnostic functions and clear fault indicators for quick troubleshooting. Provides spare parts supply and software support for over 10 years, with firmware upgrades available via network. Backed by Siemens' global service network, significantly reducing maintenance costs and downtime risks.
Core Technical Specifications
| Parameter Category |
Specific Parameters |
S7-400 Standard CPUs |
S7-400H Redundant CPUs |
| Model |
- |
CPU 412-1, CPU 412-2, CPU 414-2, CPU 414-3, CPU 416-2, CPU 416-3, CPU 417-4 |
S7-412-5H, S7-414-5H, S7-416-5H, S7-417-5H, CPU410-5H, CPU410Smart |
| Working Memory |
Code |
288KB (412-1), 512KB (412-2), 1MB (414-2), 2.8MB (414-3), 5.6MB (416-2), 11.2MB (416-3), 30MB (417-4) |
512KB (412-5H), 2MB (414-5H), 6MB (416-5H), 16MB (417-5H/410-5H), 4MB (410Smart) |
| Data |
288KB (412-1), 512KB (412-2), 1MB (414-2), 2.8MB (414-3), 5.6MB (416-2), 11.2MB (416-3), 30MB (417-4) |
512KB (412-5H), 2MB (414-5H), 10MB (416-5H), 16MB (417-5H/410-5H), 4MB (410Smart) |
| Integrated Load Memory |
- |
512KB (412-1/412-2/414-2/414-3), 1MB (416-2/416-3/417-4) |
512KB (412-5H/414-5H), 1MB (416-5H/417-5H), 48MB (410-5H/410Smart) |
| Local Data |
- |
- |
16KB (412-5H/414-5H), 64KB (416-5H/417-5H/410-5H/410Smart) |
| Instruction Execution Time |
Bit Operation |
75ns (412-1), 45ns (412-2), 30ns (414-2/414-3), 18ns (416-2/416-3/417-4) |
31.25ns (412-5H), 18.75ns (414-5H), 12.5ns (416-5H), 7.5ns (417-5H/410-5H/410Smart) |
| Floating-Point Operation |
225ns (412-1), 135ns (412-2), 90ns (414-2/414-3), 54ns (416-2/416-3/417-4) |
- |
| Integrated Interfaces |
- |
MPI/DP, Ethernet, etc. (varies by model; e.g., CPU412-2PN includes MPI/DP and Profinet interfaces) |
MPI/DP, DP, PN (classic models like 412-5H); DP, 2*PN (CPU410-5H) |
| Number of S7 Connections |
- |
32 (some basic models), 64 (mid-to-high-end models) |
48 (412-5H), 64 (414-5H), 96 (416-5H), 120 (417-5H/410-5H/410Smart) |
| Expansion Capability |
Maximum Expansion Racks |
Up to 4 (e.g., 414-3), Up to 21 (e.g., 416-3PN/DP) |
Supports multi-rack expansion; large-scale distributed configuration with interface modules |
Supplementary Parameters for Core Supporting Modules
| Module Type |
Model Example |
Core Parameters |
| Digital Input Module |
SM 421 (6ES7421-1BL01-0AA0) |
32 channels, input voltage 24V DC, input current approx. 7mA@24V |
| Communication Module |
CP443-1 |
Supports Profinet and Ethernet communication; adapts to distributed network configuration; enables cross-device data exchange |
| Interface Module |
IM467 |
Used for signal coupling between expansion racks; ensures high-speed data transmission between central and expansion racks |
| Power Supply Module |
PS 407 |
Input voltage: 120/230V AC (selectable); output: 24V DC; output current options: 2A, 5A, 10A, etc.; provides stable power supply for the system |
Product Model List
S7-400 Standard CPU Modules (DP/PN Versions)
| Order Number |
Model |
Key Specifications |
| 6ES74121XJ050AB0 |
CPU 412-1DP |
Working memory: 288KB (144KB code + 144KB data), bit processing speed: 75ns, integrated MPI/DP interface |
| 6ES74122XJ050AB0 |
CPU 412-2DP |
Working memory: 512KB (256KB code + 256KB data), bit processing speed: 75ns, integrated MPI/DP and PROFIBUS DP dual interfaces |
| 6ES74122EK060AB0 |
CPU 412-2PN |
Working memory: 1MB (0.5MB code + 0.5MB data), bit processing speed: 75ns, integrated MPI/DP and ETHERNET/PROFINET interfaces |
| 6ES74122EK070AB0 |
CPU 412-2PN |
Working memory: 1MB (0.5MB code + 0.5MB data), bit processing speed: 31.25ns, same interface configuration as 6ES74122EK060AB0 |
| 6ES74142XK050AB0 |
CPU 414-2DP |
Working memory: 1MB (512KB code + 512KB data), bit processing speed: 45ns, integrated MPI/DP and PROFIBUS DP interfaces |
| 6ES74143XM050AB0 |
CPU 414-3DP |
Working memory: 2.8MB (1.4MB code + 1.4MB data), bit processing speed: 45ns, includes MPI/DP, PROFINET interface, and expandable IF964-DP interface |
| 6ES74143EM060AB0 |
CPU 414-3PN |
Working memory: 4MB (2MB code + 2MB data), bit processing speed: 45ns, integrated MPI/DP and PROFINET interfaces, supports IF964-DP interface expansion |
| 6ES74143EM070AB0 |
CPU 414-3PN |
Working memory: 4MB (2MB code + 2MB data), bit processing speed: 18.75ns, same interface configuration as 6ES74143EM060AB0 |
| 6ES74162XN050AB0 |
CPU 416-2DP |
Working memory: 5.6MB (2.8MB code + 2.8MB data), bit processing speed: 30ns, integrated MPI/DP and PROFIBUS DP interfaces |
| 6ES74163XR050AB0 |
CPU 416-3DP |
Working memory: 11.2MB (5.6MB code + 5.6MB data), bit processing speed: 30ns, includes MPI/DP, PROFINET interface, and expandable IF964-DP interface |
| 6ES74174XT050AB0 |
CPU 417-4DP |
Working memory: 30MB (15MB code + 15MB data), bit processing speed: 18ns, supports MPI/DP, PROFINET interface, and dual IF964-DP expansion interfaces |
| 6ES74174XT070AB0 |
CPU 417-4DP |
Working memory: 32MB (16MB code + 16MB data), bit processing speed: 7.5ns, same interface configuration as 6ES74174XT050AB0 |
S7-400 Redundant/Safety CPU Modules
| Order Number |
Model |
Key Specifications |
| 6ES74125HX050AB0 |
CPU 412-5H |
Compatible with S7-400H redundant system, working memory: 512KB, bit processing speed: 31.25ns, integrated MPI/DP and PROFIBUS DP interfaces |
| 6ES74145HM060AB0 |
CPU 414-5H |
Compatible with S7-400H redundant system, working memory: 2MB, bit processing speed: 18.75ns, supports multi-interface redundant communication |
| 6ES74165HS060AB0 |
CPU 416-5H |
Compatible with S7-400H redundant system, working memory: 6MB, bit processing speed: 12.5ns, suitable for medium-to-large redundant control scenarios |
| 6ES74175HT060AB0 |
CPU 417-5H |
Compatible with S7-400H/FH system, working memory: 32MB (16MB code + 16MB data), bit processing speed: 7.5ns, integrated 5 interfaces including dedicated sync module interface |
| 6ES74105HX080AB0 |
CPU 410-5H |
Compatible with S7-400H system, supports DP and dual PROFINET interfaces, 120 S7 connections, suitable for large-scale distributed configuration |
| 6ES74143FM070AB0 |
CPU 414F-3 PN/DP |
Safety CPU, working memory: 4MB (2MB code + 2MB data), bit processing speed: 18.75ns, integrated PROFIBUS+MPI and PROFINET interfaces |
| 6ES74162FP070AB0 |
CPU 416F-2 |
Safety CPU, working memory: 8MB (4MB code + 4MB data), bit processing speed: 12.5ns, integrated PROFIBUS+MPI dual interfaces |
| 6ES74163FS070AB0 |
CPU 416F-3 PN/DP |
Safety CPU, working memory: 16MB (8MB code + 8MB data), bit processing speed: 12.5ns, includes PROFIBUS+MPI and dual-port PROFINET interfaces |
S7-400H Redundant System Kits
| Order Number |
Kit Model |
Configuration Details |
| 6ES74000HR014AB0 |
412-5H AC Power Kit |
Includes UR2-H rack, 2 x PS407 10A AC power supplies, 2 x CPU 412-5H, 4 x sync modules, 2 x sync fibers, and 4 backup batteries |
| 6ES74000HR024AB0 |
414-5H AC Power Kit |
Core configuration same as 412-5H AC kit, CPUs replaced with 2 x CPU 414-5H |
| 6ES74000HR034AB0 |
416-5H AC Power Kit |
Includes 2 x CPU 416-5H, other configurations consistent with the same series AC kit |
| 6ES74000HR044AB0 |
417-5H AC Power Kit |
Equipped with 2 x CPU 417-5H, suitable for high-end redundant control requirements, other configurations unchanged |
| 6ES74000HR514AB0 |
412-5H DC Power Kit |
Includes 2 x PS405 10A DC power supplies, suitable for DC24/48/60V scenarios, other configurations same as corresponding AC kit |
| 6ES74000HR524AB0 |
414-5H DC Power Kit |
Core configuration same as 412-5H DC kit, CPUs replaced with 2 x CPU 414-5H |
| 6ES74000HR534AB0 |
416-5H DC Power Kit |
Includes 2 x CPU 416-5H, other configurations consistent with the same series DC kit |
| 6ES74000HR544AB0 |
417-5H DC Power Kit |
Equipped with 2 x CPU 417-5H, suitable for high-end DC-powered redundant systems |
Commonly Used Supporting Function Modules
| Order Number |
Module Model |
Module Type & Core Functions |
| 6ES74211BL010AA0 |
SM 421 |
Digital input module, 32 channels, 24V DC input, input current approx. 7mA@24V |
| 6ES74311KF000AB0 |
SM 431 |
Analog input module, 8 channels, opto-isolated design, 13-bit resolution, supports voltage/current/resistance signals |
| 6GK74431GX300XE0 |
CP 443-1 Advanced |
Communication module, 1 Gigabit Ethernet port + 4 Fast Ethernet ports, supports PROFINET/TCP/IP protocols, with network security and diagnostic functions |
| 6GK74435DX050XE0 |
CP 443-5DX |
Communication module, compatible with PROFIBUS DP redundant communication, meeting industrial-grade high-reliability data transmission requirements |
| 6ES74411AA050AE0 |
CP 441-1 |
Serial communication module, supports RS232/RS485 protocols, suitable for point-to-point data transmission scenarios |
| 6ES74600AA010AB0 |
IM 460-0 |
Interface module for signal transmission between central rack and expansion racks, with K-bus communication function |
| 6ES74610AA010AA0 |
IM 461-0 |
Receiver interface module, suitable for centralized connection scenarios, ensuring stable communication between expansion racks and central rack |
| 6ES79521AH000AA0 |
RAM Memory Card |
Storage module, 256KB capacity, compatible with S7-400 series CPUs for program and data storage |
| 6ES79631AA000AA0 |
IF 963-RS232 |
Interface module with RS232 port, adapting to point-to-point connection requirements of CP 441 |
| 6ES74070KA020AA0 |
PS 407 |
Power supply module, input voltage: 120/230V AC, output: 24V DC, providing stable AC power supply for the system |
Application Fields and Scenarios
Oil & Gas / Petrochemical Industry
Typical Scenarios: Process control for crude oil distillation, hydrofining, and catalytic cracking units; collaborative scheduling of oil and gas storage and transportation. For example, a petrochemical plant in Turkey uses the S7-400H redundant CPU (CPU 414-4H) to achieve precise pressure and temperature control in distillation processes. It enables cross-protocol communication with PLCs from other brands (e.g., Rockwell) via ProfiNet, solving real-time raw material data sharing issues and preventing production downtime.
Key Adaptability: Withstands complex electromagnetic environments in chemical plants; redundant design ensures 24/7 continuous production; multi-protocol support meets equipment integration needs across different processes.
Automotive & Auto Parts Industry
Typical Scenarios: Sequential control for complete vehicle assembly lines (welding, painting, final assembly); automation of steel coil uncoiling and cutting equipment in stamping workshops; process linkage for mass production of auto parts. For instance, Toyota's plant in Turkey upgraded to S7-400 CPUs to address insufficient memory in legacy equipment, adding more function modules for steel coil processing machinery and enhancing production line flexibility.
Key Adaptability: High-speed processing capability matches the high-cycle demands of automotive production; modular design facilitates I/O point expansion for production line upgrades; seamless collaboration with robots and inverters.
Steel & Metallurgy Industry
Typical Scenarios: Full-process control of hot-rolled strip continuous casters; closed-loop temperature regulation of billet reheating furnaces; tension control in cold-rolled production lines. A European steel mill uses S7-400 PLCs to control 4 continuous casters, realizing the full continuous casting process for converter steelmaking, increasing the yield rate by over 7% and replacing the traditional ingot casting and blooming process.
Key Adaptability: Wide operating temperature range (-25°C to 60°C) tolerates high-temperature and dusty environments in metallurgical workshops; powerful analog quantity processing capability enables precise control of smelting parameters.
Power Generation & Distribution Industry
Typical Scenarios: Water quality parameter control (pH value, liquid level, flow rate) in demineralized water stations of thermal power plants; cluster monitoring of wind farm units; distribution automation in substations. The 25MW power generation project of Laiwu Steel uses S7-400 as the master station, connecting distributed I/O via PROFIBUS to achieve functions such as inverter start-up of water pumps and closed-loop pressure control.
Key Adaptability: Redundant power supply and CPU design avoid downtime losses in power systems; remote monitoring supports unattended operation of power plants; compatibility with power industry standard communication protocols.
Water Treatment & Utilities Industry
Typical Scenarios: Full-process automation of water intake, chemical dosing, and filter backwashing in water treatment plants; dissolved oxygen control in aeration tanks of sewage treatment plants; process linkage for industrial wastewater treatment to meet discharge standards. Anqing No.3 Waterworks (equipped with German technology) uses 4 sets of S7-400 PLCs to build a distributed control system, processing 200,000 cubic meters of raw water daily and realizing remote substation data transmission via a hybrid wireless-wired network.
Key Adaptability: Stable collection of water quality instrument data; PID loop control ensures treatment precision; multi-substation networking capability adapts to the decentralized layout of waterworks.
Food & Beverage / Pharmaceutical Industry
Typical Scenarios: Flow control and bottle inspection in beverage filling lines; temperature sequence control in pasteurization processes for dairy products; batch management in API synthesis in pharmaceutical factories.
Key Adaptability: Industrial-grade protection meets food hygiene standards; precise sequence control ensures production consistency; traceability design complies with pharmaceutical industry regulatory requirements.
Warehousing & Port Automation Industry
Typical Scenarios: Path planning for stackers in high-bay warehouses; linkage control of container loading/unloading equipment in ports; automation of cargo sorting lines in logistics centers.
Key Adaptability: Supports data interaction with Warehouse Management Systems (WMS); redundant design prevents cargo sorting interruptions; distributed configuration adapts to the decentralized layout of large logistics centers.
Building Materials & Glass Industry
Typical Scenarios: Kiln temperature control and raw material proportioning adjustment in cement production lines; pulling speed control and annealing furnace temperature zone regulation in float glass production.
Key Adaptability: Strong resistance to dust and vibration; long-term stable operation meets the continuous production needs of the building materials industry; multi-loop control supports linkage of complex process parameters.
Frequently Asked Questions
Q: Can the S7-400 PLC be compatible with our existing non-Siemens equipment (e.g., Rockwell inverters, Allen-Bradley HMIs)?
A: Yes, it's totally feasible. The S7-400 natively supports universal protocols like Modbus TCP, Ethernet/IP, and Profinet. We've seen many clients in Europe and Southeast Asia connect it to Rockwell or Schneider devices directly. For older Profibus DP devices, you just need to add a CP 443-5DX communication module.
Q: Do we need to meet specific electrical standards (e.g., UL, CE) for using the S7-400 in North America/Europe?
A: All S7-400 models for overseas markets are pre-certified with CE, UL, and cUL marks—they fully comply with IEC 61131-3 and local electrical codes (like NEC in the US, VDE in Germany). You don't need extra certifications; just ensure the power supply matches local voltages (the PS 407 module supports 120/230V AC, so it works in both North America and Europe).
Q: How long does the delivery usually take for overseas orders? And what if we need spare parts urgently?
A: Standard delivery time is 4-6 weeks for most regions (Europe, North America, Southeast Asia). For urgent orders (e.g., production line breakdowns), we have regional warehouses in Germany, the US, and Singapore—spare parts like CPUs or power modules can be delivered in 2-3 days. We recommend keeping 1-2 key modules (e.g., CPU 414-3PN, PS 407) in stock if your production is 24/7.
Q: What programming software do we need? Is it compatible with our existing Windows systems?
A: You'll need Siemens TIA Portal (V16 or later) or STEP 7 V5.6—both work with Windows 10/11 (64-bit). TIA Portal is more user-friendly for new projects (supports drag-and-drop configuration), while STEP 7 V5.6 is better for legacy systems. The software is available for free download on the Siemens official website; you just need a license key for commercial use. Pro tip: Install the latest service pack to avoid compatibility issues with new CPU models.
Q: The S7-400 is used in our chemical plant (high temperature + heavy dust)—will it hold up? What about maintenance cycles?
A: The S7-400 is designed for harsh industrial environments: it has a wide operating temperature range (-25°C to 60°C) and IP20 protection (rack-mounted) with dust-resistant components. Most clients report stable operation for 8-10 years with minimal maintenance. We suggest checking the power module's fan (if equipped) and cleaning the rack vents every 6 months—especially in dusty sites like mines or cement plants. The redundant CPU (S7-400H) also has a built-in self-diagnostic function that alerts you to potential issues via HMI.
Q: Can we expand the I/O points later if our production line scales up? Will it affect ongoing production?
A: Yes, the S7-400's modular design allows hot-swapping of signal modules—you can add DI/DO or AI/AO modules without stopping production. The maximum expansion is up to 21 racks and thousands of I/O points. Just make sure the new modules are compatible with your CPU model (e.g., CPU 416-3PN supports more expansion than CPU 412-2PN). Our team can help you design the expansion plan in advance to avoid wiring conflicts.
Q: We had issues with data loss during power outages before—how does the S7-400 protect data?
A: The S7-400 has three layers of data protection: ① Built-in non-volatile memory (load memory) stores the program permanently; ② A backup battery (included in the CPU) preserves working memory data for up to 200 hours during power outages; ③ You can add an external RAM memory card (e.g., 6ES7952-1AH00-0AA0) for extra data storage. For critical applications (e.g., power plants), we recommend pairing it with an uninterruptible power supply (UPS) to prevent sudden shutdowns.
Q: Is there a language barrier for programming and troubleshooting? We have engineers who speak Spanish/Portuguese.
A: TIA Portal and STEP 7 support over 15 languages, including Spanish, Portuguese, French, German, and Mandarin. The user manual, error codes, and diagnostic messages are also available in these languages. If you need on-site support in a specific language, we can arrange engineers who are fluent in it—just note your language preference when contacting our service team.
Q: How does the S7-400 compare to other high-end PLCs (e.g., Allen-Bradley ControlLogix) in terms of total cost of ownership (TCO)?
A: While the initial purchase price is similar, the S7-400 has a lower TCO over 5-10 years: ① Spare parts are more affordable and widely available globally; ② It's compatible with Siemens' entire automation ecosystem (e.g., Sinamics inverters, Simatic HMI), so you don't need to pay for third-party integration tools; ③ The long-term availability (10+ years of spare parts supply) means you don't have to upgrade the system frequently. Many automotive and energy clients switch to S7-400 for this reason.
