Product Details
Place of Origin: USA
Certification: ATEX、UL、CSA、CE、IEC、C - Tick、KC、RCM、IECEx
Model Number: CompactLogix 5370/5380/5480
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $100-$7300
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|

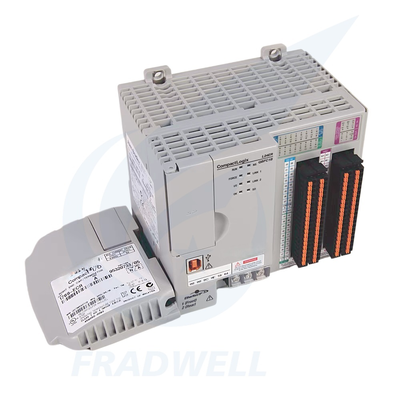

CompactLogix PLC: Compact, Powerful Industrial Automation
| Series/Model | Processor Specification | User Memory | Program Execution Speed |
|---|---|---|---|
| 5370 L1/L2 | 32-bit PowerPC core, 80MHz (105 MIPS) | 384KB ~ 1MB | 0.08ms/K mixed instructions |
| 5370 L3 | 32-bit PowerPC core, up to 1.5GHz | 2MB ~ 3MB | 0.06ms/K mixed instructions |
| 5380 Series | 32-bit multi-core processor | 3MB ~ 20MB | 0.05ms/K mixed instructions |
| 5480 Series | Intel i7 2.4GHz quad-core processor | 3MB ~ 20MB + 6GB SDRAM | 0.04ms/K mixed instructions |
| Series/Model | Maximum Motion Axes | Motion Control Protocol | Core Functions |
|---|---|---|---|
| 5370 L2 | 4 axes | CIP Motion (EtherNet/IP) | Point-to-point control, electronic gearing/camming |
| 5370 L3 | 16 axes | CIP Motion, Sercos III | Multi-axis synchronization, path planning |
| 5380 Series | 32 axes | CIP Motion | High-precision position loop control (±0.1μm) |
| 5480 Series | 150 axes | CIP Motion | Complex kinematics calculation, robot coordination |
| Series | Model | Key Specifications | Core Applications |
|---|---|---|---|
| CompactLogix 5370 | 1769-L16ER-BB1B | 384KB user memory; 16 DI, 16 DO; 2 Ethernet/IP ports; up to 4 Ethernet/IP nodes; 1GB SD card | Small-scale standalone automation |
| CompactLogix 5370 | 1769-L18ER-BB1B | 512KB user memory; 16 DI, 16 DO; 2 Ethernet/IP ports (DLR); up to 8 modules expansion | Medium-sized equipment control with basic I/O requirements |
| CompactLogix 5370 | 1769-L18ERM-BB1B | 512KB user memory; 16 DI, 16 DO; 2 integrated motion axes; 2 Ethernet/IP ports | Small-scale motion control scenarios |
| CompactLogix 5370 | 1769-L19ER-BB1B | 1MB user memory; 16 DI, 16 DO; 2 Ethernet/IP ports; up to 8 modules expansion | Small-to-medium automation systems requiring larger memory |
| CompactLogix 5380 | 5069-L306ER | 600KB user memory; 8 I/Os; 16 Ethernet/IP devices; Ethernet/IP communication | Small-sized smart equipment control |
| CompactLogix 5380 | 5069-L306ERMS2 | 0.6MB standard memory + 0.3MB safety memory; SIL2/PLe; 8 I/Os; 2 motion axes | Safety-related small motion systems |
| CompactLogix 5480 | 5069-L430ERMW | 3MB Logix memory; 60 nodes; up to 31 I/O modules; 16 motion axes; Windows 10 IoT Enterprise | Medium-sized intelligent control with data analysis |
