Series:	Square D 9070 Type T	Voltage Ratio:	480V To 120V (D1)
Insulation:	Class 105°C (221°F)	Phase:	Single-Phase
Termination:	Screw Terminals	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Series:	Square D 9070 Type T
Voltage Ratio:	480V To 120V (D1)
Insulation:	Class 105°C (221°F)
Phase:	Single-Phase
Termination:	Screw Terminals
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

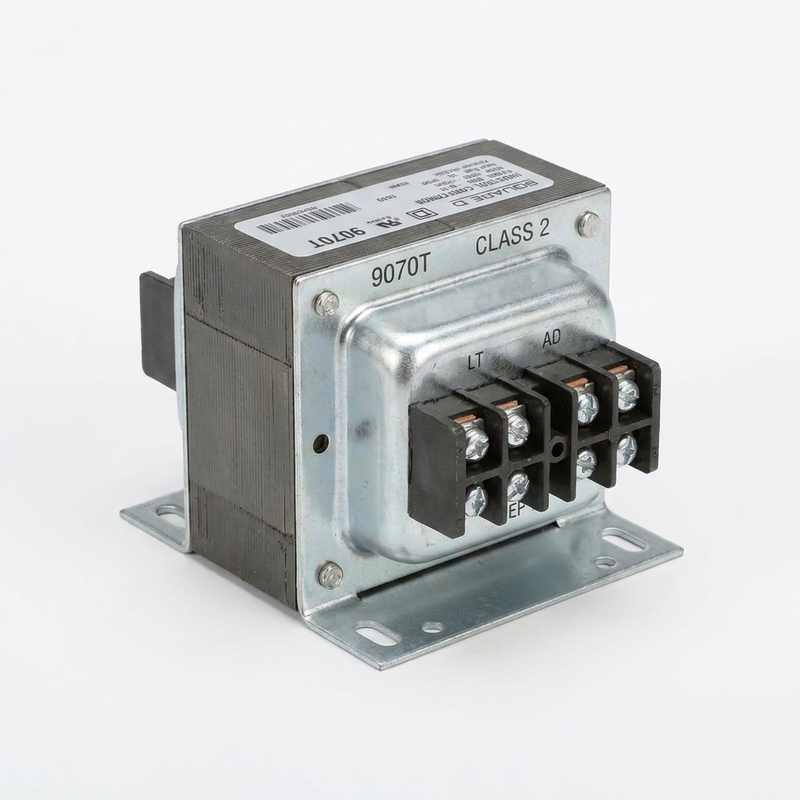

Square D 9070 Type T Industrial Control Transformer 480V to 120V D1 New

The Square D (by Schneider Electric) 9070 Type T series is the definitive standard for industrial control power in North America. Specifically engineered for high inrush currents typically found in contactors and relays, the Type T series ensures stable control voltage for machine tools and automation panels. If you are building or maintaining equipment for the US or Canadian market, Square D is the mandatory choice for reliability and compliance.

Product Highlights

High Inrush Capability: Optimized to handle the sudden power demands of industrial electromagnetic components without voltage drops.
Compact Footprint: Designed to save valuable space inside dense control cabinets.
Rugged Construction: Built with high-quality copper windings and vacuum-impregnated cores for silent, cool operation.
Superior Protection: Available with integrated primary and secondary fuse blocks to simplify wiring and enhance safety.

Specification and Model Information

Model Number	VA Rating	Primary V	Secondary V	Hz
9070T50D1	50 VA	240 x 480 V	120 V	50/60 Hz

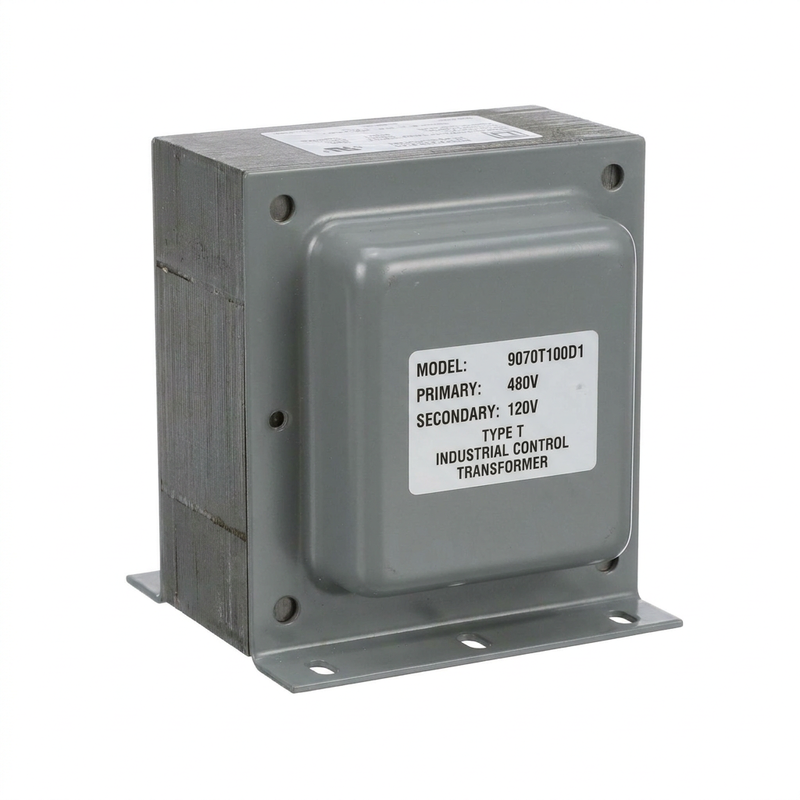

9070T100D1	100 VA	240 x 480 V	120 V	50/60 Hz
9070T150D1	150 VA	240 x 480 V	120 V	50/60 Hz
9070T250D1	250 VA	240 x 480 V	120 V	50/60 Hz
9070T500D1	500 VA	240 x 480 V	120 V	50/60 Hz
9070T1000D1	1000 VA	240 x 480 V	120 V	50/60 Hz

Application Area

Industrial Control Panels, Motor Starters, Automation Logic Controllers, HVAC Systems, and OEM Machinery.

Frequently Asked Questions

Q1: What does the "D1" suffix mean in 9070T? A: D1 signifies the most common US voltage ratio: 240/480V primary to 120V secondary.
Q2: Is this transformer compatible with Canadian electrical standards? A: Yes, Square D Type T is fully UL Listed and CSA Certified for both US and Canadian markets.
Q3: Does it include fuse blocks? A: Standard units have open terminals, but we offer optional fuse block kits that can be factory or field-installed.
Q4: Can it handle 50Hz power? A: Yes, it is dual-rated for 50/60 Hz, making it suitable for global equipment exports.
Q5: How do I select the right VA rating? A: Add up the sealed VA of all components and ensure the transformer exceeds this while handling the maximum inrush VA.
Q6: Are these units brand new? A: Yes, we only supply 100% original, brand-new Square D products in factory packaging.
