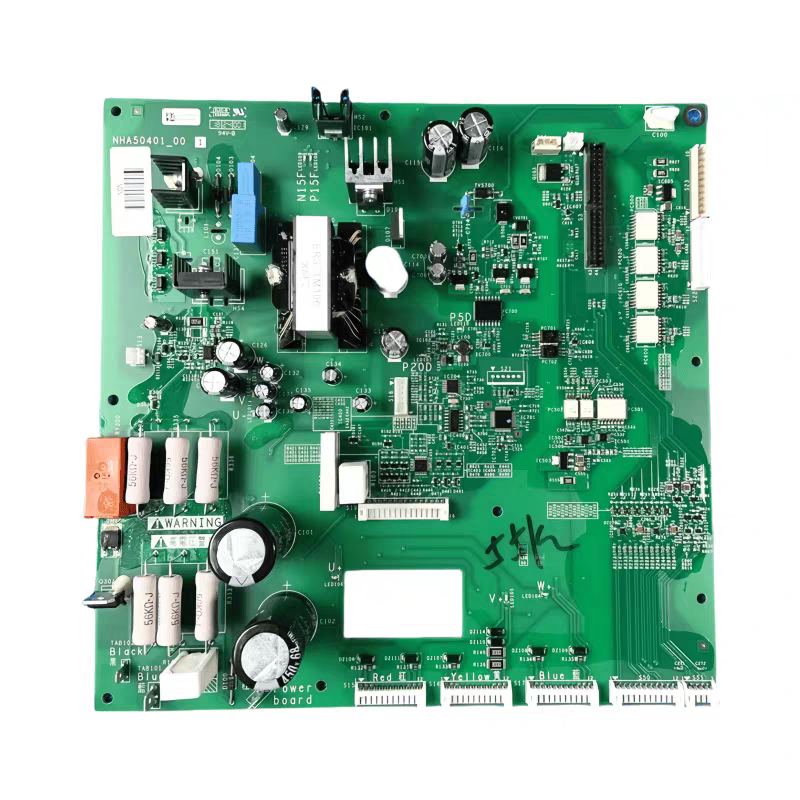

Inverter Control Board IO Board for Pump Fan HVAC, Stable Repair Spare Parts Reduce Downtime
| Inverter Series | Main Board Model | Function Description | Replacement & Compatibility |
|---|---|---|---|
| ATV31/ATV312 | VX4A31100Y, VX4A31200Y | CPU main control board for small general-purpose inverters, integrated with basic IO interfaces | Not interchangeable between series; must match original inverter series |
| ATV61 | VX4A61100Y, VX4A61101Y | Main control board for standard industrial inverters, supporting multiple communication protocols | Interchangeable within ATV61 series; not applicable to ATV71 |
| ATV71 | VX4A71100Y, VX4A71101Y | High-performance vector inverter main control board for complex speed regulation control | Interchangeable within ATV71 series; incompatible with ATV61 |
| ATV320 | VX4A32000Y | Compact inverter integrated IO main board with built-in basic DI/DO/AI | Only suitable for ATV320 series; no replacement model |
| ATV340 | VX4A34000Y | High-performance compact inverter main control board with fast computing speed | Only suitable for ATV340 series; different interface from ATV320 |
| ATV930/ATV950/ATV960 | VX4B900100 | New generation Altivar Process main control board supporting Ethernet communication | Universal for ATV930/950/960 series; no replacement model |
| ATV930/ATV950/ATV960 | NHA3217201 | Terminal board/IO interface main board for signal transfer and terminal connection | Only suitable for ATV930/950/960 series |
| Inverter Series | Main Board Model | Function Description | Replacement & Compatibility |
|---|---|---|---|
| ATV1200C | 5.558.012.03MX, 516.SY0001.02 | System main control board for medium-high voltage inverters | Interchangeable; only suitable for ATV1200C series |
| ATV1200C | 5.558.015.02MX, 5.558.016MX | Power unit control board for drive and monitoring of single power unit | Interchangeable; only for ATV1200C power units |
| ATV1200C | 5.558.018MX, 5.558.019AMX | Power unit control board for different power ranges | Interchangeable; suitable for full power range of ATV1200C |
| ATV1200C | 5.558.022.01MX, 5.558.030.04MX | Power unit control board with enhanced design and higher stability | Interchangeable; suitable for high-power segment units |
| IO Board Type | Model | Function | Compatible Series | Replacement & Compatibility |
|---|---|---|---|---|
| Standard IO Terminal Board | VX4A1104 | Basic IO signal terminal board for DI/DO signal transfer | ATV61, ATV71 | Universal for ATV61 and ATV71 series |
| Standard IO Module | VX4BT900200 | Standard IO replacement module with basic IO functions | ATV930/ATV950/ATV960 | Only suitable for ATV900 series |
| Medium-High Voltage IO Board | 506.I00016.03 | System IO control board for centralized control of IO signals | ATV1200C | Only suitable for ATV1200C series |
| IO Board Assembly | PI0032.02 | Medium-high voltage IO board assembly with supporting terminals | ATV1200C | Only suitable for ATV1200C series |
| Expansion Card Type | Model | Function Parameters | Compatible Series | Replacement & Compatibility |
|---|---|---|---|---|
| Multi-Function IO Expansion Card | VW3A3203 | 6 DI, 2 DO, 2 AI, 3 Relay Output channels | ATV320, ATV340, ATV610, ATV630, ATV930, ATV960 | Most commonly used universal expansion card |
| Relay Output Expansion Card | VW3A3204 | 3-channel relay output expansion for high-power loads | Most ATV series (except ATV31/312) | Universal expansion card for most mid-to-high-end ATV series |
| Analog Expansion Card | VW3A3205 | 2 AI, 1 AO channels for analog signal acquisition and output | Most ATV series (except ATV31/312) | Universal analog expansion card |
| Drive Board Model | Compatible Inverters | Function Description | Replacement & Compatibility |
|---|---|---|---|
| VX5A1200, VX5A1201, VX5A1202 | ATV61/ATV71 | Drive/trigger board for inverter power module drive and trigger | Interchangeable; only for ATV61/ATV71 series |
| PN072125P3, PN072183P3 | Universal Low-Voltage Inverters | Power drive board for medium-power low-voltage inverters | Interchangeable; suitable for most low-voltage ATV series |
| VX5A1HD9011 | 90/110kW Inverters | Integrated power supply and drive board for high-power low-voltage inverters | Only suitable for 90/110kW power range |
| VX5A1300 | Universal Low-Voltage Inverters | Pre-charge trigger board for inverter start protection | Suitable for most low-voltage ATV series |
| VX5A1400 | Universal Low-Voltage Inverters | Fan control board for inverter cooling fan control | Suitable for most low-voltage ATV series |
