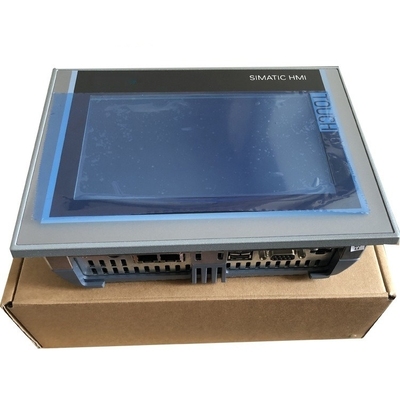

IP65 SIMATIC HMI Comfort Panel PROFINET Automotive Line Monitoring

SIMATIC HMI Comfort Panel: PROFINET, IP65, Automotive Line Monitoring

The SIMATIC HMI Comfort Panel delivers high-speed PROFINET connectivity for seamless device integration and low-latency data transmission. With an IP65 front-panel protection rating, it withstands dust, coolant splashes, and harsh conditions in automotive workshops, effectively solving issues like unstable device connections and equipment damage in tough environments.

Tailored for automotive line monitoring, it enables real-time production data tracking, equipment fault alarms, and process parameter adjustments. The panel supports glove-friendly operation for on-site convenience and integrates seamlessly with TIA Portal to reduce engineering time and boost intelligent management efficiency for stamping, welding, and assembly lines.

Core Features

High-speed PROFINET Connectivity: Seamless device integration and low-latency data transmission for automotive line real-time control
IP65 Front Protection: Dust and splash resistant, ideal for harsh automotive workshop environments, reducing maintenance costs
Automotive Line-Optimized: Data collection, fault alarm, and parameter adjustment for stamping, welding, and assembly processes
Clear Visual Display: High-resolution touchscreen with wide viewing angle and glove-friendly operation for bright workshop use
TIA Portal Integration: Unified configuration to shorten automotive project engineering and commissioning time

Technical Specifications

Parameter Category	Detailed Parameters	Specifications	Applicable Series
Display Parameters	Display Type	TFT Color LCD, Wide Screen	All Series
	Color Depth	16 Million Colors	All Series
	Resolution	800×480 (7/9-inch); 1280×800 (12/12.1-inch); 1920×1080 (15.6/18.5/19/22-inch)	All Series (varies by size)
	Viewing Angle	Horizontal: ≥170°, Vertical: ≥160°	All Series
	Brightness	350 cd/m² (standard); Optional sunlight-readable (450 cd/m²)	All Series (optional upgrade)
	Backlight Life	≥50,000 hours (typical)	All Series
Performance Parameters	Processor	ARM Cortex-A8, 800 MHz	TP/KP/KTP/INOX Series
	Processor	Intel Celeron J4125, 2.0 GHz	Unified Series
	Configuration Memory	4MB (KTP 4-inch); 12MB (TP/KP 7-15.6-inch); 24MB (INOX Series); 64GB (Unified Series)	All Series (varies by type)
	Runtime System	Windows CE 6.0 (TP/KP/KTP/INOX); Windows 10 IoT Enterprise (Unified)	All Series
Communication Parameters	Industrial Ethernet	PROFINET, Ethernet (10/100 Mbps), 2×RJ45 ports	All Series
	Serial Communication	MPI/PROFIBUS DP, RS-485 (optional)	All Series
	USB Ports	2×USB 2.0 (TP/KP/KTP/INOX); 4×USB 3.1 (Unified Series)	All Series
	Wireless Communication	Wi-Fi (802.11 b/g/n), Bluetooth 4.2 (optional)	All Series (optional upgrade)
	Industrial Protocol	OPC UA, Modbus TCP (compatible)	All Series
	Data Transfer	Support USB flash drive export, Ethernet file transfer	All Series
Protection & Installation	Protection Level	Front Panel: IP65 (TP/KP/KTP/Unified); IP66K (INOX Series); Rear Panel: IP20	All Series
	Front Panel Material	Polycarbonate (TP/KP/KTP/Unified); Stainless Steel (INOX Series)	All Series
	Operating Temperature	0°C ~ 55°C (operating); -20°C ~ 60°C (storage)	All Series
	Installation Type	Panel Mounting (standard); Optional wall mounting	All Series
Power Supply & Environmental	Power Supply	100-240V AC, 50/60 Hz (universal global voltage)	All Series
	Power Consumption	≤25 W (7-12-inch); ≤35 W (15.6-19-inch); ≤45 W (22-inch)	All Series (varies by size)
	Humidity	10% ~ 90% (non-condensing)	All Series
	Vibration Resistance	5-500 Hz, 1 g (operating); 5-500 Hz, 2 g (storage)	All Series
Function Parameters	Core Functions	Data logging, alarm management, recipe management, trend display, user authorization	All Series
	Operation Support	Glove-friendly operation (touchscreen models); Key lock function (keypad models)	All Series (varies by operation mode)
	Software Compatibility	TIA Portal (WinCC Comfort/Advanced); WinCC Unified (Unified Series)	All Series
	Compliance	CE, UL, FDA 21 CFR Part 11 (optional for INOX/Unified Series)	All Series (compliant with international standards)

Product Models

Product Type	Model No.	Operation Mode	Size	Core Parameters	Protection Level	Overseas Application Scenarios
TP Comfort Panel (Touchscreen Only)	6AV2124-0GC01-0AX0	Touchscreen	7-inch	PROFINET/MPI/PROFIBUS DP, 12MB configuration memory, Windows CE 6.0, 16M-color TFT wide screen	Front Panel IP65	Basic monitoring of automotive, food and beverage production lines
	6AV2124-0JC01-0AX0	Touchscreen	9-inch	Same as above	Front Panel IP65	Centralized monitoring of small and medium-sized production line equipment
	6AV2124-0MC01-0AX0	Touchscreen	12-inch	Same as above	Front Panel IP65	Complex process visualization for large-scale equipment
	6AV2124-0QC02-0AX1	Touchscreen	15.6-inch	Same as above	Front Panel IP65	Production line control center data management
	6AV2124-0UC02-0AX1	Touchscreen	19-inch	Same as above	Front Panel IP65	Panoramic monitoring and scheduling of large workshops
	6AV2124-0XC02-0AX1	Touchscreen	22-inch	Same as above	Front Panel IP65	Central monitoring center of smart factories
KP Comfort Panel (Keypad Only)	6AV2124-1DC01-0AX0	Keypad	4-inch	PROFINET/MPI/PROFIBUS DP, 12MB configuration memory, Windows CE 6.0, 16M-color TFT wide screen	Front Panel IP65	Simple parameter input for small equipment
	6AV2124-1GC01-0AX0	Keypad	7-inch	Same as above	Front Panel IP65	Precise operation in harsh environments
	6AV2124-1JC01-0AX0	Keypad	9-inch	Same as above	Front Panel IP65	Quick parameter switching for mass production
	6AV2124-1MC01-0AX0	Keypad	12-inch	Same as above	Front Panel IP65	Precise parameter adjustment for process industry
	6AV2124-1QC02-0AX0	Keypad	15.6-inch	Same as above	Front Panel IP65	Complex process control for high-end manufacturing
KTP Comfort Panel (Keypad + Touchscreen)	6AV2124-2DC01-0AX0	Keypad + Touchscreen	4-inch	PROFINET/MPI/PROFIBUS DP, 4MB configuration memory, Windows CE 6.0, 16M-color TFT wide screen	Front Panel IP65	Flexible operation for multiple scenarios, compatible with glove operation
INOX Comfort Panel (Corrosion-Resistant)	6AV2144-8GC10-0AA0	Touchscreen	7-inch	PROFINET/MPI/PROFIBUS DP, 24MB configuration memory, 16M-color TFT wide screen	Front Panel IP66K	Clean/corrosive environments such as pharmaceuticals and chemical industry
INOX Comfort Panel (Corrosion-Resistant)	6AV2144-8QC10-0AA2	Touchscreen	15.6-inch	Same as above	Front Panel IP66K	Compliant production for high-end food and pharmaceutical industries
Unified Comfort Panel (MTP)	6AV2128-3MB06-0AX1	Touchscreen	12.1-inch	PROFINET, 4×USB 3.1, RS-485, WinCC Unified compatible	Front Panel IP65	Production line upgrade for Industry 4.0 smart manufacturing
	6AV2128-3QB06-0AX1	Touchscreen	15.6-inch	Same as above	Front Panel IP65	System integration of Industry 4.0 smart factories
	6AV2128-3UB06-0AX1	Touchscreen	18.5-inch	Same as above	Front Panel IP65	Central scheduling center of large smart factories

Application Fields

Automotive Manufacturing: Ideal for stamping, welding, painting and assembly lines. Supports real-time equipment monitoring, process parameter adjustment and production data tracking, compatible with glove operation in dusty, coolant-splashed workshops.
Food & Beverage: Meets visualization needs of processing, packaging and filling lines. Connects to sterilization and sorting equipment, enables recipe management and batch recording, compliant with clean workshop standards.
Pharmaceuticals: Suitable for batching, formulation and packaging processes. Features audit trails and multi-level authorization, compliant with FDA 21 CFR Part 11 to ensure production traceability and compliance.
Packaging Machinery: Matches labeling, cartoning and palletizing machines. Enables quick packaging parameter switching and real-time fault alarms, boosting line changeover efficiency and reducing downtime.
Chemical Industry: Used for material proportioning, reactor temperature control and tank level monitoring. IP65 front panel resists corrosive gases and dust, adapting to harsh chemical workshop conditions.
Logistics & Warehousing: Integrates with sorting lines, conveyors and automated warehouses. Displays cargo flow and inventory data in real time, supports remote monitoring to optimize warehousing efficiency.
New Energy: Fits lithium battery cell assembly, PV module packaging and wind power equipment testing lines. Realizes precise process control and data collection for smart new energy manufacturing.

Frequently Asked Questions

Q1: Can the Comfort Panel work with non-Siemens PLCs?

A: Yes, it supports multiple protocols like PROFINET, Modbus TCP. Just configure the protocol in TIA Portal, works with most mainstream PLCs.

Q2: Does the IP65 rating mean the whole panel is waterproof?

A: No, only the front panel is IP65. The back and installation area are IP20, so you need to install it in a control cabinet to avoid water splashes.

Q3: Can I operate the panel with gloves on the automotive workshop floor?

A: Absolutely. It's designed for glove operation, suitable for dusty, oily workshop environments. You can adjust touch sensitivity in settings too.

Q4: How to transfer data logs from the panel to a computer?

A: Two easy ways: use a USB flash drive to export directly on the panel, or set up Ethernet connection to transfer files via TIA Portal.

Q5: What if the panel screen goes black in bright sunlight?

A: Adjust the screen brightness to maximum in the system settings. The wide-view LCD is sunlight-readable, no need for extra shading devices.

Q6: Is the Comfort Panel suitable for 24/7 operation in automotive production lines?

A: Yes, it's built for industrial continuous work. Just make sure the operating temperature stays between 0-55°C, avoid overheating.

Q7: How to solve the connection failure between the panel and PROFINET network?

A: First check the Ethernet cable and switch. Then confirm the panel's IP address is in the same subnet as the PLC. Restart the device if needed.

Q8: Can I update the panel firmware without stopping the production line?

A: It's not recommended. Firmware updates require restarting the panel, which will interrupt the connection. Do it during production downtime.
