Product Details
Place of Origin: Japan
Certification: CE、UL、KC、RCM、UKCA，RoHS、REACH

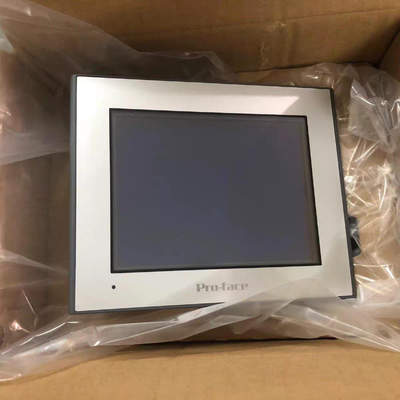

Model Number: ET6000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $200–$2100
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
HMI Touch Screen
|
Screen Size:
|
7/10.1/12.1/15.6Wide
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
HMI Touch Screen
|
|
Screen Size:
|
7/10.1/12.1/15.6Wide
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Specifications |
|---|---|
| Display | TFT color LCD, 16 million colors, white LED backlight (50,000+ hours lifespan at 25°C), 16-level brightness control |
| Touch Panel | Resistive film (analog), single-touch, service life ≥ 1,000,000 operations, supports glove operation |
| Memory | PFXET6400WAD: 32MB application memory, 128KB backup memory; Others: 64MB application memory, 128KB backup memory; Device memory: 256MB (PFXET6700WAD) |
| Interfaces | COM1 (RS-232C), COM2 (RS-422/485), 1×Ethernet (10/100BASE-TX), 1×USB Type-A, 1×USB Micro-B; Serial port baud rate: 2400-115200 bps (COM1), 2400-187500 bps (COM2) |
| Power Supply | 24V DC (typical), voltage range: 19.2-28.8V DC (±20%), inrush current: 30A, power consumption: 18.5W (PFXET6700WAD) |
| Protection & Durability | Front panel: IP65 (IEC 61131-2), Rear panel: IP20; Dustproof, moistureproof coating as standard; Vibration resistance: ±3.5mm (5-9Hz) / 9.8m/s² (9-150Hz), shock resistance: 147m/s² for 11ms (X/Y/Z directions) |
| Operating Environment | Operating temperature: 0-50°C (32-122°F); Storage temperature: -20-60°C; Relative humidity: 10-90% (non-condensing); Operating altitude: ≤2000m; Pollution degree: 2 |
| Certifications | CE, UL, KC, UKCA compliant; Conforms to IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201 standards; Complies with 2014/35/EU (Low Voltage Directive) and 2014/30/EU (EMC Directive) |
| Software Compatibility | Fully compatible with GP-Pro EX software; Hardware compatible with GP4000 series (same panel cutout size for easy retrofit) |
| Physical Dimensions (W×H×D) | PFXET6400WAD: 205.5×150.5×45mm; PFXET6500WAD: 270.5×200.5×47mm; PFXET6700WAD: 412×268×50mm |
| Weight | PFXET6400WAD: ≤0.61kg; PFXET6500WAD: ≤0.99kg; PFXET6700WAD: 2.52kg |
| Model No. | Product Name | Display Size | Resolution | Core Distinction |
|---|---|---|---|---|
| PFXET6400WAD | ET-6400WA | 7" Wide | 800×480 (WVGA) | 32MB application memory, entry-level model |
| PFXET6500WAD | ET-6500WA | 10.1" Wide | 1024×600 (WVGA) | 64MB application memory, medium-size option |
| PFXET6600WAD | ET-6600WA | 12.1" Wide | 1280×800 (WXGA) | 64MB application memory, large-screen visualization |
| PFXET6700WAD | ET-6700WA | 15.6" Wide | 1366×768 (FWXGA) | 64MB application memory, maximum screen size for full-info display |
