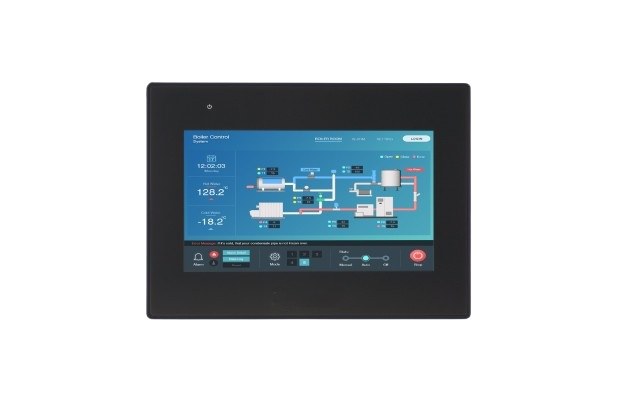

CMT-X HMI Industrial Automation IP66 Protection 7-15.6 Inches HMI Screen

Name: CMT-X HMI Industrial Automation IP66 Protection 7-15.6 Inches HMI Screen
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: cMT-X
Price: 1,250.00 USD
Availability: InStock

Product Details

Place of Origin: TAIWAN

Certification: CE、UL、RoHS

Model Number: cMT-X

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $500- $2000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    CMT-X HMI Industrial Automation, HMI Industrial Automation IP66, 15.6 Inches HMI Screen


Type:	HMI Touch Screen	Screen Size:	7 - 15.6 Inches
Warranty:	Original Manufacturer's Warranty	Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line	Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	HMI Touch Screen
Screen Size:	7 - 15.6 Inches
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

CMT-X HMI Industrial Automation IP66 Protection 7-15.6 Inches HMI Screen

High-Performance cMT-X HMI: 178° Wide View + IP66 Protection for Global Factories

cMT-X Series smart HMIs are high-performance, IIoT-ready human-machine interfaces tailored for global industrial automation. These devices feature quad-core processors, cloud integration, MQTT/OPC UA support and compatibility with over 400 industrial protocols. Designed to enable remote factory monitoring, web-based operation and real-time data sync, these HMIs feature 178° wide-view displays, IP66 front protection, PCB coating and full CE/UL/RoHS certifications, making them ideal for harsh environments across auto manufacturing, smart factories and process control industries. As a cost-effective alternative to premium brands, the cMT-X Series delivers reliable data logging, remote diagnostics and seamless integration with EasyBuilder Pro software, trusted by manufacturers worldwide for streamlining production efficiency and supporting Industrial 4.0 initiatives.

cMT-X Series Key Highlights

High-Performance Hardware: Quad-core processor, 4GB flash & 1-2GB RAM for smooth multitasking and large data storage. 7-15.6 inch HD 178° wide-view display, responsive touch operation.
Universal Connectivity: Compatible with 400+ industrial protocols (OPC UA, Modbus TCP/IP, EtherNet/IP, etc.). Seamless integration with AWS/Azure/Google IoT via MQTT for IIoT deployment.
Remote Monitoring & Control: Support WebView, cMT Viewer App & VNC remote access. Built-in EasyAccess 2.0 for secure remote diagnostics, program updates and alarm notifications.
Industrial-Grade Reliability: IP65/IP66 front protection, PCB coating & wide temperature range (-10°C to 60°C). Full CE/UL/RoHS certified for global markets.
Easy Deployment & Customization: Free EasyBuilder Pro software with 2000+ graphic libraries. Support JavaScript & Web API for personalized function expansion.

Core Specifications

Category	Details
Processor	Quad-core RISC processor; 2GB RAM optional for selected models
Memory & Storage	4GB Flash (up to 64GB for selected models), 1GB RAM (2GB optional for selected models)
Display	7-15.6 inch WVA LCD wide screen; Resolution: 800×480-1920×1080; LED backlight; Brightness: 300-500cd/㎡; 178° full viewing angle; Contrast ratio: 500:1-2500:1
Touch Panel	4-wire resistive / 7H tempered glass capacitive; Touch accuracy: ±2% (X/Y axis)
Communication Ports	2× Ethernet (10/100 Base-T), 2-3× COM ports (RS232/RS485), 1× USB 2.0 Host; SD card expansion support; Optional WiFi/4G module
Protocol Compatibility	Supports 400+ industrial protocols (OPC UA, Modbus, EtherNet/IP, etc.); MQTT compatible; Works with AWS/Azure/Google IoT
Protection Level	Front panel IP65/IP66 (NEMA4); PCB coating; Built-in power isolation
Operating Environment	Operating temp.: -10°C to 60°C; Storage temp.: -20°C to 60°C; CE/UL/RoHS certified
Power Supply	Input: 24VDC ±20%; Built-in power isolation; Power consumption: 1.0-1.3A@24VDC
Software Support	Free EasyBuilder Pro; 2000+ graphic libraries; Supports JavaScript & Web API expansion

Full Overseas Models List

Standard Series

Model	Display Size/Resolution	Key Features & Overseas Adaptability
CMT-2058XH	4.3" WVA, 1024×600	Quad-core CPU, 4GB Flash, dual Ethernet, RS485 ports; compatible with EasyAccess 2.0 and WeinCloud; popular in small-equipment applications.
CMT-2058XH(W)	4.3" WVA, 1024×600	Built-in Chromium HTML5 browser; supports web-based monitoring; WiFi expandable via M02 module; ideal for light industrial web integration.
CMT-2078X	7" TFT, 800×480	Basic IIoT functions, fan-less cooling, IP65 front protection; cost-effective for small-batch production lines.
CMT-2102X	10.1" WVA, 1024×600	Standard wide-view display, dual RS485 ports, 4GB Flash; widely used in general automation scenarios globally.
CMT-2108X2	10.1" WVA, 1280×800	Optional CODESYS PLC (IEC 61131-3), 4G/3G dongle support; flexible for hybrid HMI-PLC applications in EMEA markets.
CMT-2166X	15.6" WVA, 1920×1080 (FHD)	Large FHD display, edge-to-edge design; suitable for large-scale equipment monitoring in automotive and packaging industries.
CMT-2168X	15.6" WVA, 1920×1080 (FHD)	Upgraded standard model with enhanced data processing; compatible with 400+ industrial protocols; new hot-selling model in 2025.

Advanced Series

Model	Display Size/Resolution	Key Features & Overseas Adaptability
CMT3072X2	7" TFT, 800×480	Quad-core + dedicated 3D processor, fan-less cooling, PCB coating; IP65 front, power isolation; suitable for harsh European industrial sites.
CMT3072XH2	7" WVA, 1024×600	178° full viewing angle, industrial-grade protection; optimized for multi-angle operation in North American manufacturing plants.
CMT3072XHT	7" WVA, 1024×600	Enhanced environmental resistance (-10°C to 60°C), anti-interference design; widely adopted in outdoor or extreme-temperature applications.
CMT3072XP	7" WVA, 1024×600	MPI 187.5K support, 400+ protocol compatibility; perfect match with Siemens PLCs, popular in European process control.
CMT3092X	9.7" WVA, 1024×768	Large display with 3D graphics processing; stable operation for medium-scale production line monitoring.
CMT3102X	10.1" WVA, 1024×600	Built-in RTC, RS485 ports with MPI support; 4GB Flash for large data storage; widely used in global energy equipment.
CMT3102X(R)	10.1" WVA, 1024×600	Integrated RFID module for access control; data security enhancement for aerospace and medical device manufacturing.
CMT3108XH	10.1" WVA, 1280×800	High resolution, dual RS485 (2W) with MPI 187.5K; compatible with CODESYS PLC (OS v20220606+); mainstream in North American auto plants.
CMT3108XP	10.1" WVA, 1280×800	Global protocol optimization, SSL VPN support; ideal for cross-region remote monitoring projects.
CMT3152X	15" WVA, 1024×768	Tempered glass capacitive touch, 3D processor; suitable for heavy-duty industrial scenarios requiring durable operation.
CMT3162X	15.6" WVA, 1920×1080 (FHD)	Edge-to-edge OTP touch solution, vibration alert, high transmittance; new flagship for smart factory control centers worldwide.
CMT3218XP	21.5" WVA, 1920×1080 (FHD)	Large-format display, RTC, MPI-supported RS485 ports; designed for centralized monitoring in large-scale plants and data centers.

Special-Function Series

Model	Type/Display	Key Features & Overseas Adaptability
CMT3072XHTL	Hazardous Area, 7" WVA	Class 1, Division 2 certified; suitable for oil & gas, chemical industries in North America and Middle East.
CMT3072XPW	Hazardous Area, 7" WVA	Class 1, Division 2 certified, WiFi support; industrial-grade protection for explosive environments.
CMT3106XM	Handheld, 10.1" WVA	Portable design with wireless connectivity; ideal for on-site maintenance and mobile monitoring in global warehouses.
CMT-FHDX-820	Headless (No Display), HDMI Output	Display-less HMI with HDMI output; supports remote web control; used in embedded automation systems.
CMT-FHDX-820(W)	Headless Web HMI, HDMI Output	Built-in HTML5 browser, HDMI output; integrates with SCADA web pages for centralized control rooms.
CMT-SVRX	Headless Server HMI	Dedicated for data logging and cloud synchronization; no display, compact design for industrial cabinets.

Web-Enabled Series (HTML5 Browser Built-in)

Model	Display Size/Resolution	Key Features & Overseas Adaptability
CMT3108XP(W)	10.1" WVA, 1280×800	HTML5 browser, WiFi expansion (M02 module), dual Ethernet; seamless access to web-based control systems globally.
CMT3162X(W)	15.6" WVA, 1920×1080 (FHD)	89° optimized viewing angle, encrypted VPN remote access; ideal for web-integrated smart factories in Europe.

cMT-X Series Application Scenarios

Smart Factory & Industrial 4.0: Cloud-connected data logging, remote production line monitoring and real-time equipment diagnostics, enabling seamless integration with MES/ERP systems for smart manufacturing workflows.
Automotive Manufacturing: Control and monitor assembly lines, welding robots and painting stations; support multi-protocol communication with mainstream PLCs for high-precision production process management.
Packaging & Material Handling: Manage conveyor systems, labeling machines and packaging lines; leverage wide-temperature resistance and IP protection to adapt to harsh factory floor environments.
Food & Beverage Processing: Meet hygiene and stability requirements for mixing, filling and sterilization equipment; enable recipe management and batch data tracking for compliance with industry standards.
Water & Wastewater Treatment: Remote monitoring of pumps, valves and sensor data; support alarm push and fault diagnosis to ensure continuous operation of water treatment facilities.
Energy & Power Equipment: Monitor generator sets, solar inverters and distribution cabinets; realize data synchronization with cloud platforms for energy consumption analysis and predictive maintenance.
Logistics & Warehouse Automation: Control automated storage and retrieval systems (AS/RS) and AGV scheduling; achieve real-time data interaction between HMI and warehouse management systems.

cMT-X Series FAQs

Q: Can't download the project to HMI?

A: Check if PC and HMI are on the same IP segment (use ping command to test). For USB download, ensure USB is FAT32 formatted and files are in non-Chinese folders. For wired download, try direct connection without switches/routers. Update USB drivers if needed.

Q: HMI shows "PLC No Response" or fails to read PLC data?

A: Verify communication protocol and PLC station number match settings. For Ethernet, confirm same IP segment; for serial, check wiring. Replace cables if connection still fails.

Q: Can't connect to AWS/Azure via MQTT?

A: Check MQTT server address, port (8883 for TLS) and client ID (avoid duplicates). Ensure firewall allows the port, and HMI system time is synced (time mismatch breaks TLS).

Q: Remote access via EasyAccess 2.0 doesn't work?

A: Confirm HMI has internet access and firewall allows EasyAccess ports. Check login credentials and ensure no network devices block the connection.

Q: EB Pro software displays incorrectly (blurry/black screen)?

A: Run "DisplaySetting.exe" in EB Pro folder, select "Software render" and restart. Update your PC's display driver if the issue persists.

Q: Exported project can't be opened in EB Pro?

A: Rename the exported file with ".cxob" suffix, then use EB Pro's "File > Decompile" function to open it.

Q: Forgot the HMI system password?

A: Default password is "111111". If changed, reset to factory settings (backup project first) via system settings or dip switches.

Q: HMI lags or data reads slowly?

A: Reduce data amount on single screens. Increase PLC communication delay (0-100) or switch to Ethernet. Check CPU usage with LW9025 and close unused functions.
