Product Details
Place of Origin: Japan
Certification: CE, UL/cUL, RCM, KC, EAC, ATEX/IECEx (Zone 2/22), Marine (ABS, RINA), RoHS, WEEE
Model Number: STM6000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $500- $900
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
HMI Touch Screen
|
Screen Size:
|
4.3/7/10.1 Inch
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
HMI Touch Screen
|
|
Screen Size:
|
4.3/7/10.1 Inch
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|

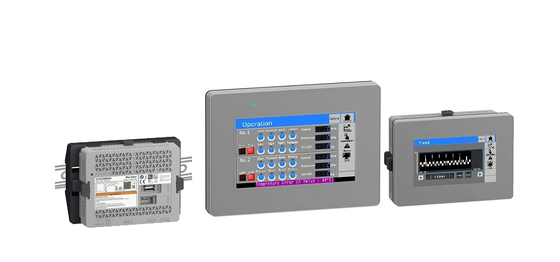

| Parameter Category | STM-6200WA (4.3-inch HMI) | STM-6400WA (7-inch HMI) | STM-6B00D (Multi-Converter) |
|---|---|---|---|
| Model Number | PFXSTM6200WAD / PFXSTM6200WADE | PFXSTM6400WAD / PFXSTM6400WADE | PFXSTM6B00D / PFXSTM6B00DE / PFXSTM6B00DIOT |
| Display | 4.3-inch widescreen, 480*272 (WQVGA), 16 million colors, white LED backlight, 16-level brightness adjustment | 7.0-inch widescreen, 800*480 (WVGA), 16 million colors, white LED backlight, 16-level brightness adjustment | No display |
| Touch Panel | Analog resistive film (single-touch), service life ≥ 1,000,000 operations | Analog resistive film (single-touch), service life ≥ 1,000,000 operations | Not applicable |
| Interfaces | COM1 (RS-232C/422/485); Ethernet *1 (IEEE802.3i/u, 10/100Base-TX); USB Type-A *1, USB Micro-B *1 | Same as STM-6200WA | Consistent with HMI models; supports multi-protocol conversion and IoT data upload (DIOT version) |
| Power Supply | DC 19.2 - 28.8 V | DC 19.2 - 28.8 V | DC 19.2 - 28.8 V |
| Memory | Application Memory: FLASH EPROM (Screen Area: 64 MB; User Font Area: 8 MB; Logic Program Area: 132 KB)Backup Memory: SRAM (Screen Area: 320 KB; Variable Area: 64 KB)Clock Backup: Non-user-replaceable primary battery | Same as STM-6200WA | Consistent with HMI models; enhanced IoT protocol storage (DIOT version) |
| Protection Rating | IP65F (front); UL 50/50E, Type 1, 4X (indoor only), 12, 13 | Same as STM-6200WA | Same as HMI models |
| Certifications | CE, UL/cUL, RCM, KC, EAC, ATEX/IECEx (Zone 2/22), Marine (ABS, RINA), RoHS, WEEE | Same as STM-6200WA | Same as HMI models |
| Operating Temperature | 0 - 50 °C | 0 - 50 °C | 0 - 50 °C |
| Installation | Tool-free snap-in fixation, φ22mm round hole, compatible with GP4000M series mounting panel | Same as STM-6200WA | Same as HMI models |
| Software Compatibility | WAD: BLUE Software; WADE: GP-Pro EX Software | WAD: BLUE Software; WADE: GP-Pro EX Software | D: BLUE Software; DE: GP-Pro EX Software; DIOT: IoT-enabled GP-Pro EX Software |
