Product Details
Place of Origin: Pro-face
Certification: CE、KC、RCM、EAC、IECEx/ATEX、IACS E10、UL、CSA、RoHS、REACH
Model Number: GP4100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $200- $2600
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
HMI Touch Screen
|
Screen Size:
|
3.4/4.3inch
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
HMI Touch Screen
|
|
Screen Size:
|
3.4/4.3inch
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|

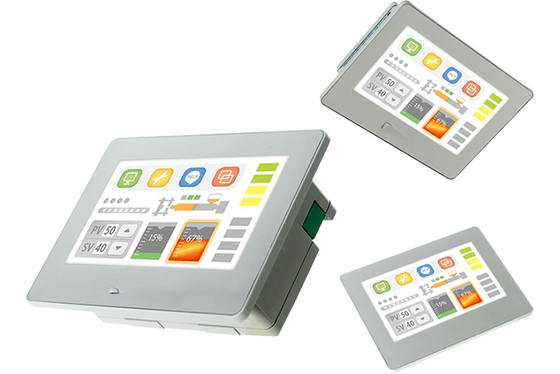

GP4100 Series Compact HMI Touch Screen - Small Body | Powerful & User-Friendly Industrial Control
| Category | Item | Details |
|---|---|---|
| Display | Screen Type | Industrial Capacitive Touch TFT LCD |
| Size | 3.5" / 4.3" (Compact Series Standard) | |
| Resolution | 480×272 / 800×480 Pixels | |
| Others | High Brightness, 85° Wide Viewing Angle; Backlight Life ≥50,000 Hours (Typical) | |
| Touch | Type | Multi-point Capacitive Touch, Glove/Wet-hand Operable |
| Adaptability | Precise Touch Recognition in Harsh Industrial Environments | |
| Performance | Processor | High-performance Industrial-grade Processor |
| User Memory | 32MB User Data Memory, 320kB Backup Memory (Typical) | |
| Configuration Method | Drag-and-drop HMI Configuration Software, Easy to Use | |
| Interfaces & Protocols | Ethernet | 10/100BASE-TX RJ45 Port ×1 |
| USB Interface | USB 2.0 Type-A ×1, USB 2.0 Mini-B ×1 | |
| Serial Port | RS-232C, RS-422/485 (D-Sub 9-pin Interface) | |
| Supported Protocols | Compatible with 100+ Industrial Protocols (Siemens, Mitsubishi, and other mainstream brands) | |
| Power Supply | Supply Voltage | Standard 24VDC, Optional 100-240VAC |
| Power Consumption | ≤8W (Typical) | |
| Reliability | Protection Rating | Front Panel IP65f (Compliant with NEMA 4X/13 Standard) |
| Operating Temperature | -10℃ ~ 50℃ (Wide Temperature Design) | |
| Immunity | Compliant with IEC 60068-2-6/2-27, Vibration/Shock Resistant | |
| Mechanical Specifications | Dimensions | Typical: W116.5×H77.5×D28mm |
| Cutout Size | Custom Compact Cutout, Suitable for Panel Thickness 1.6-5.0mm | |
| Mounting Method | Panel Embedded Mounting, Tool-free Fastening | |
| Software Features | Core Functions | Supports VNC Remote Monitoring, Data Logging, Optional Cloud Connectivity |
| Product Model | Global Code | Screen Specifications | Core Configuration | Compatible Software Version |
|---|---|---|---|---|
| GP-4114T2D | PFXGP4114T2D | 4.3-inch TFT LCD, 65,536 colors, resolution 480×272 pixels | Ethernet port, 128KB Flash EPROM backup memory, power supply 12-24VDC | GP-Pro EX Ver. 4.05 or later |
| GP-4115T2D | PFXGP4115T2D | 4.3-inch TFT LCD, 65,536 colors, resolution 480×272 pixels | RS-232C serial port, 128KB Flash EPROM backup memory, power supply 12-24VDC | GP-Pro EX Ver. 4.05 or later |
| GP-4115T3 | PFXGP4115T3D | 4.3-inch TFT LCD, 65,536 colors, resolution 480×272 pixels | RS-232C serial port, 320KB NVRAM backup memory, power supply 12-24VDC | GP-Pro EX Ver. 4.08 or later |
| GP-4116T2D | PFXGP4116T2D | 4.3-inch TFT LCD, 65,536 colors, resolution 480×272 pixels | RS-422/485 serial port, 128KB Flash EPROM backup memory, power supply 12-24VDC | GP-Pro EX Ver. 4.05 or later |
