Product Details
Place of Origin: Japan
Certification: UL、CE、ATEX、UKCA
Model Number: SP5000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $400-$1700
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|

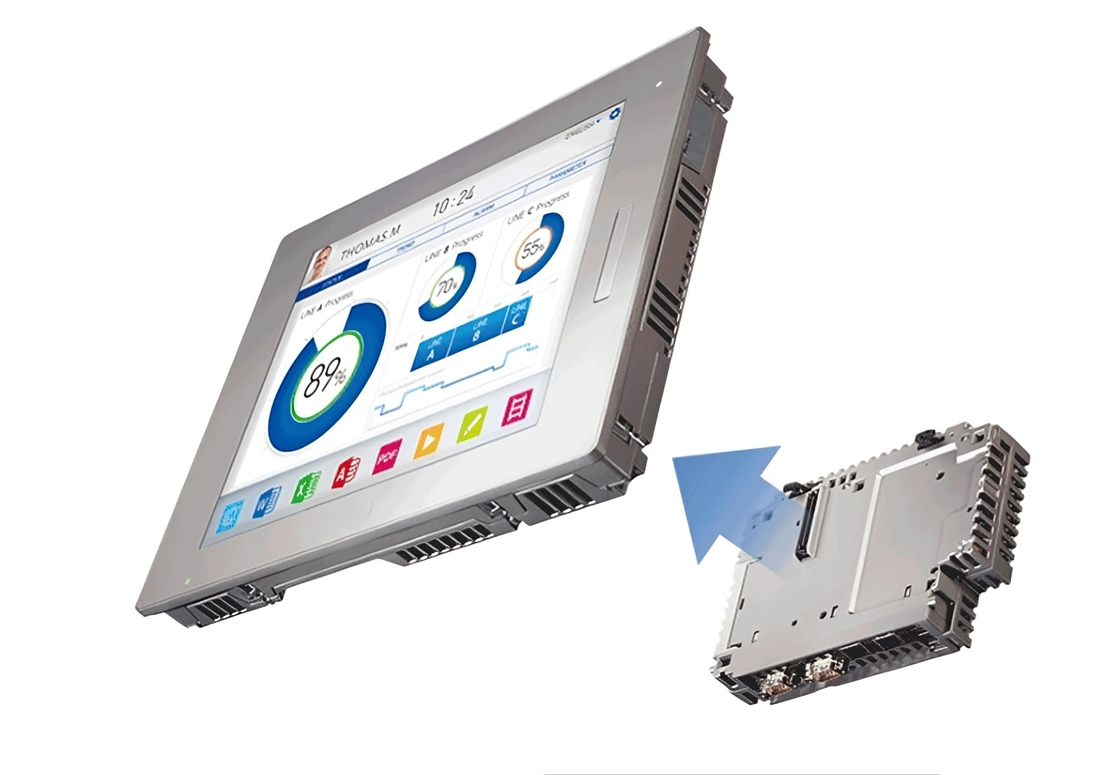

HMI Touch Screen
|
Screen Size:
|
7 - 15 Inches, 16:9 Widescreen
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
HMI Touch Screen
|
|
Screen Size:
|
7 - 15 Inches, 16:9 Widescreen
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Specification Category | Details |
|---|---|
| Display Parameters | • Size: 7-15 inches, 16:9 wide screen • Type: TFT Color LCD, 16 million colors HD display • Resolution: FWXGA (1366×768) / XGA (1024×768) / SVGA (800×600) • Touch: Projected Capacitive (Multi-touch) / Resistive (Analog), up to 5-point simultaneous touch |
| Core Performance | • Processor: ARM Cortex‑A9 • Memory: 64MB CFast Card (Program Memory), 320KB NVRAM (Data Backup) • Storage Expansion: 1× SD Card Slot |
| Communication Interfaces | • Network: Dual Ethernet Ports, Built-in Wi‑Fi • USB: 1× Front USB 2.0 (Type‑A), 1× USB 2.0 (mini‑B) • Others: Supports mainstream protocols including Modbus, EthernetIP, PROFINET, CC‑Link |
| Protection & Environment | • Protection Class: IP65F/IP66F/IP67F • Operating Temperature: 0-60℃ • Vibration & Shock Resistance: Complies with IECEN 61131‑2 Standard • Insulation Resistance: ≥10MΩ at 500Vdc (Between Power Terminals and FG Terminal) |
| Power Supply | • Input Voltage: 12-24Vdc • Power Consumption: Max. approx. 56W, Low Standby Power • Inrush Current: ≤30A |
| Certifications | UL, CE, ATEX, UKCA, etc., meeting access requirements of major global markets |
| Product Category | Product Name | Model | Part Number | Core Features | Applicable Scenarios |
|---|---|---|---|---|---|
| Premium Display | 10.4-inch | SP-5500TP | PFXSP5500TPD | XGA resolution, resistive touch | Mid-range industrial data visualization |
| Premium Display | 12-inch | SP-5600TP | PFXSP5600TPD | XGA resolution, resistive touch | Mid-to-high-end industrial monitoring and control |
| Premium Display | 12-inch | SP-5660TP | PFXSP5660TPD | XGA resolution, wireless LAN | 12-inch display scenarios requiring wireless connection |
| Premium Display | 15-inch | SP-5700TP | PFXSP5700TPD | XGA resolution, resistive touch | Centralized data display for large equipment |
| Premium Display | 15.6-inch | SP-5700WC | PFXSP5700WCD | FWXGA wide screen, HD display | HD data visualization, wide screen demand scenarios |
| Premium Display | 19-inch | SP-5800WC | PFXSP5800WCD | FWXGA wide screen, large-size display | Centralized monitoring center for large production lines |
| Advanced Display | 7-inch | SP-5400WA | PFXSP5400WAD | WVGA resolution, resistive touch | Small equipment and space-constrained scenarios |
| Advanced Display | 10.4-inch | SP-5500WA | PFXSP5500WAD | XGA resolution, resistive touch | General industrial medium-size display |
| Advanced Display | 12-inch | SP-5600WA | PFXSP5600WAD | XGA resolution, resistive touch | Operation and monitoring of medium-to-large equipment |
| Advanced Display | 12-inch | SP-5600TA | PFXSP5600TAD | XGA resolution, special touch adaptation | 12-inch scenarios with specific touch requirements |
| SP5000X Outdoor Display | 7-inch | SP-5490WA | PFXSP5490WAD / PFXSP5490FOH | WVGA, ultra-wide temperature (-30 to 65℃), high protection | Outdoor small equipment, extreme temperature environments |
| SP5000X Outdoor Display | 12-inch | SP-5690WA | PFXSP5690WAD / PFXSP5690FOH | FWXGA, ultra-wide temperature, high protection | Outdoor medium equipment, harsh environments |
| SP5000X Outdoor Display | 15.6-inch | SP-5790WA | PFXSP5790WAD / PFXSP5790FOH | FWXGA, ultra-high brightness, 99% UV blocking | Outdoor large equipment, strong light environments |
| Brand | Compatible PLC Series | Supported Protocols | Connection Method | Applicable Scenarios |
|---|---|---|---|---|
| Mitsubishi Electric | FX Series, Q Series, L Series | CC-Link, Ethernet/IP, Modbus | RS-485, Ethernet; dedicated connection cables available for direct connection | Small to medium-sized production lines, packaging machinery, automotive assembly, general machinery |
| Siemens | S7-200 SMART, S7-1200, S7-1500, S5 Series | PROFINET, Modbus TCP, AS511 | Ethernet (for S7-1200/1500), PG Port connection (for S5 Series) | Large-scale process control, intelligent manufacturing workshops, energy management systems |
| Allen-Bradley (Rockwell) | Micro800, CompactLogix, ControlLogix, SLC 500, PLC-5 | Ethernet/IP, DF1, ControlNet | Ethernet (Ethernet/IP protocol), RS-232C (DF1 protocol) | Automotive production lines, food and beverage processing, heavy industry control |
| Omron | CP Series, CJ Series, CS Series, NJ Series | CompoWay, Modbus, Ethernet/IP | RS-232C (dedicated cable), Ethernet | Electronic component assembly, small automation equipment, logistics sorting systems |
| Schneider Electric | Modicon M241, M251, M262, Premium Series | Modbus TCP, Ethernet/IP | Ethernet; compatible with SP5000's Windows embedded system for data integration | Building automation, energy monitoring, water treatment projects |
| Yaskawa | J Series, MP Series (MP2000/MP3000) | MECHATROLINK-III, Modbus | Ethernet, dedicated servo communication interface | Motion control systems, robot integration, precision machining equipment |
| Rexroth | IndraControl Series, CS950, AC2500 | CANopen, BUEP Protocol | CAN bus, Ethernet | Hydraulic control systems, heavy machinery, automotive chassis production |
| WAGO | 750 Series, 751 Series | Modbus TCP, PROFINET | Ethernet; supports OPC UA for upper-layer system integration | Distributed control systems, intelligent building, renewable energy projects |
