Model Number: XLQ7
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $280 - $430
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Parameter Item | Detailed Specification |
|---|---|---|

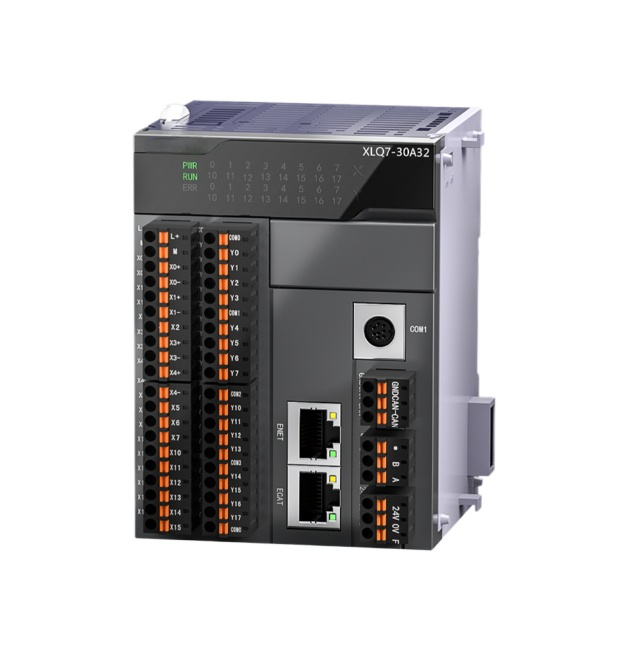

| Basic Core | Model | XLQ7 Series EtherCAT Bus Controller |
| Processor | Industrial-grade high-performance core | |
| Basic Instruction Execution Speed | 0.01-0.03 μs | |
| Program Capacity | 4 MB | |
| Real-time Clock | Supported | |
| Motion Control | EtherCAT Controlled Axes | A16 (16 Axes) / A32 (32 Axes) |
| Bus Synchronization Cycle | 250 μs (4 Axes), 500 μs (8 Axes), 1 ms (16 Axes), 2 ms (32 Axes) | |
| Motion Modes | Point-to-point motion, linear/circular interpolation, electronic cam, follow-up control | |
| I/O & High-speed Functions | Built-in DI Points | 14 points (NPN type) |
| Built-in DO Points | 10/14 points (transistor output) | |
| High-speed Pulse Output | 4 channels, 100 kHz | |
| High-speed Counter Input | 4 channels, 200 kHz | |
| Communication Interfaces | Main Communication | EtherCAT (Master Station) |
| Auxiliary Communication | RS232, RS485, RJ45 (Ethernet), CANopen/CANbus, USB, Type-C, SD Card Expansion | |
| Supported Protocols | Modbus RTU/ASCII, Modbus TCP, TCP/IP, Ethernet/IP, OPC UA/DA, UDP | |
| Structural Dimensions | Design Form | Compact Card-type |
| Dimensions (mm) | 83.6 × 110 × 25 (Typical value, subject to actual product) | |
| Mounting Method | DIN Rail Mounting | |
| Electrical Specifications | Power Supply | DC 24 V (±10%) |
| Power Consumption | ≤15 W (Typical value) | |
| Environmental Adaptability | Operating Temperature | 0-60 ℃ |
| Operating Humidity | 5%-95% RH (No condensation) | |
| Storage Temperature | -20-85 ℃ | |
| Protection Grade | IP20 | |
| Anti-interference | Industrial-grade EMC Standard | |
| Expansion Capability | Expansion Method | Left expansion, right expansion, remote I/O |
| Maximum Expandable I/O | Supports multi-module expansion, suitable for complex field applications |
| Product Category | Model | Core Configuration | Key Specifications | Overseas Application Scenarios |
|---|---|---|---|---|
| Main Controller Units | XLQ7-24A8 | 8-axis EtherCAT master controller | Program capacity: 4 MB; Basic instruction speed: 0.01-0.03 μs; Built-in DI 14 points (NPN), DO 10 points (transistor); Supports RS232/RS485/Ethernet/CANopen | Small automation equipment, single-machine 8-axis precision positioning (e.g., small CNC lathes, desktop robots) |
| XLQ7-24A16 | 16-axis EtherCAT master controller | Program capacity: 4 MB; Basic instruction speed: 0.01-0.03 μs; Built-in DI 14 points (NPN), DO 14 points (transistor); Bus sync cycle: 1 ms | Medium-sized production lines, multi-axis linkage (e.g., packaging machinery, textile printing equipment) | |
| XLQ7-30A32 | 32-axis EtherCAT master controller | Program capacity: 4 MB; Basic instruction speed: 0.01-0.03 μs; Built-in DI 14 points (NPN), DO 14 points (transistor); Bus sync cycle: 2 ms | Complex multi-axis systems (e.g., automated assembly lines, 3C electronic manufacturing equipment) | |
| XSLQ7-24A8 | Enhanced 8-axis EtherCAT controller | Same core parameters as XLQ7-24A8; Optimized EMC performance for harsh industrial environments | High-interference industrial sites, overseas outdoor equipment supporting projects | |
| XSLQ7-24A16 | Enhanced 16-axis EtherCAT controller | Same core parameters as XLQ7-24A16; Reinforced anti-vibration design + extended operating temperature range | Heavy industry supporting (e.g., metallurgical auxiliary equipment, heavy-duty conveyor systems) | |
| XSLQ7-30A32 | Enhanced 32-axis EtherCAT controller | Same core parameters as XLQ7-30A32; Industrial-grade dustproof and moisture-proof optimization | High-demand scenarios (e.g., automotive component assembly lines, precision electronic manufacturing) | |
| Digital I/O Expansion Modules | XLE-8X8YT | 8-input (NPN) + 8-output (transistor) expansion module | Power supply: DC 24V; Compatible with all XLQ7 main units; Right-side expansion installation | Extending switch I/O points for small to medium-sized equipment |
| XLE-8X8YR | 8-input (NPN) + 8-output (relay) expansion module | Power supply: DC 24V; Relay output for high-voltage load control; Supports 10-16 modules cascading | Equipment requiring high-voltage output (e.g., electromagnetic valves, contactor control) | |
| XLE-16X16YT | 16-input (NPN) + 16-output (transistor) expansion module | Power supply: DC 24V; High-speed response (100 kHz); PNP input optional | Medium-sized production lines needing massive I/O expansion | |
| XLE-16PX16YR | 16-input (PNP) + 16-output (relay) expansion module | Power supply: DC 24V; PNP input compatibility; Relay contact capacity: 5A/250VAC | Overseas equipment adopting PNP input standards (e.g., European-style automation devices) | |
| XLE-32X32YT | 32-input (NPN) + 32-output (transistor) expansion module | Power supply: DC 24V; High-density I/O integration; DIN rail mounting | Large-scale production lines with intensive I/O demands (e.g., smart factory assembly lines) | |
| Special Function Modules | XL-ETR | Terminal resistor module | Matching EtherCAT bus impedance; Ensures stable long-distance communication | Long-distance bus transmission scenarios (e.g., large workshop distributed control systems) |
