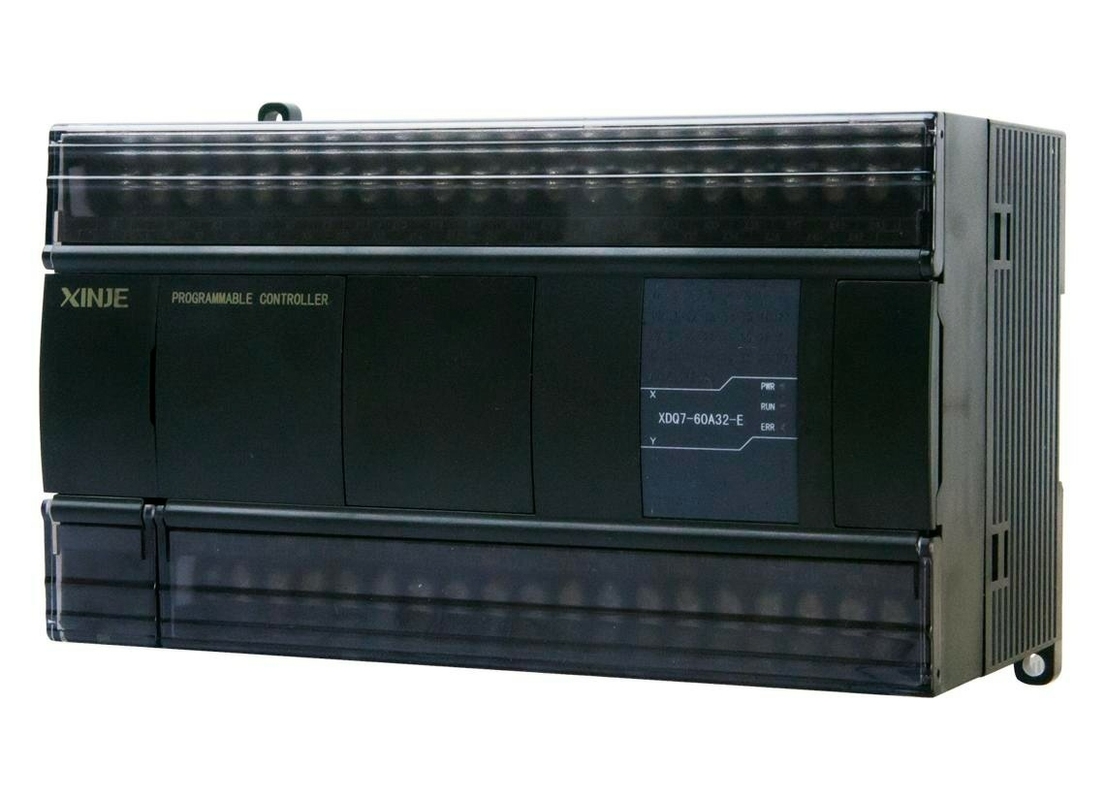

XDQ7 EtherCAT Bus Controller: High-Speed & Stable Performance for Diverse Industrial Needs
The XDQ7 EtherCAT Bus Controller is a high-performance industrial automation solution engineered for fast, reliable data transmission and stable operation in complex scenarios. Leveraging the efficiency of the EtherCAT bus protocol, it delivers ultra-low latency communication to ensure precise coordination of connected devices, while its robust industrial-grade design guarantees consistent performance even in harsh environments. Whether for assembly lines, packaging machinery, material handling systems or other customized automation setups, this controller seamlessly meets the diverse needs of modern industrial applications, empowering businesses to optimize productivity and operational efficiency.
Product Features
- High-Speed EtherCAT Bus Communication: Equipped with native EtherCAT bus protocol, it supports millisecond-level data transmission and device synchronization, meeting the requirements of high-real-time industrial control scenarios.
- Industrial-Grade Stable Performance: Adopts anti-electromagnetic interference design, suitable for a wide temperature working environment of -20℃~60℃, and can operate continuously and stably in harsh industrial conditions with humidity and dust.
- Versatile Adaptability: Compatible with multi-brand servos, sensors, frequency converters and other peripherals; supports multiple programming methods including ladder diagram, function block and structured text, flexibly matching different automation scenarios.
- Compact Hardware Design: Integrates rich I/O interfaces and expansion slots, featuring small size and easy installation, and can be seamlessly embedded into small control cabinets or distributed control nodes.
Product Advantages
- Boost Production Efficiency: High-speed bus communication reduces equipment response latency and shortens production cycle time, helping to increase production line capacity by 15%~20%.
- Cut Operation & Maintenance Costs: The robust industrial-grade design greatly reduces equipment failure rate and eliminates frequent maintenance; compatibility with multi-brand peripherals lowers the cost of equipment replacement and upgrading.
- Flexibly Meet Customization Needs: With versatile programming and peripheral adaptability, it can satisfy personalized automation solutions without additional adapter modules, shortening project delivery cycles.
- Cost-Effective Solution: Achieves the performance of high-end bus controllers at a more economical cost, and has significant cost-performance advantages compared with imported counterparts, reducing the cost of enterprise automation transformation.
Technical Specifications
| Parameter Category |
Details |
| Bus Protocol |
Native EtherCAT, supports CoE, SoE, EoE; communication cycle as low as 1ms |
| CPU Performance |
32-bit industrial CPU, clock frequency ≥ 800MHz; 1GB DDR4 RAM, 4GB flash memory |
| I/O Configuration |
Built-in 16 digital inputs, 16 digital outputs; 4-channel analog input (0-10V/4-20mA), 2-channel analog output |
| Expansion Capability |
Up to 32 expansion modules; supports digital, analog, temperature, and high-speed counting modules |
| Working Environment |
Operating temperature: -20℃ ~ 60℃; Storage temperature: -40℃ ~ 85℃; Humidity: 5% ~ 95% RH (non-condensing) |
| Power Supply |
DC 24V (18V~30V wide voltage input); power consumption ≤ 15W |
| Protection Grade |
IP20 (control cabinet installation); anti-electromagnetic interference (EMC Level 3) |
| Programming Software |
Supports IEC 61131-3 standard (Ladder Diagram, Function Block Diagram, Structured Text, etc.) |
| Dimensions |
120mm * 80mm * 60mm (L*W*H); DIN rail mounting |
| Certifications |
CE, FCC, RoHS compliant |
Product Model Comparison
| Model No. |
Core Configuration |
I/O Capacity |
Communication & Expansion |
Target Application Scenarios |
Certifications |
| XDQ7-100 |
32-bit Industrial CPU (800MHz), 512MB DDR4, 2GB Flash |
Built-in: 16DI/16DO, 2AI/1AO; No expansion slots |
Native EtherCAT (CoE/SoE/EoE), 1x Gigabit Ethernet; Supports IEC 61131-3 basic languages |
Small-scale automation, single-machine control (e.g., small packaging machines, standalone test equipment) |
CE, FCC, RoHS |
| XDQ7-200 |
32-bit Industrial CPU (1GHz), 1GB DDR4, 4GB Flash |
Built-in: 16DI/16DO, 4AI/2AO; Up to 8 expansion modules |
Native EtherCAT (1ms cycle), 2x Gigabit Ethernet; Compatible with Modbus TCP/RTU |
Medium-sized production lines (e.g., assembly lines, material handling systems) |
CE, FCC, RoHS |
| XDQ7-300 |
Dual-core Industrial CPU (1.2GHz), 2GB DDR4, 8GB Flash |
Built-in: 32DI/32DO, 8AI/4AO; Up to 16 expansion modules |
EtherCAT + Ethernet/IP dual-protocol; Multi-axis motion control (up to 16 axes) |
Complex automation (e.g., multi-axis machining tools, robotic workcells) |
CE, FCC, RoHS, UL |
| XDQ7-300-EX |
Dual-core Industrial CPU (1.2GHz), 2GB DDR4, 8GB Flash |
Built-in: 32DI/32DO, 8AI/4AO; Up to 16 expansion modules |
Same as XDQ7-300; Enhanced anti-interference design |
Harsh environment applications (e.g., high-temperature workshops, outdoor industrial equipment) |
CE, FCC, RoHS, UL, IEC 60068 |
| XDQ7-400 |
Quad-core Industrial CPU (1.5GHz), 4GB DDR4, 16GB Flash |
Built-in: 64DI/64DO, 16AI/8AO; Up to 32 expansion modules |
EtherCAT (0.5ms cycle) + Profinet gateway; Redundant power input |
Large-scale integrated systems (e.g., automotive assembly plants, smart factory central control) |
CE, FCC, RoHS, UL, TÜV |
Industry Applications & Scenarios
- Automotive Manufacturing: Ideal for stamping, welding and final assembly lines in automotive plants, enabling millisecond-level synchronized operation of robotic arms, conveyor lines and testing equipment.
- 3C Electronics Production: Applied to shell polishing, screen lamination and chip soldering equipment for mobile phones and laptops, supporting seamless integration with multi-brand servo systems and vision inspection modules.
- Packaging & Labeling Industry: Matches high-speed packaging lines for food, beverage and daily chemical products, accurately coordinating the operation of filling machines, carton sealers and labeling machines.
- Material Handling & Logistics: Deployed in AGV scheduling systems and automated storage and retrieval system (AS/RS) stackers in smart warehouses, rapidly responding to goods inbound and outbound instructions.
- Plastic & Rubber Processing: Used for closed-loop control of injection molding machines and extruders, adjusting temperature, pressure and speed parameters in real time to improve the molding precision of plastic products.
- Textile Machinery: Suitable for knitting machines, dyeing and printing machines and non-woven fabric production lines, precisely controlling key processes such as yarn feeding, tension adjustment and dyeing temperature.
- Metal Processing & CNC Machinery: Applied to motion control of small CNC machine tools, laser cutting machines and bending machines, supporting multi-axis linkage and complex trajectory planning.
- Solar & Semiconductor Equipment: Adapts to string welders and laminators in photovoltaic module production, realizing precise grabbing and welding of solar cells.
Common Installation & Usage Questions
Q1: The controller fails to establish EtherCAT communication with servo drives from other brands. What should I do?
A: First, check if the servo drive supports CoE (CANopen over EtherCAT) protocol. Then, confirm the node address of the drive is not duplicated with other devices on the bus. If it still doesn't work, go to the controller's programming software and import the ESI (EtherCAT Slave Information) file of that specific servo model.
Q2: The controller keeps showing "power supply abnormal" alarms in the workshop, but the power cord is connected properly. Why?
A: This is usually caused by unstable voltage in overseas workshops. The XDQ7 requires DC 24V input, but if the voltage fluctuates beyond 18V-30V, the alarm will pop up. Try adding a DC voltage stabilizer or an uninterruptible power supply (UPS) at the input end.
Q3: The controller works fine in the lab, but it crashes frequently after being installed on the production line with heavy dust and vibration. How to fix this?
A: First, make sure you're using the DIN rail mounting clips that come with the controller. For dusty workshops, install a dust cover on the controller's I/O ports. If the environment is extremely harsh, go for the XDQ7-300-EX model with enhanced anti-interference and dust-proof design.
Q4: Can we program the XDQ7 with software in languages other than English? Will it affect the controller's performance?
A: Yes, the programming software supports multiple languages like Spanish, German, and French. This language switch only changes the interface display; it won't affect the controller's operation speed, communication latency, or program execution at all.
Q5: The controller's analog input can't read the value of the sensor from a local area. Is there a tool to point to the sensor?
A: First, confirm the sensor's output type matches the controller's analog input channel. If the type is correct, use the built-in diagnostic function in the programming software. If the raw value is unstable, add a signal isolator between the sensor and the controller.
Q6: What should we do if the controller fails to pass the local fire safety inspection?
A: Focus on two points: first, make sure the controller has the local certification required by the region. Second, check the wiring of the power supply and signal lines: separate the AC power lines from the DC signal lines to avoid electromagnetic interference.
Q7: The controller's expansion modules can't be recognized after being added on-site. How to troubleshoot?
A: First, turn off the controller's power before installing expansion modules. Then, check if the expansion bus connector is plugged in tightly. After powering on again, go to the software's "Hardware Configuration" and scan for new modules.
Product Certifications & Quality Assurance
Global Market Certification Compliance
- EU Market: CE certification (compliant with Low Voltage Directive LVD and Electromagnetic Compatibility Directive EMC), RoHS environmental certification.
- North American Market: UL certification, FCC certification. Passed the stringent electrical safety and electromagnetic interference tests in North America.
- Asia-Pacific Market: PSE certification (Japan), SAA certification (Australia/New Zealand).
- Special Industry Certifications: The XDQ7-300-EX model has additional IEC 60068 certification for harsh environment resistance.
Full-Process Quality Control System
From R&D to factory delivery, a multi-level quality inspection standard is established to ensure product stability and reliability. Core components are sourced from international first-tier brands and undergo rigorous testing including high-low temperature resistance and voltage withstand tests. Each controller undergoes In-Circuit Test (ICT) and Functional Test (FCT) with 72-hour continuous operation simulation.
After-Sales Quality Assurance Services
The entire product series enjoys 2-year global warranty with localized quality support provided for overseas customers to eliminate their worries.
