XL5E Ethernet Controller: Small Footprint, High Performance for Versatile Applications
-
Highlight

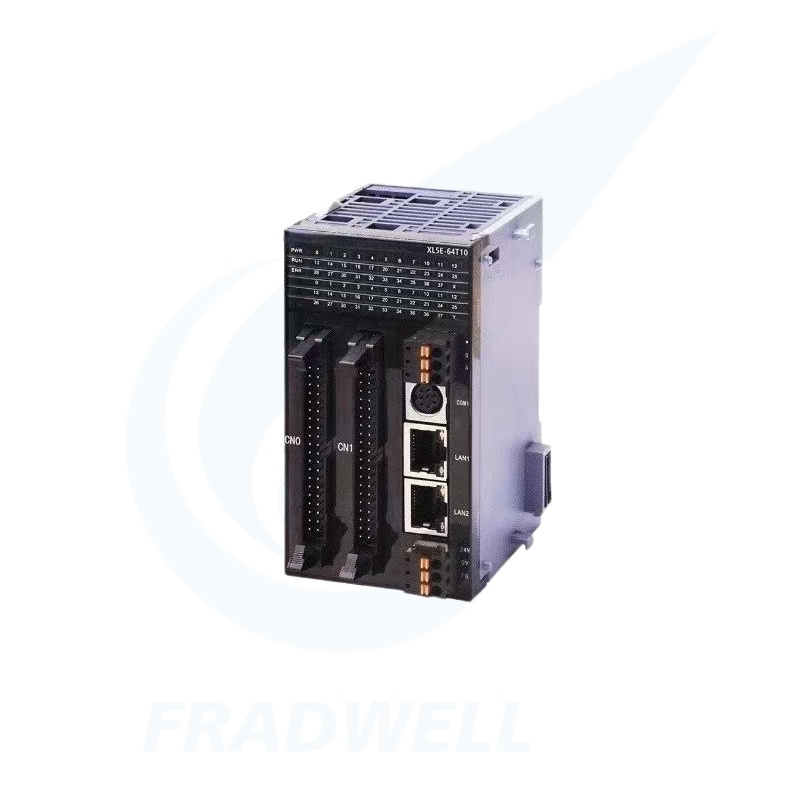

XINJE XL5E Ethernet PLC controller
,compact industrial PLC controller
,high-performance Ethernet controller for automation
-
TypeProgrammable Logic Controller
-
WarrantyOriginal Manufacturer's Warranty
-
PakageOriginal Pakage
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginChina
-
CertificationCE、UL、RoHS、KC 、CCC
-
Model NumberXL5E
-
Minimum Order Quantity1
-
Price$95- $250
-
Delivery Time3-5workdays
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,
XL5E Ethernet Controller: Small Footprint, High Performance for Versatile Applications
XL5E Ethernet Controller: Compact Design for High-Performance Industrial Automation
The XL5E Ethernet Controller is a high-performance PLC engineered for modern industrial automation scenarios, featuring a compact, space-saving design that fits seamlessly into tight installation environments. Combining its small footprint with robust operational capabilities, this controller delivers reliable, efficient performance to meet diverse application needs—from factory assembly lines and machinery control to process automation systems. Equipped with advanced Ethernet connectivity, it ensures seamless data transmission and integration with existing industrial networks, making it a versatile, cost-effective solution for businesses seeking to optimize productivity without compromising on installation flexibility.
Product Features
- Compact & Space-Saving Design: Ultra-small footprint enables easy installation in confined industrial spaces without sacrificing functional layout
- High-Performance Core: Powerful processing chip supports fast logic execution and real-time data processing for complex control sequences
- Advanced Ethernet Connectivity: Integrated enhanced Ethernet ports support standard industrial communication protocols for seamless data exchange
- Versatile Application Compatibility: Compatible with wide range of industrial sensors, actuators, and expansion modules
Product Advantages
- Space Optimization & Cost Reduction: Small size reduces control cabinet space requirements and installation costs
- Superior Performance for Complex Tasks: Outperforms conventional controllers in processing speed and response time
- Simplified Network Integration: Plug-and-play Ethernet functionality reduces debugging time and technical requirements
- Strong Adaptability & Lower Replacement Costs: Wide compatibility minimizes downtime during equipment upgrades
Technical Specifications
| Parameter Category | Parameter | Specification | Remarks |
|---|---|---|---|
| Basic CPU Performance | Program Capacity | 1 MB | FlashROM, power-off retention with 3V coin battery |
| Basic CPU Performance | Basic Instruction Execution Speed | 0.01-0.03 μs (LD instruction) | ~2-3× faster than XDM series |
| Basic CPU Performance | Data Register | 100,000 words (D register); 14,192 words (FD register) | Adequate for large data processing |
| Basic CPU Performance | Max Expandable I/O Points | 576 points | Supports left & right expansion modules |
| Digital I/O (Core Models) | XL5E-16T | 8 DI (DC24V, NPN/PNP), 8 DO (transistor, NPN/PNP) | Smallest model for compact setups |
| Digital I/O (Core Models) | XL5E-32T4 | 18 DI, 14 DO; 4×100 kHz pulse outputs | Balanced for mid-range automation |
| Digital I/O (Core Models) | XL5E-64T10 | 32 DI, 32 DO; 10×100 kHz pulse outputs | High-pulse for multi-axis control |
| High-Speed Processing | High-Speed Counter | 3-10 channels; 80 kHz (single-phase), 50 kHz (AB phase) | Adapts to diverse motion control needs |
| High-Speed Processing | Pulse Output | 2-10 channels, 100 kHz max | Supports up to 10-axis positioning |
| Communication Interfaces | Built-in Ports | 1×RS232, 1×RS485, 2×RJ45 Ethernet (RJ45) | Ethernet supports Modbus TCP, X-NET |
| Communication Interfaces | Supported Protocols | Modbus ASCII/RTU, Modbus TCP, X-NET fieldbus | Seamless integration with HMI/inverters |
| Mechanical & Environmental | Dimensions (W×D×H) | 63.1 × 111.5 × 85 mm | Ultra-compact, fits standard DIN rails |
| Mechanical & Environmental | Protection Rating | IP20 | Suitable for control cabinet installation |
| Mechanical & Environmental | Operating Temperature | 0-55 °C; Storage: −10-60 °C | Industrial temperature range |
| Mechanical & Environmental | Operating Humidity | 5%-95% RH (non-condensing) | Stable in humid industrial environments |
| Mechanical & Environmental | Certification | CE | Compliant with EU industrial standards |
| Expansion & Programming | Expansion Modules | Up to 16 modules | Flexible for function expansion |
| Expansion & Programming | Programming Software | XDPPro (V3.8.0b or later) | Supports ladder logic & instruction list |
Product Model Comparison
| Model | Core Configuration | Key Features | Overseas Adaptation Highlights |
|---|---|---|---|
| XL5E-16T | 8-point DI (DC24V, NPN/PNP compatible), 8-point transistor DO, DC24V power supply | 3-channel high-speed counter, 2-channel 100kHz high-speed pulse; 1×RS232, 1×RS485, 2×RJ45 Ethernet ports | Ultra-compact size, ideal for space-constrained equipment; CE certified |
| XL5E-32T | 16-point DI, 16-point transistor DO, DC24V power supply | Basic high-speed counting & pulse output; dual Ethernet ports + dual serial ports, supports Modbus TCP/X-NET | Balanced I/O configuration, fits general machinery control |
| XL5E-32T4 | 18-point DI, 14-point transistor DO, DC24V power supply | 4-channel 100kHz high-speed pulse output, entry-level multi-axis positioning; supports left/right expansion modules | Cost-effective choice for mid-range automation; easy debugging |
| XL5E-32PT4 | 16-point DI, 16-point transistor DO, DC24V power supply | 4-channel high-speed pulse, supports left-side ED expansion modules; OPC UA/DA, UDP protocols | Meets equipment networking needs in Europe and South America |
| XL5E-32T-VP | 16-point DI, 16-point transistor DO, DC24V power supply | Supports EtherCAT, OPC UA/DA, enhanced industrial Ethernet interaction | Ideal for high-end motion control scenarios |
| XL5E-64T6 | 32-point DI, 32-point transistor DO, DC24V power supply | 6-channel high-speed pulse output, 6-channel AB-phase high-speed counting | Suitable for multi-axis linkage equipment |
| XL5E-64T10 | 32-point DI, 32-point transistor DO, DC24V power supply | 10-channel 100kHz high-speed pulse, 10-channel AB-phase high-speed counting; high-speed communication via dual Ethernet ports | Flagship model for multi-axis control, fits large-scale automated production lines |
Industry Applications & Scenarios
Packaging Machinery (Europe, Southeast Asia, Middle East)
Small-medium vertical form-fill-seal machines, labeling lines, carton sealers, and flow-wrap equipment for food, pharmaceuticals, and consumer goods. Models: XL5E-16T (compact), XL5E-32T4/32PT4 (4-channel high-speed pulses).
Logistics & Material Handling (Europe, North America, India)
Conveyor sorting lines, AGV/AMR navigation controls, palletizers, and warehouse shuttle systems. Models: XL5E-32T (dual Ethernet), XL5E-64T6 (6-axis pulse control).
General Machinery (Southeast Asia, Middle East, South America)
Small CNC lathes, woodworking routers, metal bending/rolling machines, and textile winding frames. Models: XL5E-32T (balanced I/O), XL5E-64T10 (10-channel pulses).
Food & Beverage (Europe, North America, Southeast Asia)
Bottle rinsers, filling machines, canning lines, and small-batch dairy processing equipment. Models: XL5E-32PT4 (OPC UA/DA), XL5E-16T (small footprint).
Renewable Energy (Europe, Australia, Middle East)
Solar panel string inverters, small wind turbine pitch controls, and battery module assembly lines. Models: XL5E-32T-VP (EtherCAT), XL5E-64T6 (6-channel counting).
Medical Device & Lab Equipment (Europe, North America)
Small IV fluid filling machines, sample sorting systems, and bench-top diagnostic equipment. Models: XL5E-16T (ultra-compact), XL5E-32PT4 (precision fluid control).
Agricultural Machinery (Southeast Asia, Australia, South America)
Greenhouse ventilation/irrigation controls, small combine harvesters, and fertilizer spreaders. Models: XL5E-32T (dual serial ports), XL5E-16T (low power).
Common Installation & Operation Solutions
Incorrect Power Supply Connection (230VAC to 24VDC)
Cut off power and replace damaged modules. Use multimeter to verify terminal labels before wiring and add warning labels. Install reverse-polarity protection fuse to prevent secondary damage.
False I/O Signal Triggering in Humid Climates
Upgrade cabinet to IP54 rating, install dehumidifier. Separate power and signal cable routes, maintain ≥200mm distance between AC and DC wires. Ensure proper grounding with resistance <4Ω.
EtherCAT Communication Timeouts
Confirm XL5E model supports EtherCAT. Set slave addresses and communication cycle correctly. Check terminal resistors and use shielded Ethernet cables for bus lengths over 100m.
Program Loss During Power Outages
Enable "Data Retention" option in programming software. Set registers/timers to "power-off retention" mode. Check EEPROM status and format if necessary.
OPC UA Connection Failures
Update to latest firmware. Enable OPC UA server on PLC with correct port (default 4840) and security policy. Match endpoint URL and credentials on client side.
Motor Jitter and Positioning Inaccuracy
Verify pulse output channels match servo drives. Lower pulse frequency to drive's rated range and add acceleration/deceleration ramps. Use twisted-shielded cables and proper grounding.
High-Speed Counter Inaccuracy
Select correct counting mode and filter time. Check sensor mounting and coaxial alignment. Use oscilloscope to test signals and add isolators if noise is present.
Loud Noise and Output Point Faults
Add freewheeling diodes for inductive loads and current-limiting resistors for capacitive loads. Choose appropriate module type for load characteristics. Install EMI filters.
Certifications & Quality Assurance
CE Certification: Complies with EU Low Voltage Directive and Electromagnetic Compatibility Directive for European market access
UL Certification: UL 508 Industrial Control Equipment Safety Certification for North American applications
RoHS Certification: Complies with EU RoHS 2.0 Directive for environmental protection requirements
KC Certification (Optional): Available for South Korean market compliance
CCC Certification: Meets China's mandatory product certification requirements
Quality Control & Reliability
Manufacturing follows ISO 9001:2015 Quality Management System with 12 inspection procedures. Key components sourced from international brands. Reliability features include: MTBF ≥50,000 hours, vibration resistance (5~500Hz), IP20 protection rating. Global 18-month warranty provided.
