Highlight:
                                                                                                                                                            XINJE XD1 economical PLC controller, basic automation PLC controller, fast speed industrial PLC controller


Type:	Programmable Logic Controller	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Programmable Logic Controller
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

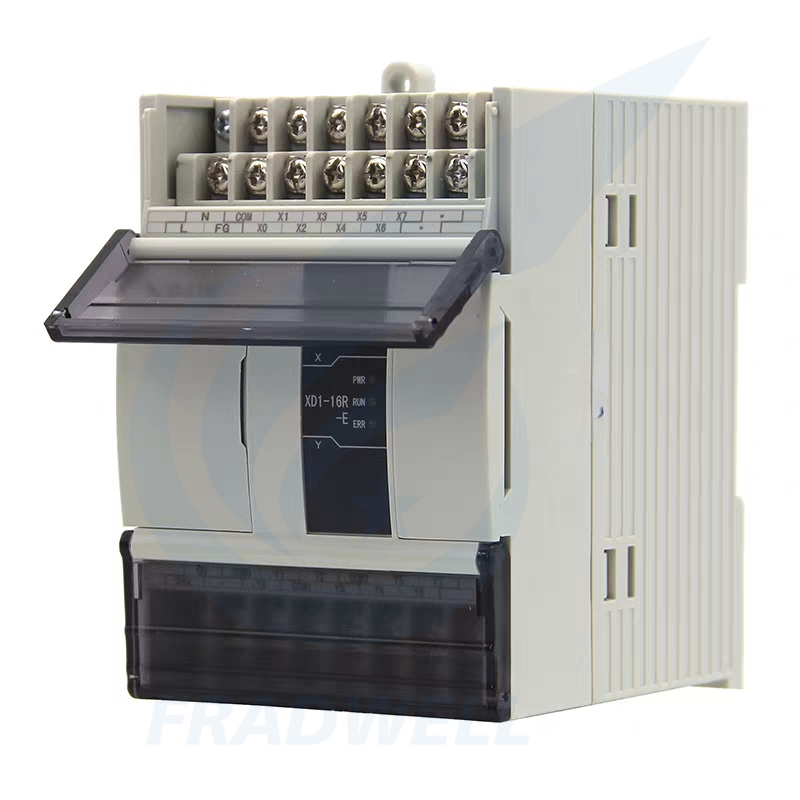

XD1 Economical PLC Controller: Fast Speed, Stable Performance for Basic Automation Needs

XD1 Economical PLC Controller: Fast Speed, Stable Performance for Basic Automation Needs

The XD1 Economical PLC Controller delivers fast response speed and consistent, reliable performance, perfectly tailored for basic automation scenarios. Designed with cost-effectiveness in mind, it provides an ideal balance between affordability and functionality for core control tasks in small-scale production lines, simple machinery operation, and basic process control.

Key Features

Cost-Effective Design: Streamlines non-core functional modules to focus on basic control requirements, achieving cost-effective pricing for small and medium-sized automation projects
High-Speed Response: Optimized computing core with fast instruction execution speed for quick processing of digital and analog I/O signals
Stable Operation: Industrial-grade hardware design with strong anti-electromagnetic interference capability, suitable for harsh workshop environments
Easy Operation: User-friendly programming interface compatible with mainstream industrial control software, requiring minimal training

Product Advantages

Outstanding Cost Efficiency: Delivers stable industrial-grade control capability at an entry-level price with reduced maintenance costs
Precise Scenario Adaptation: Tailor-made for simple automation needs without redundant functions, perfect for small production lines and standalone equipment
Low Operation Difficulty: Concise structural design with intuitive fault diagnosis and comprehensive supporting documentation
Flexible Expansion: Supports basic I/O module expansion for scalable control solutions as production needs grow

Technical Specifications

Power Supply	Input Voltage: 19-30VDC (typical 24VDC) Input Current: 0.85A (at 19VDC, full load output)
I/O Configuration	Onboard I/O: 14-60 points across models Input Points: 8-36 points; Output Points: 6-24 points Expansion: Supports up to 7 modules, maximum 128 I/O points
High-Speed I/O	High-Speed Input: 2 channels @ 50kHz + 4 channels @ 10kHz High-Speed Output: 3 channels @ 100kHz (transistor type)
Processing & Storage	Instruction Speed: 0.2μs Program Capacity: 16K steps Data Registers: 8000 D registers Memory: FLASH permanent storage
Communication	Ports: 1 x RS232, 2 x RS485 Protocols: Modbus Master/Slave, Programming Port Protocol, N:N Protocol
Operating Environment	Temperature: -10°C to 60°C Protection: Industrial-grade anti-EMI design Suitable for dusty, high/low temperature environments
Certifications	CE, RoHS certified

Model Comparison

Model No.	Core Configuration	Output Type	Key Parameters	Applications
XD1-1406TR	8 input, 6 output points	Transistor (Sink)	16K steps, 8000 D registers	Small standalone equipment
XD1-1406RR	8 input, 6 output points	Relay	16K steps, 24VDC power	Low-frequency start-stop devices
XD1-2416TR	16 input, 8 output points	Transistor (Sink)	16K steps, 4 module expansion	Small production lines
XD1-2416RR	16 input, 8 output points	Relay	16K steps, anti-EMI design	Basic process control
XD1-3624TR	24 input, 12 output points	Transistor (Sink)	24K steps, 7 module expansion	Medium-sized automation
XD1-3624RR	24 input, 12 output points	Relay	24K steps, wide temp range	Harsh workshop equipment
XD1-6036TR	36 input, 24 output points	Transistor (Sink)	32K steps, 128 max I/O	Large-scale basic control
XD1-6036RR	36 input, 24 output points	Relay	32K steps, uninterrupted operation	Heavy-duty basic control

Application Areas

Small Food Packaging: Sealing machines, labeling machines with precise start-stop control
Woodworking Machinery: Panel saws, edge banding machines with dust resistance
Warehousing & Logistics: Sorting conveyors, cargo lifting platforms for small warehouses
Injection Molding: Mold clamping and feeding control for small machines
Agricultural Machinery: Irrigation pumps, seeders for family farms
Metal Processing: Punching machines, bending machines with anti-EMI performance
Commercial Kitchen Equipment: Ovens, dishwashers for catering operations

Installation & Usage FAQ

Q: The PLC fails to power on after connecting to local power supply?

A: Check if local voltage matches the 19-30VDC input range. Use a regulated 24VDC power supply and verify correct polarity connection.

Q: PLC receives input signals but output doesn't respond?

A: Confirm output type matches your load requirements and check program logic for conditional locks on outputs.

Q: Communication disconnection with programming software?

A: Ensure correct port usage (RS232 for programming) and matching communication parameters. Use quality USB-to-serial adapters.

Q: PLC crashes or loses programs after days of operation?

A: Maintain operating temperature within -10°C to 60°C range and save programs to FLASH memory permanently after debugging.

Q: Can the PLC be used outdoors?

A: Use IP65-rated enclosure with dehumidifier for outdoor applications and protect from direct sunlight.

Q: High-speed counting function not working correctly?

A: Use dedicated high-speed input channels with shielded cables and proper grounding. Set frequency within rated 50kHz limit.

Q: Certifications required for European markets?

A: CE and RoHS certifications are included and sufficient for European market access.

Q: Expansion module not recognized by main module?

A: Check connector tightness, verify expansion module count (max 7), and update firmware if needed.

Certifications & Quality Assurance

Core Certifications

CE Certification: Complies with EU Low Voltage and EMC Directives for European market access
RoHS Certification: Meets EU environmental standards restricting hazardous substances
Regional Adaptations: Custom UL-certified versions available for North American markets

Quality Assurance Measures

Pre-Delivery Testing: High-low temperature cycles, EMI immunity, and full-load testing
Industrial-Grade Components: Top-brand chips with three-proof coating process
Standardized Production: ISO9001 quality management with traceable inspection records
After-Sales Support: 12-month warranty with localized technical support
