Product Details
Place of Origin: China
Certification: CE 、RoHS、FCC、IEC 61131-3

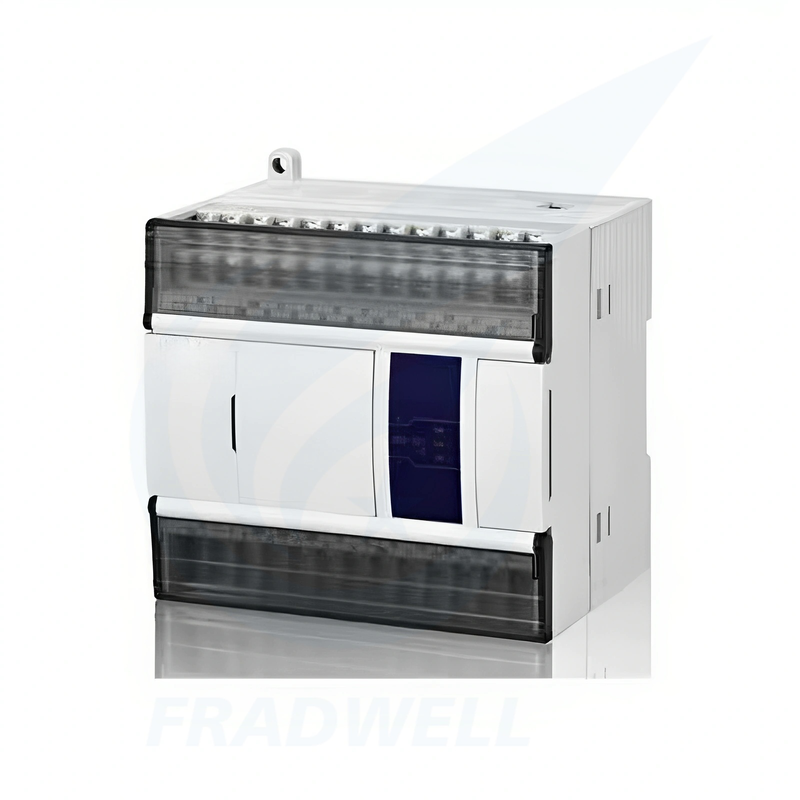

Model Number: XD3
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $48-$145
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Category | Specific Parameter | Specification Details |
|---|---|---|
| Power Supply Specifications | Input Voltage | 19VDC~30VDC (Nominal 24VDC) |
| Input Current | 0.85A (19VDC input, full-load output) | |
| Internal Output Power | 5V/GND: 900mA; 24V/GND: 300mA (expansion bus) | |
| Power Supply Protection | Reverse polarity protection supported; system isolated from field power supply | |
| I/O Configuration | Built-in Digital Inputs | 8~36 points (varies by model), 24VDC input, source/sink configurable |
| Built-in Digital Outputs | 6~24 points (varies by model), relay/transistor type optional | |
| Analog Inputs | 2 channels, 0~10V voltage / 0~20mA current input, 16-bit resolution | |
| Analog Outputs | 2 channels, 0~10V voltage / 0~20mA current output, 16-bit resolution | |
| Maximum Extended I/O Points | Supports 7 expansion modules, expandable up to 128 points total | |
| Communication Interfaces | Communication Ports | 1×Ethernet port, 2×RS485 ports |
| Supported Protocols | Modbus RTU, Modbus TCP | |
| Baud Rate Range | 1200bps~115200bps | |
| Programming Features | Programming Software | Compatible with mainstream PLC programming software |
| Programming Languages | IEC 61131-3 standard: Ladder Diagram, Function Block Diagram, Structured Text | |
| Program Memory | 1MBytes | |
| Data Memory | 1MBytes, 3KB power-fail retention area | |
| Physical & Environmental | Mounting Method | 35mm DIN rail mounting |
| Dimensions | Compact design, standard width ≤80mm | |
| Operating Temperature | -30℃~70℃ | |
| Operating Humidity | 5%~95%RH (non-condensing) | |
| Protection Class | IP20 | |
| Performance Parameters | Switching Response Time | Input: ≤10ms; Output: Relay ≤20ms, Transistor ≤0.5ms |
| High-speed Output Frequency | Transistor Y0~Y1: 100kHz; Y2~Y3: 10kHz | |
| Instruction Execution Speed | Basic logic instructions: 0.21μs/instruction |
| Model No. | Digital I/O | Analog I/O | Communication | Output Type | Key Features |
|---|---|---|---|---|---|
| XD3-14DI8DO-A | 14 in / 8 out | 2 in / 2 out | 1×RS485 | Relay | Cost-effective, basic control functions |
| XD3-24DI16DO-B | 24 in / 16 out | 2 in / 2 out | 1×Ethernet, 1×RS485 | Relay/Transistor | Expanded I/O capacity, dual communication |
| XD3-36DI24DO-C | 36 in / 24 out | 2 in / 2 out | 1×Ethernet, 2×RS485 | Relay/Transistor | Maximum built-in I/O points |
| XD3-16DI10DO-D | 16 in / 10 out | 2 in / 2 out | 1×Ethernet, 2×RS485 | Transistor | Compact size, rich communication |
| XD3-20DI14DO-E | 20 in / 14 out | 2 in / 2 out | 1×Ethernet, 1×RS485 | Relay/Transistor | Fault self-diagnosis, power-off retention |
