Product Details
Place of Origin: China
Certification: CE、UL、RoHS、CSA、KC、UKCA、LR
Model Number: XDH-104C、XDH-108A、XDH-116H、XDH-124X
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $380 - $ 980
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|

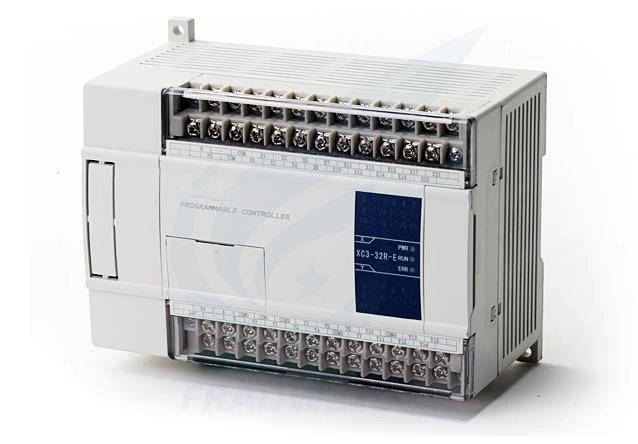

Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Details |
|---|---|
| Bus Protocol | Native EtherCAT, supports CoE (CANopen over EtherCAT), SoE (Servo over EtherCAT), AoE (ADS over EtherCAT) |
| Communication Performance | Data transmission latency: ≤ 100ns; Max network nodes: 64; Communication baud rate: 100 Mbps full-duplex |
| CPU Performance | 32-bit industrial-grade CPU, clock frequency ≥ 1.2 GHz; Supports multi-task parallel processing |
| I/O Interface | Digital input: 32 channels; Digital output: 32 channels; Analog input: 8 channels (12-bit resolution); Analog output: 4 channels (12-bit resolution); Expansion interface: 2* EtherCAT ports, 1* RS-485, 1* Ethernet port |
| Operating Environment | Working temperature: -20℃ ~ 60℃; Storage temperature: -40℃ ~ 85℃; Humidity: 5% ~ 95% (non-condensing); Anti-interference: Complies with IEC 61000-4 electromagnetic compatibility standards |
| Power Supply | Input voltage: 24 VDC (±10% tolerance); Power consumption: ≤ 15 W |
| Mechanical Specifications | Installation: DIN rail mounting (35mm); Dimensions: 120mm * 80mm * 60mm; Protection grade: IP20 |
| Programming Support | Compatible with IEC 61131-3 standard (LD, FBD, ST, SFC, IL); Supports online programming, debugging and monitoring |
| Model | Core Configuration | Application Scenarios | Overseas Certifications | Remarks |
|---|---|---|---|---|
| XDH-104C | 4-axis EtherCAT bus control, 32 DI/32 DO channels, 8 AI/4 AO channels (12-bit resolution), supports CoE/SoE protocols | Small-scale automation equipment, simple production line control | CE, UL, RoHS | Compact design, cost-effective entry-level model |
| XDH-108A | 8-axis real-time synchronous control, 64 DI/64 DO channels, 16 AI/8 AO channels (16-bit resolution), supports multi-task parallel processing | Mid-range precision manufacturing | CE, UL, CSA, KC | Enhanced performance, compatible with multi-brand servo drives |
| XDH-116H | 16-axis complex motion control, supports electronic cam/gearing functions, 2 extended EtherCAT ports, redundant protection design | High-end automated production lines | CE, UL, ATEX, IECEx | Industrial-grade high stability, suitable for hazardous location applications |
| XDH-124X | 24-axis full-function control, integrated IIoT data acquisition module, supports remote monitoring & diagnosis, wide temperature range (-40℃~70℃) operation | Large-scale smart manufacturing systems | CE, UL, UKCA, LR | Flagship configuration, meets Industry 4.0 upgrading needs |
