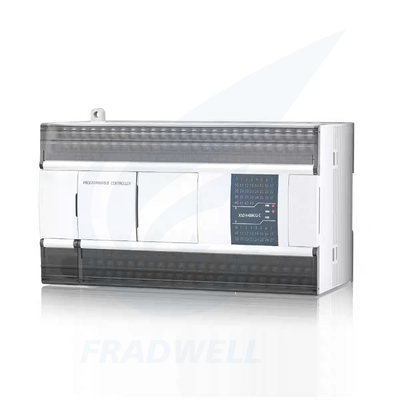

XSDH Series Compact Controller
The XSDH Series Compact Controller is a high-efficiency core component tailored for industrial automation scenarios, featuring a space-saving design that fits perfectly into limited installation spaces of small and medium-sized machinery and production lines. With optimized control logic and fast response performance, it effectively streamlines operational workflows, reduces latency in equipment action execution, and boosts overall production efficiency.
Product Features
- Compact and space-saving design, perfectly suited for limited installation space of small and medium-sized machinery
- High-speed I/O response modules supporting millisecond-level signal processing
- Compatible with mainstream industrial communication protocols including Modbus TCP/IP
- User-friendly graphical programming interface supporting offline debugging and online modification
- Wide operating temperature range (-20℃~60℃) for harsh industrial environments
Product Advantages
- Powerful performance in small footprint reduces equipment integration costs
- High-speed response minimizes equipment action latency and optimizes production efficiency
- Plug-and-play communication connectivity eliminates complex configuration procedures
- Low-threshold operation reduces training costs and supports quick troubleshooting
- Excellent environmental adaptability improves equipment operation stability
Core Technical Specifications
| Controller Type |
Compact Programmable Logic Controller (PLC) |
| Operating Voltage |
DC 24V ±10% |
| Power Consumption |
≤ 5W (typical load) |
| I/O Configuration |
Digital Input: 16 channels (NPN/PNP compatible)
Digital Output: 10 channels (relay/transistor optional)
Analog I/O: 2 in / 1 out (optional expansion) |
| Communication Protocols |
Modbus TCP/IP, Modbus RTU; supports Ethernet connection |
| Processing Speed |
0.2 μs per boolean instruction; 2 μs per 32-bit arithmetic instruction |
| Program Memory |
128 KB flash memory (expandable to 256 KB) |
| Operating Temperature |
-20°C ~ 60°C (no condensation) |
| Storage Temperature |
-40°C ~ 85°C |
| Protection Grade |
IP20 (front panel); IP54 (optional enclosure) |
| Programming Software |
Compatible with standard IEC 61131-3 programming languages (LD, FBD, ST, IL, SFC) |
| Dimensions (W×H×D) |
85mm × 120mm × 60mm |
| Mounting Method |
DIN rail mounting (35mm standard rail) / Wall mounting |
Compact Controller Complete Model List
| Model |
Core I/O Configuration |
Power Supply |
Communication & Motion Features |
Application Scenarios |
| XSDH-30A16L-C |
16DI/14DO (Transistor/Relay Optional) |
DC24V |
Basic version, no EtherCAT, RS232/RS485 |
Small standalone machines (packaging machines, dispensers) |
| XSDH-30A16L-E |
16DI/14DO (Transistor/Relay Optional) |
DC24V |
Built-in EtherCAT master, basic motion control |
Small labeling machines, standalone servo-linked equipment |
| XSDH-60A32-C |
32DI/28DO (Transistor Output) |
DC24V |
Basic version, RS232/RS485 + dual Ethernet ports |
Medium standalone machines (CNC drilling machines, tube benders) |
| XSDH-60A32-E |
32DI/28DO (Transistor Output) |
DC24V |
EtherCAT master + OPC UA, supports 32 axes |
Multi-axis precision equipment (laser cutters, sorting lines) |
| XSDH-60PA32-E |
32DI/28DO (Transistor Output) |
DC24V |
EtherCAT + extended BD board + advanced motion algorithms |
Complex motion control (multi-axis interpolation, cam synchronization) |
| XSDH-60A32-E-PRO |
32DI/28DO + Expansion Interfaces |
DC24V |
EtherCAT + EtherNet/IP + advanced motion control |
High-precision production lines (electronic assembly, PV string welders) |
Industry Applications
Packaging & Printing
Application Scenarios: European small-scale food pillow packaging lines, Southeast Asian beverage bottle blowing/capping machines, North American e-commerce carton forming/sealing lines
Core Values: Compact design fits narrow electrical cabinet spaces; EtherCAT synchronization controls film feeding, heat sealing and cutter actions; millisecond-level response ensures label positioning accuracy; wide-temperature design works stably in various environmental conditions.
Machine Tools & Metal Fabrication
Application Scenarios: German small CNC milling/bending machines, North American auto parts stamping lines, Indian small laser cutting machines
Core Values: Small footprint replaces traditional bulky PLCs; high-speed I/O with multi-axis motion control enables precision part processing; Modbus TCP connects to HMIs and MES systems; wide temperature tolerance adapts to non-constant temperature workshops.
Food & Beverage Processing
Application Scenarios: EU dairy product filling lines, Middle Eastern bottled water production lines, South American juice pasteurization equipment
Core Values: Wide-temperature and moisture-resistant performance; graphical programming allows quick adjustment of parameters; communication connectivity with sensors and scanners for production data recording; low power consumption suitable for remote areas.
Solar & Battery Manufacturing
Application Scenarios: European photovoltaic module string welding machines, American energy storage battery tab cutting machines, Australian small lithium battery Pack lines
Core Values: High-speed EtherCAT communication links with servo and vision systems; supports online program modification for quick changeovers; compact size saves clean workshop space; IP20 protection and wide-temperature resistance.
Logistics & Material Handling
Application Scenarios: North American e-commerce small sorting lines, European AGV charging stations, Southeast Asian port small container conveyors
Core Values: Compact design embeds into equipment electrical cabinets; high-speed I/O reads sensor signals for quick control; Modbus RTU connects barcode readers; quick troubleshooting reduces downtime.
Textile & Garment
Application Scenarios: Indian small spinning machines, Southeast Asian knitting machines, Turkish garment fabric setting machines
Core Values: Small size fits dense electrical cabinet layouts; wide-temperature and moisture-resistant performance; user-friendly programming interface; supports remote I/O expansion.
Water & Wastewater Treatment
Application Scenarios: Middle Eastern seawater desalination systems, African rural sewage treatment plants, South American mining wastewater filtration equipment
Core Values: Wide-temperature and anti-interference capabilities; low power consumption for remote stations; Modbus TCP connects sensors for automatic control; quick programming adapts to different water conditions.
Installation & Operation FAQs
Q: When connecting the XSDH to a PC via USB for program download, the software shows "device search timeout". How to fix?
A: This is usually caused by driver conflicts or antivirus software blocking. Uninstall existing USB drivers and download the official configuration tool from Xinje's website. Use original USB cables and try different USB ports. Power-cycle the XSDH and re-search the device.
Q: In high-temperature, high-humidity environments, the XSDH has random I/O signal jitters. How to solve?
A: Use shielded cables for I/O wiring with proper grounding. Separate signal cables from power cables by at least 20cm. Set digital filter parameters to 2-5ms. Ensure proper electrical cabinet ventilation to prevent overheating.
Q: When using EtherCAT with European-brand servos, the system reports "PDO mapping timeout". What to do?
A: Confirm PDO mapping table and object dictionary settings are consistent. Enable required PDO groups in Codesys software. Use Cat 5e or above shielded Ethernet cables. Power-cycle both XSDH and servos after configuration.
Q: Relay outputs get burned out when controlling multiple solenoid valves. Why and how to prevent?
A: For frequent switching (more than 10 times per second), use transistor outputs instead of relay outputs. Add surge suppressors in parallel with each solenoid valve. Avoid overloading relay channels beyond the 2A rated current per channel.
Q: In solar-powered outdoor stations, the XSDH shuts down randomly despite proper voltage. What's the cause?
A: Install a DC power filter and 1000-2200μF electrolytic capacitor at the power input terminal to stabilize voltage. Use thicker power cables to reduce voltage drop. Solar inverters often produce voltage ripples that affect stability.
Q: Modbus TCP data update is slow and sometimes freezes. How to optimize?
A: Ensure XSDH and HMI are on same IP subnet. Set Modbus TCP timeout to 500-1000ms. Reduce number of data registers read/written per cycle. Use a switch instead of hub for network connections. Prioritize Modbus TCP communication bandwidth.
Q: In multi-axis motion control, there's noticeable lag in circular interpolation. Solution?
A: Set EtherCAT cycle time to 1ms or lower. Adjust servo PID parameters appropriately. Use built-in oscilloscope function to monitor motion curves. Fine-tune acceleration/deceleration parameters. Eliminate redundant program logic.
Q: Controller fails to start in cold weather. Is it a hardware defect?
A: No, moisture condensation inside the controller during temperature drops can cause temporary malfunctions. Install a small heater in the electrical cabinet. Seal cabinet properly. Power on for 5 minutes without running program to evaporate internal moisture.
