Product Details
Place of Origin: China
Certification: CE, RoHS, UL, SIL 2
Model Number: XSLH‑24A8、XSLH‑24A16、XSLH‑24A16‑PN、XSLH‑24A16‑EC、XSLH‑30A32、
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $320- $550
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,T/T,D/P,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Item | Specification |
|---|---|
| Model | XSLH Series Thin Controller (PLC) |
| Form Factor | Ultra-slim; thickness ≤ 25 mm, width 90-120 mm, depth 80-100 mm |
| Mounting Type | Rail-mount (DIN 35), panel-mount optional |
| Protection Rating | Front panel IP65; body IP20 |
| Operating Temperature | -20°C to 60°C; storage temperature: -40°C to 85°C |
| Power Supply | 24V DC (18-30V DC); typical power consumption ≤ 10W |
| Item | Specification |
|---|---|
| Processor | 32-bit industrial-grade high-speed CPU; clock speed ≥ 800 MHz |
| Instruction Execution Speed | Basic logic instruction: ≤ 0.05 μs/step; floating-point instruction: ≤ 0.3 μs/step |
| Program Memory | 8 MB Flash (expandable up to 32 MB via SD card) |
| Data Memory | 4 MB RAM; 1 MB retentive memory (battery-backed optional) |
| Programming Languages | LD, FBD, ST, SFC (IEC 61131-3 compliant) |
| Item | Specification |
|---|---|
| Integrated Digital I/O | 8 DI (24V DC, sinking/sourcing), 6 DO (relay/transistor, 2A per channel) |
| High-Speed I/O | 2 channels of 200 kHz high-speed counting; 4 channels of 200 kHz pulse output |
| Expansion Capability | Up to 16 modular I/O modules (digital, analog, temperature, motion) |
| Max I/O Points | Digital: 1024 points; analog: 64 channels (expandable) |
| Item | Specification |
|---|---|
| Axis Control | Up to 8 axes (EtherCAT); 0.5 ms cycle for 4-axis synchronization |
| Motion Functions | Multi-axis sync, electronic cam, linear/circular interpolation, pulse train control |
| Positioning Accuracy | ≤ ±0.01 mm (with high-precision encoder feedback) |
| Item | Specification |
|---|---|
| Ethernet | 2* 10/100/1000 Mbps ports (Modbus TCP, Ethernet/IP, OPC UA) |
| Serial | 1* RS232, 1* RS485 (Modbus RTU/ASCII) |
| Fieldbus | Optional Profinet, CANopen, DeviceNet via expansion modules |
| Item | Specification |
|---|---|
| MTBF | ≥ 100,000 hours |
| Certifications | CE, UL, RoHS compliant |
| Anti-interference | Surge immunity: ±2 kV (power line); ESD immunity: ±8 kV (contact) |
| Model | I/O Configuration | Motion & Communication | Key Features | Applications | Certifications |
|---|---|---|---|---|---|

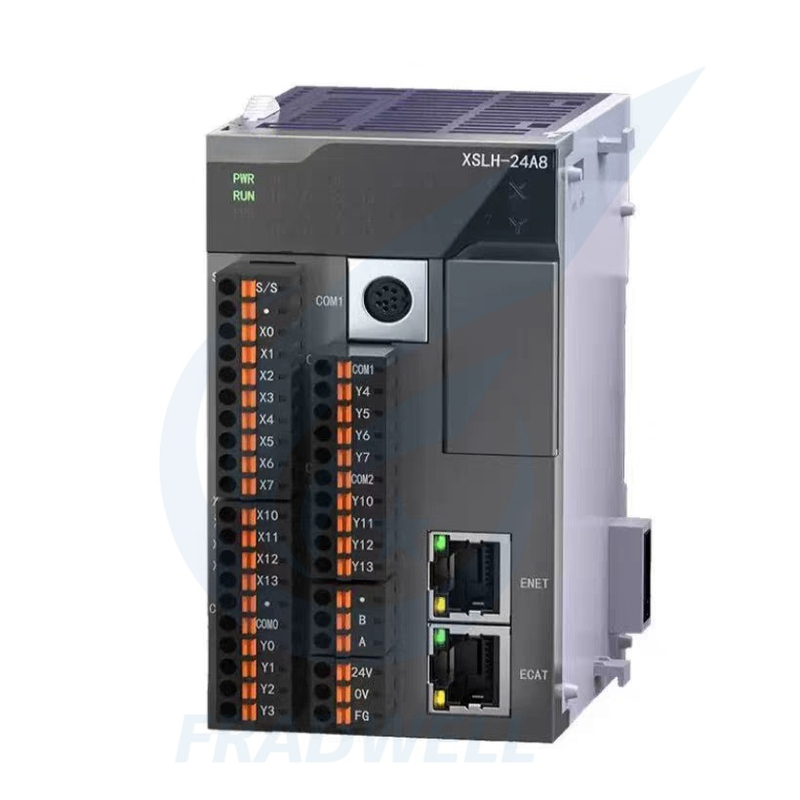

| XSLH-24A8 | 12 DI (NPN)+12 DO (transistor) | 8-axis EtherCAT, 2* high-speed I/O (200 kHz), 1* RS485, 1* Ethernet | Ultra-slim (25 mm), basic motion, Modbus RTU/TCP | Small packaging machines, simple conveyors | CE, RoHS |
| XSLH-24A16 | 12 DI (NPN)+12 DO (transistor) | 16-axis EtherCAT, 2* high-speed I/O, 2* Gigabit Ethernet | Enhanced motion sync, XS Studio programming, OPC UA | Small assembly lines, material handling | CE, RoHS |
| XSLH-24A16-PN | 12 DI (NPN)+12 DO (transistor) | 16-axis EtherCAT, PROFINET RT, Modbus TCP | PROFINET interface, seamless HMI/PLC integration | Smart factory sensor networks | CE, RoHS, UL |
| XSLH-24A16-EC | 12 DI (NPN)+12 DO (transistor) | 16-axis EtherCAT master, 2* high-speed pulse output | Fast fieldbus, electronic cam, 1 ms/4-axis sync | Small robotics, precision positioning | CE, RoHS, UL |
| XSLH-30A32 | 16 DI (NPN)+14 DO (transistor) | 32-axis EtherCAT, 4* high-speed I/O, dual Ethernet | Max 32-axis control, modular expansion (up to 8 modules) | Automotive sub-lines, 3C assembly | CE, RoHS |
| XSLH-30A32-EC-PN | 16 DI (NPN)+14 DO (transistor) | 32-axis EtherCAT master, PROFINET, OPC UA | Dual fieldbus, 32-axis synchronization, SIL 2 safety | Complex automation, high-speed production | CE, RoHS, UL, SIL 2 |
| XSLH-30A32-F | 16 DI (NPN)+14 DO (transistor) | 32-axis EtherCAT, safety function (SIL 2) | Safety-integrated motion, harsh-environment tolerance | Automotive assembly, precision machining | CE, RoHS, UL, SIL 2 |
| Target Industry | Recommended Models | Core Selection Basis |
|---|---|---|
| Food & Beverage Packaging | XSLH-24A8/24A16-PN/EC | Ultra-slim body, multi-protocol compatibility, high-speed I/O |
| Automotive Components Manufacturing | XSLH-30A32-EC-PN/F | Dual bus, SIL 2 safety, multi-axis synchronization |
| New Energy Equipment | XSLH-30A32-EC/24A16-PN | 32-axis linkage, OPC UA, wide temperature tolerance |
| 3C Consumer Electronics Assembly | XSLH-24A16-EC/1000-PN | Precision motion, traceability function, miniaturization |
| Woodworking & Material Processing | XSLH-30A32-F/24A8 | Wide temperature adaptation, high-speed counting, low cost |
| Pharmaceutical & Medical Device | XSLH-30A32-F/24A16-PN | SIL 2 safety, FDA compliance, sterile operation |
| Logistics & Material Handling | XSLH-24A16-EC/24A8 | Shuttle control, AGV adaptation, industrial protection |
