Product Details
Place of Origin: China
Certification: CE、RoHS、UL/cUL、KCC、EAC

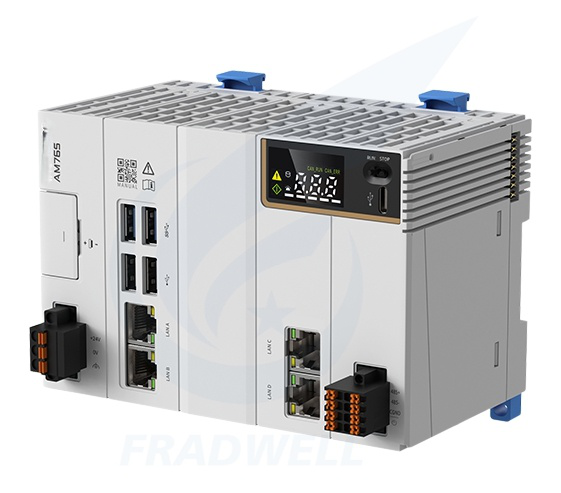

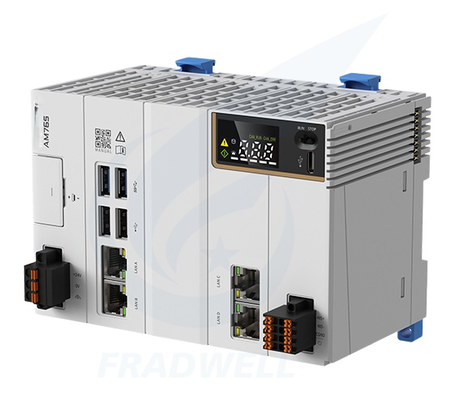

Model Number: AM760
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $ 850 - $ 2800
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Parameter Item | Parameter Value |
|---|---|---|
| Basic Core | Processor | Quad-core 1.8GHz (Intel High-performance Processor) |
| Program/Data Capacity | 128MB program memory, 128MB data memory (5MB power-failure retention space) | |
| Instruction Processing Speed | NOT instruction: 3ns; Integer instruction: 3.5ns; Floating-point instruction: 4ns | |
| Power Supply | DC24V±10%, Max 4A, Typical 2.4A (Short-circuit/reverse connection protection supported, built-in UPS) | |
| Physical Form | Horizontal | |
| Motion Control | Synchronous Control Capability | 32-axis synchronization at 500μs cycle; 64-axis synchronization at 1ms cycle; Max 96-axis control supported |
| Maximum EtherCAT Slave Nodes | 256 | |
| Synchronization Cycle/Precision | Minimum 1ms synchronization cycle, 1μs synchronization precision | |
| Expansion Capability | Local Expansion Modules | Up to 32 GL20 series blade I/O modules (DI/DO/AD/DA, etc.) |
| I/O Refresh Cycle | 500μs | |
| Communication Capability | Built-in Ethernet Ports | 2 independent IP Ethernet ports (1000M) |
| EtherCAT Ports | 2 ports (100M, linear/star/ring topology supported, instant disconnection detection) | |
| Maximum Expanded Communication | 9 serial ports, 9 CAN communication channels | |
| Supported Protocols | EtherCAT, EtherNet/IP, OPC UA, Modbus TCP, TCP/IP, RS485, CAN | |
| Programming & Development | Programming Standard | Compliant with PLCopen specification & IEC 61131-3 (supports ST/LD/SFC/CFC, etc.) |
| Development Platform | InoProShop (adapts to multi-scenario applications) | |
| Programming Template | Supports InoQuickPro template framework based on ISA88 standard |
