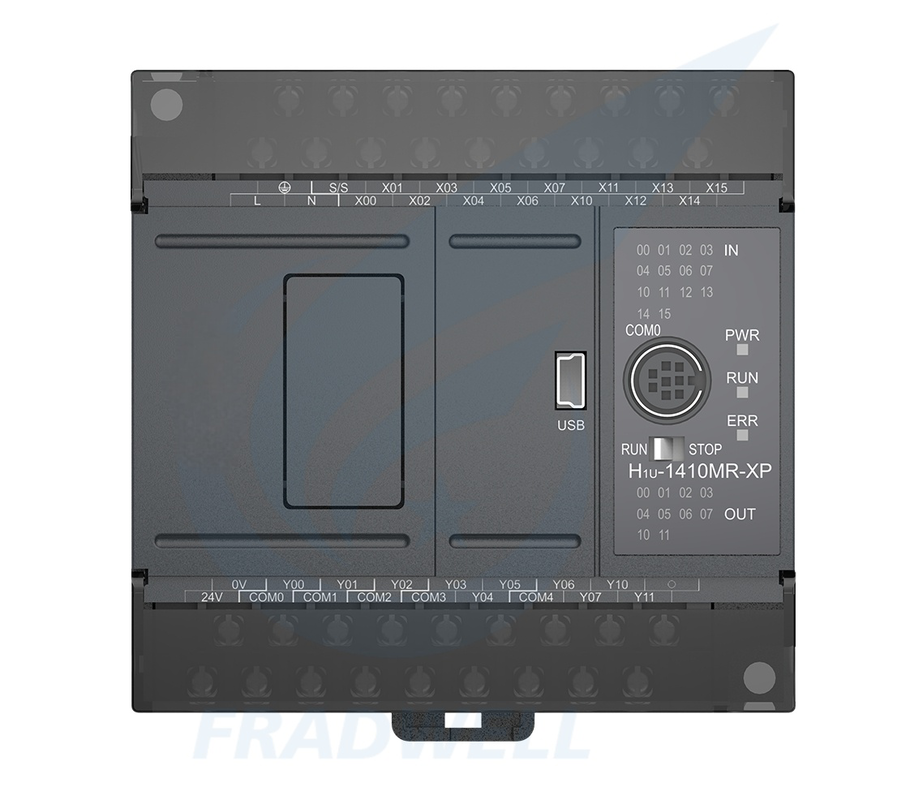

H1U/S Series Simple type small PLC

Name: H1U/S Series Simple type small PLC
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: H1U/S
Price: 115.00 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: CE、UL、UKCA、RCM、EAC

Model Number: H1U/S

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $80- $150

Delivery Time: 3-5workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            Inovance H1U small PLC, simple type industrial PLC, H1U series PLC with warranty


Type:	Programmable Logic Controller	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Programmable Logic Controller
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

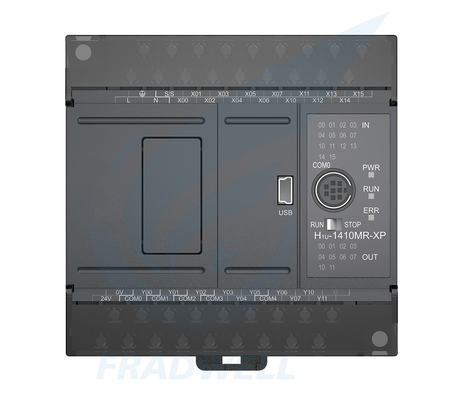

H1U/S Series Simple type small PLC

H1U/S Series Simple Type Small PLC

The H1U/S Series is an economical PLC specially designed for small-scale automation equipment. Boasting core advantages of compact size, high cost-effectiveness, and precise positioning, it caters to the cost control needs and compact installation scenarios of small and medium-sized manufacturing enterprises overseas.

Core Advantages

Ultimate Cost-Effectiveness: Priced at only 50%-60% of imported brands with the same performance, perfect for price-sensitive markets
Compact Size: Smallest model measures just 80×90×75mm for flexible installation in space-constrained scenarios
Maintenance-Free Design: Data persistence technology eliminates backup batteries, IP20 protection rating for dust and moisture resistance
Global Compatibility: -INT models passed CE, UL, UKCA, RCM and EAC certifications, wide voltage design (AC 100-240V)

Technical Highlights

High-Speed Motion Control: Standard 3-axis 100kHz high-speed pulse output, basic instruction execution speed of 0.26μs/step
Compatible Ecosystem: AutoShop programming software compatible with Mitsubishi syntax, USB offline download support
Multi-Protocol Networking: 2 independent serial ports (485/422) + USB interface, compatible with Modbus and CANlink 3.0
Flexible Expansion: Seamless connection with H2U series remote modules, expanding I/O points from 14 to 60
Strong Anti-Interference: Passed 4kV electrostatic discharge and 10kV surge impact tests, wide operating temperature range (-10℃~60℃)

Complete Product Model List

Model	I/O Points	Output Type	Supply Voltage	High-Speed Pulse	Dimensions (mm)	Application Scenarios
H1U-0806MR-INT	8DI/6DO	Relay	AC 100-240V	3-axis 100kHz	80×90×75	Standalone logic control for small equipment
H1U-0806MT-INT	8DI/6DO	Transistor (NPN)	AC 100-240V	3-axis 100kHz	80×90×75	Small stepper/servo drive
H1U-1410MR-INT	14DI/10DO	Relay	AC 100-240V	3-axis 100kHz	90×100×75	Small production line linkage
H1U-1410MT-INT	14DI/10DO	Transistor (NPN)	AC 100-240V	3-axis 100kHz	90×100×75	Small handling manipulators
H1U-1614MR-INT	16DI/14DO	Relay	AC 100-240V	3-axis 100kHz	100×110×75	Logic control for medium-sized equipment
H1U-1614MT-INT	16DI/14DO	Transistor (NPN)	AC 100-240V	3-axis 100kHz	100×110×75	Multi-axis precise positioning
H1U-2416MR-INT	24DI/16DO	Relay	AC 100-240V	3-axis 100kHz	110×120×75	Centralized control for small production lines
H1U-2416MT-INT	24DI/16DO	Transistor (NPN)	AC 100-240V	3-axis 100kHz	110×120×75	Multi-axis linkage control
H1U-3624MR-INT	36DI/24DO	Relay	AC 100-240V	3-axis 100kHz	120×130×75	Complex small production lines
H1U-3624MT-INT	36DI/24DO	Transistor (NPN)	AC 100-240V	3-axis 100kHz	120×130×75	High-precision multi-axis positioning
H1US-1410MR-INT	14DI/10DO	Relay	AC 100-240V	3-axis 100kHz	80×90×75	Space-constrained, simple logic scenarios
H1US-1410MT-INT	14DI/10DO	Transistor (NPN)	AC 100-240V	3-axis 100kHz	80×90×75	Small stepper drive

Supplementary Notes:
• All models include 2 independent serial ports (485/422) + USB, compatible with Modbus and CANlink 3.0 protocols
• IP20 protection rating, battery-free design, wide operating temperature range (-10℃~60℃)
• MR denotes relay output (suitable for contactors/solenoid valves); MT denotes transistor output (suitable for servo/stepper motors)
• -INT suffix indicates overseas-dedicated certified versions

Overseas Application Industries

Small-Scale Textile Industry: Garment factories in Bangladesh and Vietnam for embroidery machines and fabric slitting machines
Small Packaging Machinery: Southeast Asian daily chemical factories for filling machines and labeling machines
Electronic Component Assembly: Mexican and Malaysian electronics plants for PCB soldering and component insertion
Small-Scale Logistics & Warehousing: Middle Eastern e-commerce warehouses for sorting slides and conveyor belts

Common Installation & Operation Issues

Q1: PLC frequently reports errors and trips in Southeast Asian workshop

Likely due to unstable power grid voltage. Measure voltage with multimeter, add voltage stabilizer if fluctuation exceeds ±15%. Check for terminal oxidation in humid environments.

Q2: Program lost after power outage in African factory

Equip with small-capacity UPS backup power supply. Ensure "Permanent Program Storage" is checked during initial program download.

Q3: Communication fails with local HMI in Europe

Change PLC serial port mode to slave in programming software. Use shielded twisted-pair cables with proper grounding.

Q4: Positioning inaccurate when driving stepper motor in Mexican factory

Check pulse wire length (max 20m), verify motor subdivision parameters match PLC pulse counts. Use shielded cables away from power cables.

Product Certification & Quality Assurance

Global Compliance Certifications: CE, UL, UKCA, RCM, EAC, KC certifications covering European, American, and emerging markets

Rigorous Testing: Wide-temperature stability (-10℃~60℃), strong anti-interference (4kV electrostatic, 10kV surge), environmental reliability (IP20 protection)

Quality Assurance: 12-month global warranty, ISO 9001 quality management, 0.02% defect rate, full-life-cycle quality traceability

Technical Support: 7×24-hour multilingual remote debugging, online technical document library, localized engineer teams in key markets
