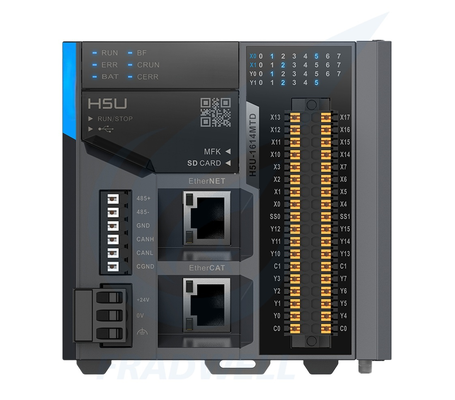

H5U Series EtherCAT bus high-performance small PLC
-
Highlight
Inovance H5U EtherCAT PLC
,high-performance small PLC
,EtherCAT bus industrial PLC
-
TypeProgrammable Logic Controller
-
WarrantyOriginal Manufacturer's Warranty
-
PakageOriginal Pakage
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginChina
-
CertificationCE、UKCA 、UL（cUL）、ETL、PLCopen 、IEC 61131-3
-
Model NumberH5U‑1614MTD、H5U‑1614MTD‑A16/A8/A8S/INT
-
Minimum Order Quantity1
-
Price$100-$180
-
Delivery Time3-5workdays
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,
H5U Series EtherCAT bus high-performance small PLC
H5U Series EtherCAT Bus High-Performance Compact PLC
Technology introduces its first compact PLC with integrated EtherCAT bus—the H5U series, designed to enable high-speed operation for production line equipment. Addressing increasing consumer demands and manufacturing pressures, the H5U delivers four core advantages: significant reduction in wiring complexity, substantial decrease in programming and commissioning time, support for multi-axis control requirements, and alignment with strict cost-control objectives. As an innovative product integrating EtherCAT bus into compact PLCs, the H5U provides a high-performance, cost-effective solution for small to medium-sized automated production lines.
Core Advantages & Technical Highlights
Multi-axis Motion Control: Performance Comparable to Medium-sized PLCs
- Superior Axis & Slave Station Capacity: Supports up to 32-axis EtherCAT bus motion control with multiple modes including absolute/relative positioning and speed control. Can connect with up to 72 EtherCAT slave stations, meeting multi-axis coordination needs in electronics manufacturing and packaging industries.
- Rich Trajectory Control Functions: Based on PLCopen motion control instructions, enables linear and circular interpolation, electronic cam, and electronic gear functions. Supports combination of pulse axes and EtherCAT axes for complex trajectory control applications.
- Integrated High-speed I/O: Standard 4-axis 200kHz pulse output and 4-channel 200kHz high-speed input for direct servo or stepper drive control.
Multi-protocol Communication & Expansion
- Comprehensive Interface Coverage: Equipped with RS485, CAN, Ethernet, and EtherCAT interfaces. Ethernet supports ModbusTCP and socket communication; CAN port configurable with CANopen.
- Flexible Expansion Capability: 16 built-in inputs and 14 built-in outputs with expansion for up to 16 local modules including GL20 series blade-type I/O and GR10 series EtherCAT slave modules.
Efficient Programming & Maintenance
- Multi-language Programming Support: Supports ladder diagram, ST language, and SFC programming. Process instructions can be encapsulated into custom process libraries via FB/FC function blocks.
- Advanced Maintenance Features: Supports USB program backup/restoration, built-in event logging, and direct communication with Inovance IT7000 HMI. Operating temperature range of -20℃ to 60℃ for harsh industrial environments.
Technical Specifications
| Parameter Category | Specific Parameter | Details |
|---|---|---|
| Model Classification & Axis Capacity | H5U-1614MTD | Up to 32 axes (max 32 EtherCAT axes + max 4 local pulse axes) |
| H5U-1614MTD-A16 | Up to 16 axes (max 16 EtherCAT axes + max 4 local pulse axes) | |
| H5U-1614MTD-A8 | Up to 8 axes (max 8 EtherCAT axes + max 4 local pulse axes) | |
| H5U-1614MTD-A8S | Up to 8 axes; no CANopen/CANlink, electronic cam, or electronic gear functions | |
| Motion Control | EtherCAT Slave Connectivity | Max 72 slave stations accessible (including I/O, synchronous axes, and asynchronous axes) |
| Motion Control | Motion Control Functions | Supports PLCopen motion control instructions for linear/circular interpolation; electronic cam and gear functions |
| Program & Data Capacity | User Program Capacity | 200K steps |
| Communication Interfaces | Ethernet Port | Supports ModbusTCP, TCP/IP, UDP, Socket protocols; RJ45 interface |
| I/O Interfaces | Built-in I/O Configuration | 16 inputs, 14 outputs (including high-speed I/O) |
| Basic Specifications | Power Input | DC24V |
| Basic Specifications | Dimensions | 83mm × 95mm × 90mm |
Product Models
| Model | Axis Capacity | Key Features | Remarks |
|---|---|---|---|
| H5U‑1614MTD | 32 axes (EtherCAT + local pulse) | 16DI/14DO, EtherCAT bus, max 72 slaves, 4‑axis 200K pulse output | Overseas standard 32‑axis flagship model |
| H5U‑1614MTD‑A16 | 16 axes (EtherCAT + local pulse) | Same I/O as above, max 16 EtherCAT axes, 4‑axis local pulse | 16‑axis cost‑effective model |
| H5U‑1614MTD‑A8 | 8 axes (EtherCAT + local pulse) | Same I/O as above, max 8 EtherCAT axes, 4‑axis local pulse | 8‑axis entry‑level model |
| H5U‑1614MTD‑A8S | 8 axes (EtherCAT + local pulse) | 8‑axis control, supports CANlink/CANopen, electronic cam/gear | Special‑function 8‑axis model |
| H5U‑1614MTD‑INT | 32 axes (EtherCAT + local pulse) | Same as H5U‑1614MTD, optimized for international compliance | Overseas‑oriented certification‑optimized version |
Target Industries & Applications
| Industry | Typical Application Scenarios | Recommended Models |
|---|---|---|
| Packaging & Printing | Bag-making machines, flexographic printing machines with multi-axis synchronization | H5U-1614MTD (32-axis) / -A16 (16-axis) |
| Electronics Manufacturing | SMT pick-and-place machines, mobile phone assembly lines with vision system integration | H5U-1614MTD-A8S / -INT |
| Plastics & Rubber | Injection molding machines, blow molding machines with motion and temperature control | H5U-1614MTD-A8 / -A16 |
| Woodworking/Glass Machinery | Furniture cutting machines, glass edge grinding machines with multi-axis interpolation | H5U-1614MTD / -A8 |
| Logistics & Warehousing | E-commerce sorting lines, automated warehouses with real-time data interaction | H5U-1614MTD-A16 / -INT |
Installation & Operation Guidance
Q: Why does the H5U overheat in electrical cabinets?
A: Ensure vertical mounting with at least 50mm clearance above/below. Avoid horizontal installation that blocks airflow and consider cabinet fans for environments exceeding 40°C.
Q: How to resolve random I/O signal glitches?
A: Proper grounding is essential. Connect shield cables to the H5U's PE terminal and maintain 200mm separation between power and signal cables. Use 360° shield clamps for optimal performance.
Q: What causes EtherCAT communication errors?
A: Ensure EtherCAT cables don't exceed 100m per segment. Install certified terminators at the last servo and check for loose connectors, especially in vibrating environments.
Selection Tips: Choose models based on actual axis requirements. For EU/NA exports, select -INT version for certification compliance. Match expansion modules to application needs—GL10-1616ETN for digital I/O, GL10-4AD/4DA for analog signals.
