Model Number: Easy 300/500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $70 - $ 350
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|

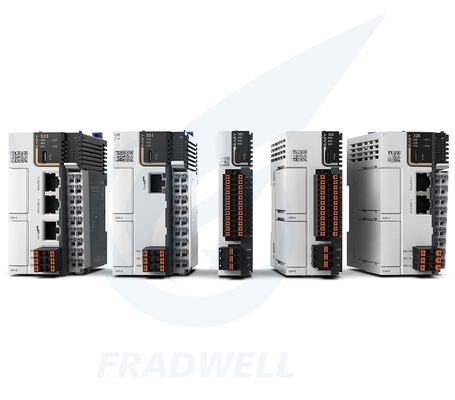

The Easy Series PLC is a high-performance compact controller engineered for compact automation applications, featuring 32-axis high-speed bus control as its core capability. Powered by a quad-core processor delivering nanosecond-level instruction processing, it supports 200kHz pulse output and 1μs synchronization accuracy. Built-in functions including electronic cam and interpolation enable seamless handling of complex multi-axis synchronization processes such as flying shear and chasing shear. The system accommodates 12 encoder axes and synchronizes up to 72 EtherCAT slaves.
Featuring a modular compact design, it is compatible with GL20 series blade-type I/O expansion modules. Tool-free Push-in terminals and vertical plug-and-play design reduce cabinet space requirements by two-thirds and cut assembly time by 80%. Dual Ethernet ports support dual-segment IP isolation and various international industrial protocols including EtherNet/IP and Modbus-TCP. Compliant with IEC-61131-3 programming standards and offering offline debugging functions, the PLC's core components are locally manufactured to ensure stable supply. It is ideally suited for small and medium-sized automation equipment in electronics manufacturing, packaging, textiles, and related industries.
Core Advantage: Downsizes multi-axis motion control capability to a compact form factor, handling complex synchronization processes and meeting precision equipment requirements.
Technical Highlights:
Core Advantage: Maximizes cabinet space savings, significantly reduces assembly costs, ideal for space-constrained automation equipment.
Technical Highlights:
Core Advantage: Enables hassle-free networking, adapts to diverse industrial systems, ensures secure data transmission, lowers integration costs.
Technical Highlights:
Core Advantage: Caters to both professional programming and ease of use, shortens development cycles, adapts to various skill levels.
Technical Highlights:
Core Advantage: Ensures supply security, offers high cost-effectiveness, covers control needs across wide range of automation equipment.
Technical Highlights:
| Parameter Category | Specific Parameters | Description |
|---|---|---|
| Power-Related | Rated current of terminal input power: 1A (max at 24V); Typical current of bus output power: 2A (at 5V) | 24V input power supports short-circuit and reverse polarity protection. The total rated current of bus input power for expansion modules shall not exceed the bus output current. |
| Voltage | Rated voltage of terminal input power: 24VDC±10% (range: 21.6VDC - 26.4VDC); Rated voltage of bus output power: 5VDC (range: 4.75VDC - 5.25VDC) | Compatible with common DC power supply in industrial scenarios, with strong adaptability to voltage fluctuations. |
| Dimensions | Mainstream models (e.g., Easy501, Easy320): 53mm×100mm×80mm (W×H×D); Easy301-0808TN: 24mm×100mm×83mm (W×H×D) | Horizontal compact design, saving approximately 66% of cabinet installation space compared to traditional PLCs. |
| Supplementary Core Performance Parameters | Motion Control Capability | Mainstream models support 8-axis pulse control; some models (e.g., Easy511) support 12 axes in contour mode and up to 72 EtherCAT slaves in bus mode. High-speed output up to 200kHz, supporting PWM (Pulse Width Modulation). |
| Program & Storage | Maximum user program capacity: 200K steps; Maximum custom variable storage: 1MByte (for some models), of which 128kByte supports power-off retention. | |
| Expansion Capability | Supports up to 16 local expansion modules; with GL20-PS2 power supply, it can support 15 expansion modules. The main unit is equipped with 2 expansion slots. | |
| Protection Level | IP20 | |
| Operating Environment | Operating temperature: -20℃ - 55℃; Operating humidity: ＜95% (non-condensing) |
| Series | Model | Key Specifications | Typical Application |
|---|---|---|---|
| Easy 300 Series | Easy301-0808TN | 8 digital input channels, 8 digital output channels (sink transistor); 4-axis pulse control; 1×RS485, 1×RS232; no Ethernet/EtherCAT; dimensions 24mm×100mm×83mm | Small-scale equipment like small packaging machines, textile auxiliary equipment, and simple material conveying lines |
| Easy302-0808TN | 8 digital input channels, 8 digital output channels (sink transistor); pulse control + CANopen communication control; supports basic multi-device networking | Equipment requiring CANopen connection such as small-sized servo-controlled cutting machines and plastic extruders | |
| Easy320-0808TN | 8 digital input channels, 8 digital output channels (sink transistor); dual Ethernet ports; supports Modbus TCP, Ethernet/IP; controls servo via CANopen or pulse | Medium-sized packaging equipment, electronic component assembly machines, and automated production lines matching HMI and inverter | |
| Easy321-2416ER | 24 digital input channels, 16 digital output channels (relay); 1 Ethernet port; supports Modbus TCP, Ethernet/IP; up to 15 expansion modules with GL20-PS2 power supply | General-purpose automation scenarios such as food processing conveyor lines and small-batch assembly stations | |
| Easy321-2416TP | 24 digital input channels, 16 digital output channels (source transistor); same communication and expansion capabilities as Easy321-2416ER | Equipment requiring source-type output like sensor-linked sorting machines | |
| Easy321-2416TN | 24 digital input channels, 16 digital output channels (sink transistor); supports quick adaptation to intelligent IO via GE21-RTU card | Electronic manufacturing equipment and precision detection devices | |
| Easy321-3624ER | 36 digital input channels, 24 digital output channels (relay); dual-core processor; 1MByte custom variables | Large-scale material sorting lines and multi-station integrated processing equipment | |
| Easy321-3624TP | 36 digital input channels, 24 digital output channels (source transistor); same processing performance as Easy321-3624ER | Automated labeling machines and high-frequency action stamping equipment | |
| Easy321-3624TN | 36 digital input channels, 24 digital output channels (sink transistor); supports OPC UA server and multiple slave station protocols | Intelligent workshop small-sized production lines and data-linked detection equipment | |
| Easy 500 Series | Easy511-2416TN | 24 digital input channels, 16 digital output channels (sink transistor); dual-core processor; 1 EtherCAT port; supports 12 axes in contour mode, up to 72 EtherCAT slaves | Precision electronic assembly equipment and multi-axis linkage small-sized machining tools |
| Easy511-3624TN | 36 digital input channels, 24 digital output channels (sink transistor); EtherCAT bus communication; supports Modbus TCP, Socket protocols | Complex motion scenarios such as small-sized printing and die-cutting machines, and chasing shear equipment | |
| Easy521-0808TN | 8 digital input channels, 8 digital output channels (sink transistor); dual Ethernet ports; 8-axis motion control; supports EtherCAT | Medium-precision servo control equipment like electronic component insertion machines | |
| Easy522-0808TN | 8 digital input channels, 8 digital output channels (sink transistor); 16-axis motion control; dual Ethernet ports; compatible with Ethernet/IP | Multi-axis synchronous equipment such as small-sized packaging line multi-station joint control systems | |
| Easy523-0808TN | 8 digital input channels, 8 digital output channels (sink transistor); 32-axis motion control; supports EtherCAT and high-speed pulse control | High-end precision equipment like precision laser cutting machines and multi-axis coordinate measuring instruments | |
| Expansion Modules | GL20-0800END | 8 digital input channels; tool-free push-in terminals; plug-and-play design | Expand input points for all Easy series hosts except Easy301 |
| GL20-0008ETN | 8 digital output channels; compatible with mainstream host models; supports fast wiring | Extend output points for packaging and assembly equipment | |
| GL20-0808ETN | 8 digital input + 8 digital output channels; compact design; saves cabinet space | Integrated input/output expansion for small-space control cabinets | |
| GL20-1600END | 16 digital input channels; stable signal transmission; industrial-grade anti-interference | Large-scale input expansion for material conveying and sorting lines | |
| GE20-2AD1DA-I | 2 analog input channels, 1 analog input channel (current type); supports RS485 connection | Precision control of temperature and pressure in chemical and food processing equipment | |
| GE20-2AD1DA-V | 2 analog input channels, 1 analog output channel (voltage type); compatible with most Easy series hosts | Voltage-based parameter regulation for textile and plastic extruder equipment | |
| GE21-CAN-485 | Supports CANopen, RS485 communication; up to 62 CANopen slaves | Communication expansion for equipment requiring multi-device networking | |
| GE21-EN | Ethernet expansion card; supports Modbus TCP, Socket; factory-fitted on Easy511 | Upgrade communication capabilities for hosts needing Ethernet protocol expansion |
Extensive applications in electronics OEM hubs including Southeast Asia (Vietnam, Malaysia) and Europe (Hungary). The Easy523-0808TN controls 32-axis small pick-and-place machines for high-speed, precise component placement. The Easy321-2416TN with analog expansion modules controls ultrasonic welding equipment for headphone shells. European sensor factories utilize built-in protocols for real-time component testing and data collection.
Prevalent in European food packaging and Southeast Asian daily goods packaging. The Easy320-0808TN controls pillow packaging machines with dual Ethernet connectivity. The Easy511-2416TN manages bottle labeling and capping equipment with millimeter-level alignment accuracy. Italian chocolate factories utilize the series for four-side sealing machines supporting small-batch production.
Serves small and medium-sized extrusion and injection molding enterprises in Europe and Southeast Asia. The Easy302-0808TN with GE20 analog modules controls plastic extruders for uniform pipe thickness. The Easy321-3624ER manages rubber glove demolding mechanisms with tool-free wiring reducing maintenance downtime.
Well-suited for textile centers in Bangladesh, Cambodia, and European fabric factories. The Easy320-0808TN controls stenter machines with precise temperature control and network isolation. The Easy511-3624TN manages silk printing machines with multi-axis synchronization for pattern alignment. Turkish sock factories utilize the series for tension control and knitting flatness.
Adopted in European distributed PV module factories and Southeast Asian lithium battery plants. The Easy522-0808TN controls PV cell string welders with 16-axis synchronization. The Easy321-2416TP manages lithium battery coating machines for uniform electrode sheet coating.
Caters to standardized production in small and medium-sized food processing plants. The Easy321-2416ER controls sausage enema and slicing equipment with temperature monitoring. Southeast Asian durian freeze-dried factories utilize Easy511 series for precise vacuum and cooling control. French cheese factories employ the series for fermentation temperature and stirring frequency management.
Used by overseas small and medium-sized elevator accessory factories for auxiliary control. The Easy301-0808TN controls elevator door opening and closing speed with 4-axis pulse control. European villa elevator manufacturers utilize the series with RS485 communication for floor display, call response, and speed regulation.
Suitable for European automated warehouses and Southeast Asian logistics centers. The Easy320-0808TN controls belt conveyors and sorting robotic arms with warehouse system integration. Thai fruit and vegetable markets utilize the series for cold chain conveyor temperature control and accumulation prevention.
First, check the wiring: EtherCAT uses two-core shielded cable, and the "IN" port of the first servo must connect to the "OUT" port of the PLC (don't reverse IN/OUT). Then confirm the termination resistor--add a 120Ω resistor at both ends of the bus (the PLC's EtherCAT port has a built-in resistor, but some servos need manual activation via DIP switch). Also, check the servo's station address: the address set on the servo must match the configuration in InoProShop software. Many European users forget to set the servo address, leading to bus conflicts.
Most likely due to wiring or power issues. For wiring: use 24VDC shielded cable (not unshielded wire, common in low-budget projects in Southeast Asia) and ground the shield layer at one end (two-end grounding causes ground loops). For power: if the input signal comes from a sensor, check if the sensor's power supply is stable--voltage drops below 21.6VDC will cause signal loss. Also, avoid installing the PLC near welding machines or large motors (common in Turkish textile factories); electromagnetic interference (EMI) will disrupt signals--add a power filter or move the PLC cabinet 1m away.
First, check the IP settings: the Easy series defaults to 192.168.0.1. If your computer's IP is in a different subnet (e.g., 192.168.1.x), manually set your PC's IP to 192.168.0.x. Then test the cable: use CAT5e or higher Ethernet cable (crossover cables don't work). If using a network switch, make sure the switch is powered on and the port is active. Also, disable your computer's firewall--industrial laptops often block InoProShop's port (TCP 502). Some users in Germany encounter this issue due to strict enterprise firewall settings.
The Easy series relay output's maximum current is 2A per channel. If you control a motor or heater drawing over 2A directly, the relay will burn. Add an intermediate relay or contactor (common in European packaging factories)--use the PLC's relay to trigger the contactor, which handles high current. Also, install a surge protector on the equipment terminals--voltage spikes when the equipment stops damage the relay. For frequent on/off operations (more than 10 times/min), switch to a solid-state relay (SSR) instead of a mechanical relay.
First, calibrate the electronic gear ratio in InoProShop--match it to the servo's encoder resolution (e.g., 2500 pulses/rev) and mechanical transmission ratio (e.g., pulley ratio). Many users in Italy's textile factories forget this step. Then check the pulse output type: use differential pulse for distances over 5m (more stable than open-collector). Also, ensure the EtherCAT bus cycle is set correctly--1ms cycle is recommended for multi-axis synchronization (too long causes lag). If using pulse control, check the wiring for loose connections (common after transportation in Southeast Asia).
The Easy series' operating temperature range is -20℃~55℃. Overheating is usually due to poor ventilation. Don't stack modules too tightly--leave 5cm space around the PLC. Avoid installing the cabinet in direct sunlight (common in outdoor workshops in Thailand)--add a heat shield or cabinet air conditioner if ambient temp exceeds 50℃. Also, check if the power supply is overloaded: if you're using multiple expansion modules, upgrade to the GL20-PS2 power module (supports more modules with less heat generation).
First, confirm compatibility--Easy301 doesn't support expansion modules, while other models support GL20/GE21 series. Check the product manual. Then reset the hardware configuration: open InoProShop, delete the old module, add the new one, and download the configuration to the PLC. If still not recognized, clean the module's contacts with a dry cloth (dusty workshops in India cause contact issues)--don't use water or alcohol. Try plugging the module into another slot to rule out slot damage.
First, check the RS485 wiring--A connects to A, B connects to B (reversing them causes no communication). Use a multimeter to confirm. Then match the baud rate, parity, and data bits--both the PLC and the device must have the same settings (e.g., 9600 baud, 8 data bits, 1 stop bit, no parity). Also, ensure each device has a unique address (1-247)--duplicate addresses cause conflicts (common in small factories in Malaysia with multiple inverters). For cables over 100m, add a 120Ω termination resistor at both ends.
For transistor outputs (TN/TP models), check the wiring: sink output (TN) requires the actuator's positive terminal to connect to 24V, negative to the PLC's output pin; source output (TP) is the opposite. Many users in Europe mix up the wiring. For relay outputs (ER models), check if the relay is burned--use a multimeter to measure the output terminal (no voltage when energized means a burned relay). Also, check if the actuator's power supply is normal--no power to the actuator means it won't operate, even if the PLC output is on.
First, check if the PLC is in "Stop" mode--accidental operation of the mode switch on the front panel (common in workshops with multiple operators). Then check the power supply: voltage fluctuations (common in Southeast Asian grids) can trigger the PLC's undervoltage protection. Install a voltage stabilizer if needed. Also, check for program errors--e.g., an infinite loop in the program or exceeding the maximum scan time (100ms by default). Use InoProShop's "Monitor" function to check the scan time and locate the faulty program segment. Some users in South Korea encounter this due to incorrect loop programming.
The Inovance Easy Series PLC has obtained authoritative certifications worldwide for direct market entry:
