Product Details
Place of Origin: Germany
Certification: CE、UL、ATEX、IECEx、DNV、CCC、KC、IA、AN ZEX

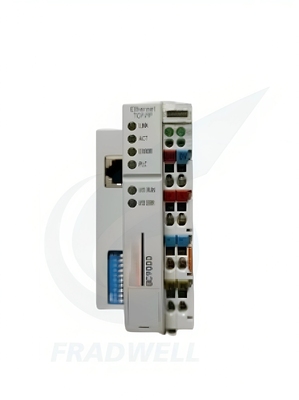

Model Number: BC9000、BC9100、BC9050
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $200 - $561
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Specific Parameter | Details |
|---|---|---|
| PLC Core Performance | Programming System | TwinCAT 2, compliant with IEC 61131-3 standard |
| Programming Languages | IL, LD, FBD, SFC, ST | |
| Program Memory | 64/96 KB | |
| Data Memory | 64/128 KB | |
| Retentive Data Storage | 4080 Bytes | |
| Instruction Execution Speed | Approx. 1.5 ms for 1000 instructions | |
| I/O & Expansion Capability | Number of Bus Terminals | Up to 64 bus terminals + 1 bus end terminal |
| Digital I/O | 512 input/output channels | |
| Analog I/O | 128 input/output channels | |
| Max Fieldbus Bytes | 512 bytes input, 512 bytes output | |
| Max Process Image Bytes | 512 bytes input, 512 bytes output | |
| Communication Parameters | Communication Protocols | TwinCAT ADS, Modbus TCP |
| Data Transmission Rate | 10/100 Mbit/s, automatic rate detection | |
| Bus Interface | 1× RJ45 port | |
| Configuration Method | KS2000 software or Ethernet | |
| Electrical Parameters | Supply Voltage | 24 V DC (-15% ~ +20% fluctuation) |
| Input Current | 70 mA + (total K-bus current)/4, max. 500 mA | |
| Starting Current | 2.5× continuous current | |
| K-bus Supply Current | Max. 10 A | |
| Electrical Isolation | 500 V | |
| Physical & Environmental | Protection Class | IP20 |
| Operating Temperature | -25℃ ~ +60℃ | |
| Storage Temperature | -40℃ ~ +85℃ | |
| Device Weight | Approx. 170 g | |
| Dimensions (W×H×D) | 51 mm × 100 mm × 69 mm | |
| Mounting Method | 35 mm DIN rail per EN 60715 |
| Model Number | Core Configuration | Key Features | Certifications |
|---|---|---|---|
| BC9000 (MNR: 4105BA120000) | 64/96 KB program memory; 64/128 KB data memory | Integrated PLC functionality; Modbus TCP/TwinCAT ADS protocols | CE, UL, ATEX, IECEx, DNV |
| BC9000 (MNR: 5000B2030000) | 64/96 KB program memory; 4080 bytes retentive storage | 10/100 Mbit/s auto-sensing; no parameter reconfiguration required | CE, UL |
| BC9000 (SKU: 743003) | 64/96 KB program memory; 512 bytes fieldbus capacity | 35 mm DIN rail mounting; 500 V electrical isolation | CE |
| BC9100 | 64/96 KB program memory; 2× RJ45 ports | Linear topology networking; consistent with BC9000 performance | CE, UL |
| BC9050 | 32/96 KB program memory; 1× RJ45 port | Compact design with lower cost; compatible with all bus terminals | CE, UL |
