Product Details
Place of Origin: Germany
Certification: ATEX、IECEx、FM Approval、IA、KC、DNV GL
Model Number: CX7000 CX8000 CX8200 CX5100 CX5200 CX5300 CX5600 CX9020 CX9040
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $50-$3,736
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter | CX7000 Series | CX8000 Series | CX8200 Series | CX5100 Series |
|---|---|---|---|---|
| Processor | CX70xx: 480MHz single-core Arm Cortex-M7 CX72xx: 720MHz single-core Arm Cortex-A |
400MHz 32-bit Arm9 single-core | 1.2GHz dual-core Arm Cortex-A53 | Intel Atom multi-core (CX5120: 1.46GHz single-core; CX5130: 1.75GHz dual-core) |
| Memory | Built-in RAM (varies by model); MicroSD card for storage | 64MB RAM; MicroSD card (512MB-8GB optional) for storage | 1GB LPDDR4 RAM; replaceable industrial MicroSD card | CFast card for booting and storage; capacity customizable |
| Operating System | TwinCAT/RTOS | Windows CE 6.0 | Beckhoff RT Linux | Windows Embedded Standard/TwinCAT BSD |
| Integrated I/O | 8 digital inputs (24V DC), 4 digital outputs (24V DC, 0.5A); configurable as counter, encoder, analog, PWM modes | No integrated I/O; connects to Bus Terminal/EtherCAT Terminal | No integrated I/O; automatic recognition of E-bus/K-bus | No integrated I/O; automatic I/O model recognition |
| Communication Interfaces | EtherCAT; optional multi-bus support | 10/100M Ethernet; supports ADS, ModbusTCP, etc | Gigabit Ethernet, USB 3.0; EtherCAT, multi-bus compatible | 2 independent Gigabit Ethernet ports, 4 USB 2.0 ports |
| Key Features | Compact, cost-effective, integrated multi-function I/O | Built-in 1-second UPS; pre-installed TwinCAT 2 Runtime | Built-in 1-second UPS; high-speed USB 3.0; TwinCAT NC PTP available | Fanless design; 2 independent Gigabit Ethernet; built-in 1-second UPS |
| Working Temperature | -25℃ to +60℃ | -25℃ to +60℃ | -25℃ to +60℃ | -25℃ to +60℃ |
| Mounting Method | DIN rail mounting | DIN rail mounting | DIN rail mounting | DIN rail mounting |
| Typical Application | Light-duty automation, small-scale control systems | General industrial control, medium-sized I/O expansion | Smart manufacturing, high-speed data transmission scenarios | Heavy-duty industrial control, high-performance real-time control |
| Series | Model | Core Configuration and Positioning |
|---|---|---|

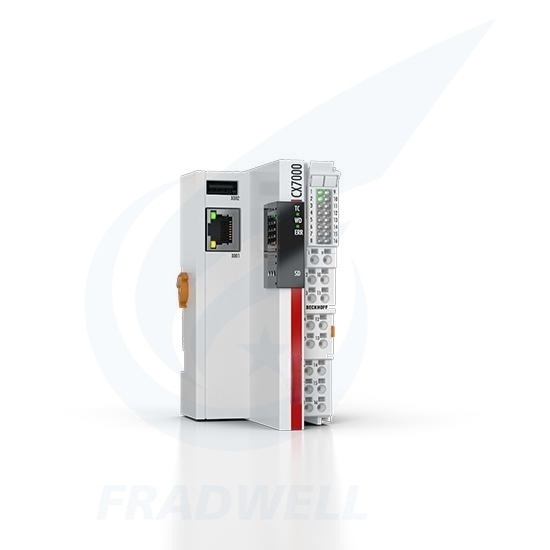

| CX7000 Series | CX7080 | 480MHz Arm Cortex-M7, 8DI/4DO, EtherCAT, fanless, for light automation |
| CX7280 | 720MHz Arm Cortex-A9, modular I/O, multi-bus, for medium-duty control | |
| CX8000 Series | CX8080 | 400MHz Arm9, 1s UPS, TwinCAT 2 Runtime, general industrial control |
| CX8180 | Arm Cortex, enhanced communication, RS232/RS485, for data-intensive tasks | |
| CX8200 Series | CX8280 | 1.2GHz dual-core Arm Cortex-A53, Gigabit Ethernet, USB 3.0, smart manufacturing |
| CX5100 Series | CX5120 | Intel Atom 1.46GHz single-core, fanless, 2 Gigabit Ethernet, light-heavy duty control |
| CX5130 | Intel Atom 1.75GHz dual-core, CFast storage, high-performance real-time control | |
| CX5200 Series | CX5230 | Intel Atom x5-E3930, modular, higher efficiency, for expanded I/O scenarios |
| CX5240 | Intel Atom x7-E3950, multi-tasking, for complex automation systems | |
| CX5300 Series | CX5330 | Intel Atom x6-E3950, powerful CPU, for heavy-duty industrial control |
| CX5340 | Intel Atom x6-E3950, enhanced memory, for high-load real-time tasks | |
| CX5600 Series | CX5620 | AMD Ryzen dual-core, high computing power, for ultra-complex automation |
| CX5640 | AMD Ryzen dual-core, expanded I/O, for industrial edge computing | |
| CX9020 Series | CX9020 | 1GHz Arm Cortex-A8, compact, Ethernet-based control, for simple automation |
| CX9240 Series | CX9240 | Arm Cortex-A53, universal use, DIN rail, for distributed control systems |
| Industry Sector | Typical Application Scenarios | Compatible CX Models | Core Value |
|---|---|---|---|
| Automotive Manufacturing | Body welding robot control, battery module assembly lines, stamping machine feeder systems with precision control and flexible production line adaptation | CX5130, CX5620, CX8280, CX7080 | Fanless design for dusty environments, TwinCAT software compatibility, EtherCAT high-speed communication for production line synchronization |
| Semiconductor/Electronics Manufacturing | Photoresist coating equipment, SMT pick-and-place machines, clean room environmental monitoring with precision motion control and dense equipment layouts | CX5340, CX9020, CX8180 | High computing power for precision control, compact size for dense layouts, multi-communication interface compatibility |
| Logistics, Warehousing & Ports | Automated container terminals, sorters and conveyor lines, AS/RS stackers with high-speed data transmission and reliable operation | CX5240, CX7280, CX8080 | High-speed network support, modular design for customization, UPS function for critical scenario reliability |
| Food & Beverage Packaging | Aseptic filling machines, labeling and cartoning lines, pasteurizers with fast response and multi-protocol compatibility | CX7280, CX8280, CX7080 | Fast response for high-speed packaging, multi-protocol sensor compatibility, temperature and dust resistance |
| New Energy (Solar PV/Energy Storage) | Solar tracking systems, energy storage battery control, module string welders with edge computing and stable communication | CX5640, CX5120, CX8080 | Edge computing capability, BMS system compatibility, UPS function for unstable power grids |
| Tire & Rubber | Tire vulcanizers, conveyor belt systems with high temperature and vibration resistance for harsh environments | CX5230, CX7280 | Environmental resistance, multi-axis synchronization, production traceability data integration |
| Marine & Offshore Engineering | Hybrid ferry propulsion, port crane control, yacht equipment with industrial-grade protection for marine environments | CX5130, CX9240, CX7080 | Marine environment adaptation, modular multi-system control, compact space design |
| Logistics & Warehouse Automation | AGV dispatching systems, sorting robots, refrigeration systems with high-speed communication and mobile adaptability | CX8280, CX9020, CX5330 | High-speed AGV communication, compact mobile robot integration, stable extreme temperature control |
