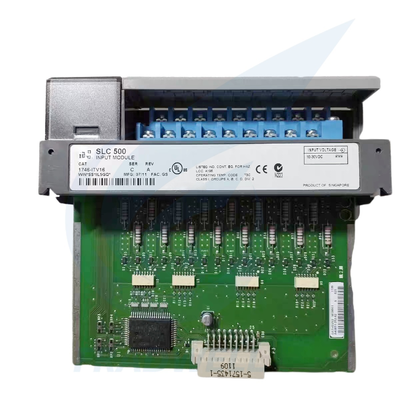

SLC 500 PLC 1747/1746｜Legacy System Compatible｜Industrial Control
| Specification Category | Description |
|---|---|
| Processor Models (1747 Series) | 1747-L511 (Compact), 1747-L524 (Medium), 1747-L551 (Large) |
| I/O Expansion Capability (1746 Series) | Supports up to 7 expansion chassis; 16 I/O modules configurable per chassis |
| Program Memory Capacity | Max 160KB user program memory |
| Communication Protocols | DH-485, EtherNet/IP, DeviceNet, RS-232 |
| Operating Temperature | 0°C ~ 60°C |
| Protection Rating | IP20 (Chassis) |
| Power Input | 120/240V AC, 24V DC |
| Programming Languages | Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST) |
| Model | Description |
|---|---|
| 1747-L511 | SLC 5/01 processor, entry-level model with basic control capability for small-scale discrete control tasks |
| 1747-L524 | SLC 5/02 processor, medium-performance model with moderate memory for mid-sized control applications |
| 1747-L541 | SLC 5/04 processor, 16K-word memory, supports DH+ and RS-232 communication |
| 1747-L542 | SLC 5/04 processor, 32K-word memory, suitable for complex sequential control with enhanced data storage |
| 1747-L543 | SLC 5/04 processor, 64K-word memory, ideal for large-scale control tasks requiring abundant program space |
| 1747-L551 | SLC 5/05 processor, 16K-word memory, supports Ethernet and RS-232 communication, enables networked control |
| 1747-L552 | SLC 5/05 processor, 32K-word memory, balances processing performance and network connectivity |
| 1747-L553/B | SLC 5/05 Controller (Series B), featured with stable Ethernet communication for industrial network integration |
| 1747-L553/C | SLC 5/05 Controller, optimized for data transmission in distributed control environments |
| 1747-L553/D | SLC 5/05 Controller, compatible with multiple industrial protocols for versatile system connection |
| Model | Description |
|---|---|
| 1747-SDN | DeviceNet scanner module, enables connection and control of DeviceNet-based distributed I/O devices |
| 1747-BSN | Backup scanner module, provides redundant communication support for stable data transmission |
| 1747-UIC | USB to DH-485 interface converter, facilitates quick connection between PC and SLC 500 system |
| 1747-PCIL/A | PCI interface module, allows PCI-equipped computers to establish communication with SLC 500 system |
| 1747-M1 | 1K EEPROM memory module for storing small-scale program data and system configurations |
| 1747-M2 | 4K EEPROM memory module for program backup and parameter storage |
| 1747-M11 | 32K flash memory module for reliable non-volatile storage of control programs |
| 1747-M12 | 64K flash memory module for storing large-volume program files and historical data |
| 1747-M13 | 64K flash EPROM memory module for high-stability storage of critical system programs |
| 1747-PSD | Program storage device for secure storage and quick retrieval of control programs |
| Model | Description |
|---|---|
| 1746-A2 | Fixed 2-slot I/O expansion chassis for small-scale I/O configuration with limited space |
| 1746-A4 | 4-slot chassis, compact rack for basic I/O modules in small automation projects |
| 1746-A7 | 7-slot I/O chassis, mainstream choice for medium-scale control systems |
| 1746-A10 | 10-slot I/O chassis for large-scale I/O expansion in complex industrial control |
| 1746-A13 | 13-slot I/O chassis for maximum I/O module expansion in high-density applications |
| Model | Description |
|---|---|
| 1746-IA4 | 4-point digital input module, 100/120V AC, for basic AC signal collection |
| 1746-IA8 | 8-point digital input module, 100/120V AC, for small-batch AC input signal monitoring |
| 1746-IA16 | 16-point digital input module, 100/120V AC, high-density input for AC-powered sensors |
| 1746-IB8 | 8-point digital input module, 24V DC, for collecting signals from DC sensors |
| 1746-IB16 | 16-point digital input module, 24V DC, common choice for high-density DC input |
| 1746-IB32 | 32-point digital input module, 24V DC, for large-scale DC input scenarios |
| 1746-IM4 | 4-point digital input module, 200/240V AC, for high-voltage AC signal collection |
| 1746-IM8 | 8-point digital input module, 200/240V AC, for monitoring high-voltage AC equipment |
| 1746-IM16 | 16-point digital input module, 200/240V AC, high-density high-voltage input |
| Model | Description |
|---|---|
| 1746-OA8 | 8-point digital output module, AC voltage, for controlling AC-powered actuators |
| 1746-OA16 | 16-point digital output module, AC voltage, high-density control for multiple AC devices |
| 1746-OB8 | 8-point digital output module, 24V DC, for driving small-power DC components |
| 1746-OB16 | 16-point digital output module, 24V DC, mainstream module for batch DC equipment control |
| 1746-OB16E | Enhanced 16-point DC digital output module with improved stability |
| 1746-OB32 | 32-point digital output module, 24V DC, for large-scale DC actuator control |
| 1746-OW4 | 4-channel relay output module for controlling high-voltage equipment |
| 1746-OW8 | 8-channel relay output module for medium-quantity high-voltage device control |
| 1746-OW16 | 16-channel relay output module for centralized control of multiple high-voltage devices |
| 1746-OVP16 | 16-channel high-current DC output module (sink type) for driving high-current DC loads |
| Model | Description |
|---|---|
| 1746-NI4 | 4-point analog input module for current/voltage signals and basic analog monitoring |
| 1746-NI8 | 8-point analog input module for multiple analog signals like temperature and pressure |
| 1746-NI16I | 16-point analog input module (current type) for 4-20mA current signals from transmitters |
| 1746-NI16V | 16-point analog input module (voltage type) for 0-10V voltage signal acquisition |
| Model | Description |
|---|---|
| 1746-NO4I | 4-point analog output module (current type) for 4-20mA signals to control actuators |
| 1746-NO4V | 4-point analog output module (voltage type) for 0-10V signals to analog-controlled equipment |
| 1746-NO8I | 8-point analog output module (current type) for large-scale current-based analog control |
| 1746-NO8V | 8-point analog output module (voltage type) for multiple voltage-controlled analog devices |
| Model | Description |
|---|---|
| 1746-HSRV | Servo control module, compatible with SLC 5/03, 5/04, 5/05 processors |
| 1746-QS | Synchronized axes control module for precise synchronization of multiple motion axes |
| 1746-QV | Open-loop velocity control module for velocity control of open-loop motion systems |
| 1746-SC-CTR4 | 4-channel 50kHz counter/flow meter input module for flow measurement and high-speed counting |
| 1746-SC-CTR8 | 8-channel 50kHz counter/flow meter input module for multi-channel high-speed counting |
| Model | Description |
|---|---|
| 1746-P1 | Rack-mount power supply, 120/240V AC input, 2A output for small-scale I/O chassis |
| 1746-P2 | Rack-mount power supply, 120/240V AC input, 5A output for medium-sized I/O configurations |
| 1746-P3 | Rack-mount power supply, 24V DC input, 3.6A output for DC-powered environments |
| 1746-P4 | Rack-mount power supply, 120/240V AC input, 10A output for large-scale I/O chassis |
| 1746-P5 | Rack-mount power supply, 125V DC input, 5A output for special DC power scenarios |
| 1746-P7 | Rack-mount power supply, 12/24V DC input, 2/3.6A output for low-voltage DC environments |
| Model | Description |
|---|---|
| 1746-R10 ~ 1746-R17 | Replacement covers for dust and moisture protection |
| 1746-RL35 ~ 1746-RL71 | Specialized replacement parts for maintaining I/O module integrity |
| 1746-RT25B | Blue replacement terminal block for DC I/O modules |
| 1746-RT25C | Orange relay contact module terminal block for relay-type I/O modules |
| 1746-RT25G | Green terminal block for specialty I/O modules |
| 1746-RT25R | Red replacement terminal block for AC I/O modules |
| Industry Sector | Application Scenarios |
|---|---|
| Automotive Components Manufacturing | Stamping production line control, component assembly process automation, equipment interlock protection |
| Food & Beverage Packaging | Filling equipment control, packaging line speed synchronization, finished product counting and sorting |
| Material Handling | Conveyor start-stop control, lifting platform positioning, warehouse shelf material sorting |
| Water Treatment | Pump station motor control, water quality parameter monitoring, sedimentation tank automatic sludge discharge |
| Machine Tool Processing | CNC machine tool auxiliary process control, tool change automation, machining process monitoring |
