Product Details
Place of Origin: USA
Certification: UL, CSA, CE, ATEX
Model Number: MicroLogix 1000/1100 MicroLogix 1200/1400 MicroLogix 1500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $150 - $2500
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter | Specification |
|---|---|
| Processor Type | MicroLogix 1000/1100/1200/1400/1500 |
| I/O Capacity | Up to 240 digital I/O, 32 analog I/O |
| Memory | Up to 32KB user memory |
| Communication Ports | Ethernet/IP, RS-232, RS-485, DF1 |
| Programming Software | RSLogix 500, Studio 5000 |
| Operating Temperature | -20°C to 60°C |
| Power Supply | 120/240V AC, 24V DC |
| Certification | UL, CSA, CE, ATEX |
| Series | Model | Core Parameters | Applicable Scenarios | Remarks |
|---|---|---|---|---|
| MicroLogix 1000 | 1761-L32AAA | 32 I/O points, 120/240V AC power supply | Standalone control of small equipment (e.g., small conveyor belts, simple packaging machines) | Discontinued; mainly circulated as spare parts overseas |
| MicroLogix 1000 | 1761-L20BWA-5A | 25 I/O points, with analog function, 24V DC power supply | Small scenarios requiring simple analog detection (e.g., small pressure control equipment) | Common in the overseas spare parts market; suitable for retrofitting old small production lines |
| MicroLogix 1000 | 1761-L10BXB | 10 I/O points, 6-channel 24V DC input, 24V DC power supply | Micro-automation scenarios (e.g., small valve control, sensor signal acquisition) | Compact body; suitable for narrow installation spaces |
| MicroLogix 1100 | 1763-L16BBB | 16 I/O points, integrated Ethernet/IP, with LCD panel | Networked control of small-to-medium equipment (e.g., small workshop assembly units) | Discontinued; supports online editing; high demand for maintenance of overseas in-service equipment |
| MicroLogix 1100 | 1763-L16BWA | 16 I/O points, 120/240V AC power supply, embedded Ethernet/IP | Small production lines requiring network communication (e.g., small food processing lines) | Compatible with Modbus RTU protocol; suitable for multi-device linkage scenarios |
| MicroLogix 1200 | 1762-L24BWA | 24 I/O points, supports 1762 series expansion modules | Step-by-step control of small-to-medium production lines (e.g., component assembly lines) | Discontinued in 2021; suitable for spare part replacement of overseas in-service automation production lines |
| MicroLogix 1200 | 1762-L40BWA | 40 I/O points, flexible I/O expansion, supports RS-232/RS-485 communication | Scenarios requiring multiple I/O expansions (e.g., small warehouse sorting equipment) | Suitable for industrial environments with low dust and small temperature differences; popular spare parts in overseas manufacturing industry |
| MicroLogix 1200 | 1762-L40BXB | 40 I/O points, 24V DC power supply, compatible with expansion modules | Equipment control under low-voltage power supply scenarios (e.g., on-board small automation devices) | Commonly used in overseas small equipment retrofitting projects |

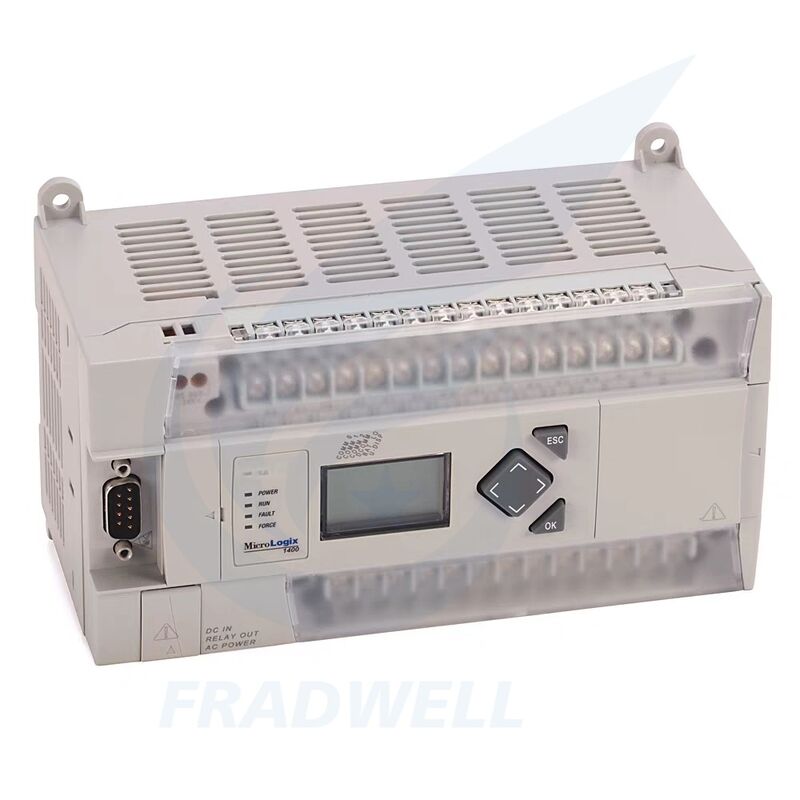

| MicroLogix 1400 (Mainstream Model on Sale) | 1766-L32BWA | 32 digital I/O points, integrated Ethernet/IP, with backlit LCD panel | Networked control of small-to-medium production lines (e.g., bottled beverage production lines, small water treatment equipment) | Supports 7 1762 expansion modules; mainstream model on sale overseas |
| MicroLogix 1400 (Mainstream Model on Sale) | 1766-L32BWAA | 32 digital I/O points + 6 analog I/O points, 110/240V AC power supply, 20KB memory (10KB program + 10KB data) | Networked scenarios requiring analog monitoring (e.g., control of small chemical reactors) | Built-in real-time clock; suitable for time-node control requirements |
| MicroLogix 1400 (Mainstream Model on Sale) | 1766-L32BXB | 32 I/O points, high-speed counter function, 24V DC power supply | Scenarios requiring high-speed signal acquisition (e.g., speed control of small machine tools, conveyor belt speed measurement) | With pulse train output; suitable for motion control-related small equipment |
| MicroLogix 1400 (Mainstream Model on Sale) | 1766-L32BXBA | 32 I/O points, enhanced network capability, backlit LCD panel | Small-to-medium scenarios with multi-device collaboration (e.g., small auto parts assembly lines) | Commonly selected for new small overseas industrial automation projects |
| MicroLogix 1500 | 1764-28BXB | 28 I/O points, 24V DC power supply, used as base unit | Medium scenarios requiring modular expansion (e.g., multi-process control of packaging equipment) | Needs to be used with CPU; discontinued; large circulation volume in the overseas spare parts market |
| MicroLogix 1500 | 1764-24BWA | 24 I/O points, AC power supply, supports memory expansion | Basic control of medium production lines (e.g., small building material forming equipment) | Compatible with RSLogix 500 programming; suitable for overseas old programming systems |
| MicroLogix 1500 | 1764-LRP | Enhanced controller, supports dual serial port communication, 24V DC power supply | Medium scenarios requiring multi-serial port communication (e.g., multi-sensor data aggregation equipment) | Core control spare parts for high-end old overseas production lines |
| MicroLogix 1500 | 1764-LSP | Standard processor, with a second 9-pin serial port, supports standard crossover cable programming | Medium equipment requiring convenient programming and debugging (e.g., workshop equipment maintenance and debugging) | Compatible with common standard programming cables overseas; low debugging cost |
| Series Expansion Modules | 1762-IQ16 | 16-channel 24V DC digital input module | Digital input expansion for each sub-series (e.g., multi-sensor signal expansion) | Suitable for 1200, 1400 and other series; commonly used for expansion of overseas in-service equipment |
| Series Expansion Modules | 1762-OW16 | 16-channel AC/DC relay output module | Multi-actuator control expansion (e.g., multi-valve, indicator light expansion) | High versatility; one of the most commonly used expansion modules for the overseas MicroLogix series |
| Series Expansion Modules | 1762-IF4 | 4-channel current/voltage analog input module | Analog signal acquisition expansion (e.g., pressure, temperature) | Suitable for scenarios requiring multi-analog detection (e.g., small environmental monitoring equipment) |
| Series Expansion Modules | 1762-OF4 | 4-channel analog output module | Analog control signal output expansion (e.g., frequency converter frequency adjustment) | Compatible with 1100, 1200, 1400 series; commonly used in overseas industrial retrofitting |
| Series Expansion Modules | 1761-NET-ENI | Ethernet interface module | Network communication expansion for non-Ethernet models (e.g., 1000 series networking retrofitting) | Suitable for retrofitting old overseas MicroLogix equipment without Ethernet function |
