Shanghai Fradwell Industrial Automation Co., Ltd.
cnsales@fradwell.com
86-21-68060766
Product Details
Place of Origin: USA
Certification: UL、CUL、CE、Class 1 Division 2、ATEX、IEC 61010-1、RoHS
Model Number: IC200UDR014 IC200UDR020 IC200UDR028 IC200UDR040 IC200UDR064
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $155 - $1226
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Specific Parameters | Details |
|---|---|---|
| Performance | Program Memory | Up to 128KB; Micro Plus Series: 48KB RAM + Flash |
| Scan Speed | Boolean instruction execution speed: 0.8ms/k (typical), high-speed scanning for real-time control | |
| Counters/Timers | 4 high-speed counters (max 100kHz), 1 PWM output (65kHz), 32-bit counters | |
| I/O Configuration | Native I/O Points | 14/20/28/40/64 points (64 points = max native I/O in the series) |
| Expandable I/O Points | Up to 170 points via expansion modules; supports mixed configuration of 4 discrete/analog modules | |
| Analog Processing | 12-bit conversion accuracy; supports 0-10VDC, 4-20mA signals (via expansion modules) | |
| Communication Interfaces | Standard Interfaces | RS-232 (RJ45); RS-485 (DB15) on selected models |
| Optional Modules | Ethernet module (10/100Mbps RJ45), USB 2.0 Slave, Modbus TCP/RTU modules | |
| Supported Protocols | Modbus RTU Master/Slave, Modbus TCP Server/Client, SNP/X, SRTP | |
| Power Specifications | Supply Voltage | 24VDC (19.2-30VDC wide range) or 115/240VAC (optional) |
| Power Consumption | Typical <10W (24VDC supply); <16VA (AC-powered models) | |
| Physical & Environmental | Dimensions | Compact design; Nano model: palm-sized; 64-point model: approx. 150×80×60mm |
| Operating Temperature | -20℃~60℃, suitable for harsh industrial environments | |
| Certifications | UL, CUL, CE, Class 1 Division 2 certified | |
| Programming & Compatibility | Programming Software | PAC Machine Edition (Proficy Machine Edition) |
| Programming Method | Online programming (no controller shutdown required), offline program download via memory module | |
| Programming Languages | Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST) |
| Category | Model Series | Specific Model | Key Specifications | Application Scenarios |
|---|---|---|---|---|

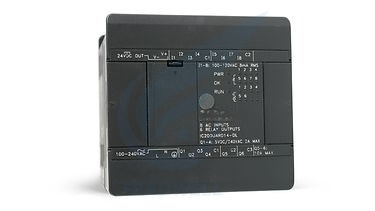

| Core Controllers | 14-Point Micro PLC | IC200UAR014 | 14 I/O points, 24VDC power supply, built-in RS-232 | Small conveyors, single-point inspection control |
| 20-Point Micro PLC | VersaMax Micro 20 Point | 20 I/O points, 24VDC / 115/240VAC optional | Small packaging equipment, simple assembly lines | |
| 28-Point Micro PLC | VersaMax Micro 28 Point | 28 I/O points, modular design, expandable | Small food processing equipment, HVAC control | |
| 40-Point Micro PLC | VersaMax Micro 40 Point | 40 I/O points, high-speed counter (100kHz) | Material sorting, small filling lines | |
| 64-Point Micro PLC | IC200UAR064 | 64 I/O points (40 inputs + 24 relay outputs), 24VDC power supply | Medium packaging lines, multi-station assembly equipment | |
| IC200UAR064-AC | 64 I/O points (40 inputs + 24 relay outputs), 115/240VAC power supply | Medium production lines adapted to overseas industrial power grids | ||
| IC200UAR064-DC | 64 I/O points (40 inputs + 24VDC source outputs), 24VDC power supply | Medium control scenarios for DC-driven equipment | ||
| Expansion Modules | 14-Point Expansion Unit | VersaMax Micro 14 Point Expansion | 14 I/O expansion points, 24VDC power supply | I/O expansion for 14-point controllers |
| 28-Point Expansion Unit | VersaMax Micro 28 Point Expansion | 28 I/O expansion points, 24VDC power supply | Function expansion for 28/40-point controllers | |
| 64-Point Expansion Unit | VersaMax Micro 64 Point Expansion (24VDC) | 64 I/O expansion points (40 inputs + 24 relay outputs), 24VDC power supply | Large-scale expansion for 64-point controllers | |
| VersaMax Micro 64 Point Expansion (AC) | 64 I/O expansion points (40 inputs + 24 relay outputs), 115/240VAC power supply | Expansion needs for high-voltage overseas scenarios | ||
| Analog Expansion | VersaMax Micro 4 Channel Thermocouple | 4-channel thermocouple/mV input, 12-bit accuracy | Temperature detection equipment expansion | |
| VersaMax Micro 6 Channel Analog | 6-channel analog input/output, supports 0-10VDC / 4-20mA | Pressure, flow sensor signal acquisition | ||
| Special Function Expansion | VersaMax Micro RTD Expansion | Supports Pt100, temperature range -100~+600℃, 2/3-wire type | Industrial furnace temperature, cold chain temperature control expansion | |
| VersaMax Micro Motion | 2 independent-axis motion control, supports PWM output (65kHz) | Small servo/stepper motor control | ||
| Communication Expansion Boards | Universal Communication Expansion | VersaMax Micro 20/40/64 USB Slave | USB 2.0 Slave, compatible with 20/40/64-point models | Local program download, data transmission |
| VersaMax Micro 20/40/64 RS-232 | RS-232 communication expansion, compatible with 20/40/64-point models | Serial device networking communication |
