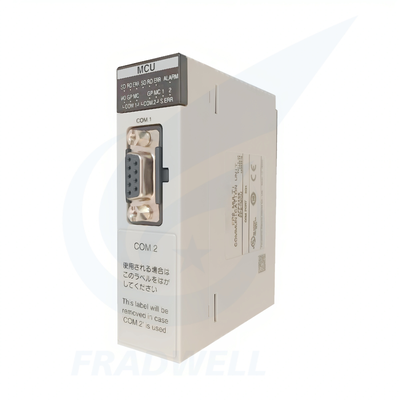

FP2 PLC | High-Speed Modular Controller

A compact, high-performance medium-scale PLC engineered for flexible industrial automation, the FP2 Series stands out with its ultra-fast operation speed (0.03μs/step for FP2SH models) and scalable modular design. Featuring 5-14 module motherboard options, it supports seamless expansion of digital/analog I/O and special function units like 112-axis RTEX position control. Equipped with standard RS232C and compatibility with PROFIBUS DP, DeviceNet, and CANopen, it integrates effortlessly into global factory networks. With a max 120k-step program capacity and a pocket-sized chassis (W140×H100mm for 5-module units), it delivers robust control for CNC machines, packaging lines, and logistics systems while minimizing equipment footprint—ideal for cost-efficient, space-saving automation projects.

Product Features

Compact Size: The FP2 integrates the functions of a medium-scale PLC into a pocket-sized chassis. The 5-module model measures W140×H100mm, contributing to the miniaturization of equipment.
Flexible Modular Design: Motherboards are available in multiple specifications including 5, 7, 9, 12, and 14 modules, with all units having the same width. Users can select cost-effective units according to their needs, ensuring high design flexibility.
Powerful Communication Capabilities: Equipped with a standard RS232C port, it can connect to operator panels and host computers for remote monitoring. In addition, it can be connected to various open networks such as PROFIBUS DP, DeviceNet, and CANopen by installing communication plug-ins.
High-Speed Operation: The FP2SH model achieves ultra-high-speed processing with a scan time of up to 1ms/20k steps, meeting the requirements of high-speed control applications.
Large Program Capacity: The FP2SH has a maximum program capacity of 120k steps, which can store a large number of programs to handle complex control tasks.
Strong Position Control Capability: The RTEX position control unit supports up to 112 axes, with three types available: 2-axis, 4-axis, and 8-axis, enabling flexible system configuration.

Core Technical Specifications

Category	Parameter Item	FP2 Standard Model	FP2SH High-Performance Model
CPU Performance	Operation Speed	0.35μs/step min.	0.03μs/step min.
	Scan Time	-	1ms/20k steps (top-tier in industry)
	Program Capacity	16k steps (expandable to 32k steps)	60k steps / 120k steps optional
	Built-in RAM	16k steps	60k steps / 120k steps
Storage Expansion	Expandable RAM	Supported (sold separately)	Not supported
	ROM Operation	Supported (sold separately)	Built-in (some models require separate purchase)
	IC Card Interface	None	Supported (IC card sold separately)
	Comment/Calendar Clock	Optional accessory required	Built-in
Communication Capability	Standard Interface	RS232C as standard	RS232C as standard
Communication Capability	Compatible Networks	PROFIBUS DP, DeviceNet, CANopen, FL-NET, MEWNET-VE	Same as FP2 standard model, plus Ethernet 10BASE-T
Physical Specifications	5-Module Model Dimensions	W140×H100mm	W140×H100mm
Environmental Adaptability	Operating Temperature	0℃~55℃	0℃~55℃
Environmental Adaptability	Certifications	RoHS Compliant, CE Certified	RoHS Compliant, CE Certified

Expansion Units & Components

CPU Units

Model	Core Features	Application Scenarios
FP2-C1	Basic CPU, 16k-step program capacity, 0.35μs/step operation speed, standard RS232C	Small-to-medium automation production lines, single-machine equipment control
FP2-C1D	Enhanced CPU, DC power input support, 32k-step program capacity	New energy equipment, outdoor automation stations
FP2-C1A	High-end CPU, multi-network protocol compatibility, built-in calendar clock	Cross-border factory networking, intelligent warehousing systems
FP2-C2 (AFP2231)	Medium-sized CPU, PROFIBUS DP/DeviceNet support, strong expansion capability	Auto parts production lines, large-scale packaging equipment
FP2SH (FP2-C1SL/FP2-C3P)	High-performance model, 0.03μs/step operation speed, 120k-step program capacity, Ethernet 10BASE-T support	CNC machine tools, 112-axis RTEX position control scenarios

Motherboard Units

Model	Core Features	Application Scenarios
FP2-BP05 (AFP25005)	5-module motherboard, compact size (W140×H100mm)	Small equipment integration, space-constrained automation scenarios
FP2-BP07 (AFP25007)	7-module motherboard, universal for basic/expansion configurations	Electronic manufacturing lines, semi-automated equipment
FP2-BP09 (AFP25009)	9-module motherboard, multi-unit expansion support	Food processing lines, logistics sorting equipment
FP2-BP12 (AFP25012)	12-module motherboard, large-capacity expansion	Auto assembly lines, large-scale warehousing systems
FP2-BP14 (AFP25014)	14-module motherboard, maximum expansion capability	Large complete sets of equipment in cross-border factories
FP2-BP11MH (AFP25011MH)	11-module H-type motherboard, suitable for high-integration scenarios	Precision machinery processing, semiconductor manufacturing equipment

Industry Applications

Machinery Manufacturing Industry

Auto Parts Processing: In automotive component factories across Germany and the United States, the FP2 PLC controls the precise operation of CNC lathes and stamping machines. It synchronizes material feeding, stamping, and quality inspection processes while regulating stamping stroke accuracy with pinpoint precision.

PCB Wet Process Manufacturing: PCB processing plants in Southeast Asia rely on the FP2 PLC to manage wet process equipment for copper plating, developing, and stripping. It accurately adjusts chemical solution temperature, liquid level, and spray flow rate while enabling real-time monitoring of process parameters.

Food Processing & Pharmaceutical Industry

European Food Packaging: In Italian sauce filling factories, the FP2 PLC coordinates the seamless operation of filling machines, labeling machines, and case sealers. It adapts filling speeds based on sauce viscosity and triggers alarms for label misalignment, ensuring compliance with EU food production regulations.

Southeast Asian Pharmaceutical Production: At capsule manufacturing plants in Thailand, the FP2 PLC oversees capsule filling, pill dropping, and packaging processes. It precisely controls rotation speed and duration while transmitting temperature and humidity data to guarantee GMP standards compliance.

Logistics & Warehousing Industry

U.S. E-commerce Warehouse Sorting: On automated sorting lines of Amazon's overseas warehouses, the FP2 PLC works with high-speed counting modules to identify barcode information and control sorting robotic arms. It processes over 2,000 packages per hour during peak hours while providing real-time feedback on sorting error rates.

German Automated Storage & Retrieval Systems: In German auto parts AS/RS facilities, the FP2 PLC governs stacker crane movements and storage/retrieval operations. Its pulse output function enables millimeter-level positioning accuracy while communicating with Warehouse Management Systems to update inventory data in real time.

Frequently Asked Questions

Installation Environment-Related Issues

Q: After installing the FP2 PLC in a Southeast Asian food processing plant, condensation alarms keep triggering and the equipment shuts down frequently. How to fix this?

A: Avoid mounting the PLC directly in humid areas near production lines. Install it in a sealed electrical cabinet equipped with a small dehumidifier or silica gel desiccants. Leave a clearance of at least 50mm between the PLC and the cabinet wall for heat dissipation. If there is steam in the workshop, install waterproof and breathable valves on the electrical cabinet.

Q: In a German auto parts factory, the FP2 PLC was installed next to stamping machines. Within a few days, signal interference occurred and stamping precision became unstable. What's the solution?

A: Place the PLC's electrical cabinet at least 3 meters away from the stamping machine's power cabinet. Use shielded cables for the PLC's I/O wiring, ground the shield layer at one end only, and never bundle these cables with the stamping machine's power cables. Connect the PLC to an independent regulated power supply and install a surge protector.

Wiring & Communication-Related Issues

Q: In a Mexican PCB factory, after connecting the FP2 PLC's RS485 communication module, we can never establish a connection with the host computer, and the error message "Communication Forbidden" pops up. What's the cause?

A: This issue is most likely caused by reversed RS485 A/B wiring. Double-check the wiring to ensure correct polarity. Also verify that the module's station number matches the communication parameters set on the host computer. Use a multimeter to test the module's communication voltage; if abnormal, replace it with an isolated RS485 module.

Q: In a U.S. e-commerce warehouse sorting line, after connecting the FP2 PLC's expansion modules, some I/O points fail to respond, and occasionally work again after re-plugging. What's going on?

A: Warehouse workshops have frequent forklift traffic, which causes vibrations that loosen the expansion module connectors. Add a fixing bracket between the expansion module and the CPU unit. Secure the wiring cables inside the cabinet with cable ties to prevent connector loosening from vibrations. Check the pins of the expansion cables for any bending during transportation or installation.
