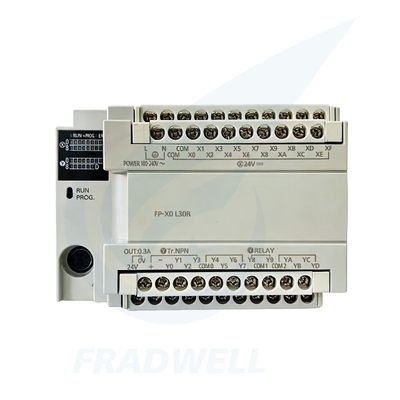

FP-X Series PLC – High-Speed Control for Industrial Automation

A: This is most likely a power compatibility or wiring issue--super common in overseas sites: ① First check the supply voltage--the FP-X Series supports 100-240V AC wide voltage, but some Southeast Asian factories use mixed 220V/110V lines. Use a multimeter to verify if the terminal voltage is within the 90-264V range; voltages below 90V will trigger protection. ② Check wiring polarity--make sure L/N wires aren't reversed, and terminal screws are tight (loose connections are frequent due to unstandardized on-site operations overseas). ③ Check power capacity--if the PLC shares a power supply with frequency converters or heaters, high startup currents may trip the circuit breaker. We recommend assigning a dedicated power supply with 1.5x the rated power to the PLC, or installing an isolation transformer.

A: Prioritize checking wiring and signal type compatibility--two easy pitfalls in overseas installations: ① Wrong wiring--digital input/output wires run in the same cable, or are bundled with power lines, causing signal loss from interference. Route them separately as per specifications; use shielded twisted-pair cables for analog signals, with the shield grounded at one end (control cabinet side only). ② Mismatched signal types--overseas sensors have NPN or PNP outputs, and FP-X inputs are bidirectional compatible. However, reversed sensor power supply (e.g., 24V +/- polarity reversed) will prevent signal recognition. Use a multimeter to test the sensor output terminal and confirm it outputs 24V or 0V when triggered. ③ Exceeded wiring length--signal attenuation becomes severe when input wiring exceeds 30 meters, especially in large-span Southeast Asian factories. Install signal amplifiers for runs over 20 meters, or mount the PLC closer to the sensors.

A: This is a common issue in overseas multi-device linkage scenarios (e.g., PLC connecting to HMI, frequency converters). Troubleshooting steps: ① Inconsistent protocol parameters--baud rate (commonly 9600/19200), parity bit (N/E/O) and slave address for Modbus-RTU must match those of frequency converters and HMIs exactly. Often, overseas clients modify parameters without synchronization. ② Loose wiring or excessive distance--RS485 communication signals distort beyond 100 meters. In large European factory workshops, add a repeater every 50 meters, or switch to Ethernet communication. ③ Electromagnetic interference--proximity to welding machines or high-power motors can interfere with communication. Encase communication cables in metal conduits, or relocate the PLC away from high-voltage equipment, keeping grounding resistance below 4Ω.
