FP0 series PLC: Compact body, powerful performance, empowering small-scale automation equipment.
-
Highlight

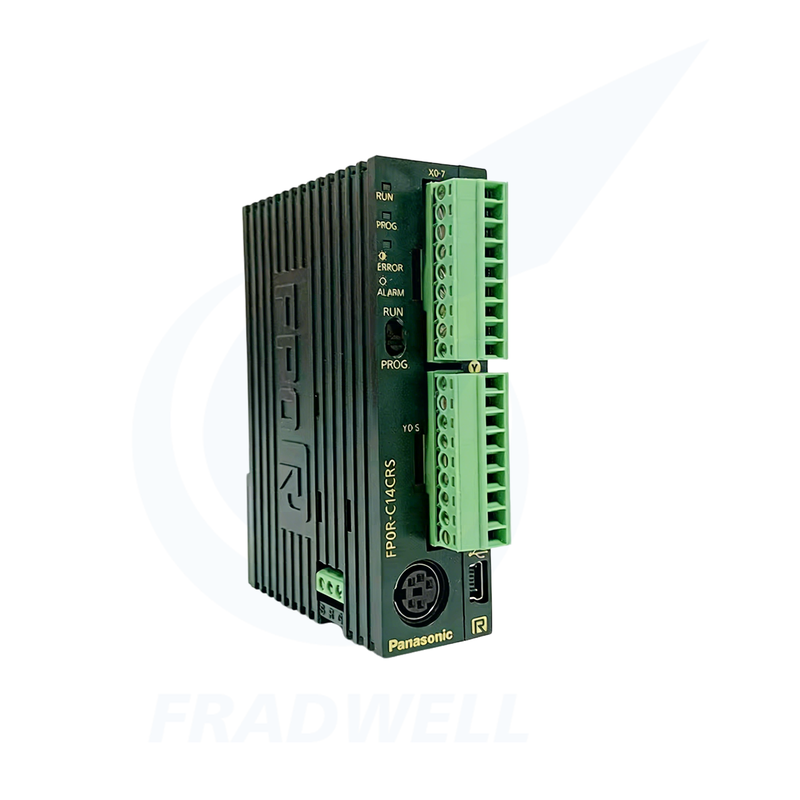

Panasonic FP0 series PLC compact
,small-scale automation PLC
,industrial control PLC with warranty
-
TypeProgrammable Logic Controller
-
WarrantyOriginal Manufacturer's Warranty
-
PakageOriginal Pakage
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginJapan
-
CertificationCE UL 508 CSA C22.2 No.142 KC NK ANATEL
-
Model NumberFP0
-
Minimum Order Quantity1
-
Price$68-$300
-
Delivery Time3-5workdays
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,
FP0 series PLC: Compact body, powerful performance, empowering small-scale automation equipment.
FP0 Series PLC: Compact Power for Small-Scale Automation
The FP0 Series PLC is an ultra-compact programmable logic controller engineered for small-scale automation scenarios. Boasting an ultra-slim 25mm footprint, it delivers powerful performance with fast instruction processing speed and flexible expansion capabilities.
Core Features & Benefits
Ultra-Compact Design, Space-Saving Installation
- 25mm ultra-slim body, the narrowest in its class for small automation devices
- Stackable expansion modules keep total width within 105mm even with 128 I/O points
- Ideal for space-constrained cabinets and embedded systems
Powerful Performance for Small-Scale Control
- High-speed instruction processing at 0.9μs per step
- Program capacity up to 2.7K steps (10K-step models available)
- Integrated 2-axis pulse output and high-speed counters for precise position control
Cost-Effective & Easy to Integrate
- All-in-one functionality reduces overall system cost
- Built-in RS232C port and support for Modbus RTU protocol
- No backup battery required with EEPROM program memory
Reliable & Secure Operation
- Password protection prevents unauthorized program modification
- Industrial-grade durability with wide temperature tolerance
- Suitable for harsh working environments in manufacturing and logistics
Versatile Application Scenarios
- Access control systems and small packaging machines
- Vending machines and conveyor belt systems
- Embedded devices and small-scale automation equipment
Technical Specifications
| Parameter Category | FP0-C10 Series | FP0-C16 Series | FP0-C32 Series | FP0-T32 Series |
|---|---|---|---|---|
| Basic Performance | ||||
| Instruction Execution Speed | 0.9μs per basic instruction | 0.9μs per basic instruction | 0.9μs per basic instruction | 0.9μs per basic instruction |
| Program Capacity | 2.7K steps | 2.7K steps | 5K steps | 10K steps |
| I/O Configuration | ||||
| Built-in I/O Points | 10 (6 input/4 output) | 16 (8 input/8 output) | 32 (16 input/16 output) | 32 (16 input/16 output) |
| Max Expandable I/O Points | 128 | 128 | 128 | 128 |
| Output Type | Relay (2A) / Transistor (NPN/PNP 0.1A) | Transistor (NPN/PNP 0.1A) | Transistor (NPN/PNP 0.1A) | Transistor (NPN/PNP 0.1A) |
| Power Supply | ||||
| Input Voltage | 24V DC | 24V DC | 24V DC | 24V DC |
| Communication | ||||
| Built-in Interface | RS232C (optional 2nd RS232C) | RS232C | RS232C | RS232C + Clock/Calendar |
| Supported Protocol | Modbus RTU, MEWTOCOL | Modbus RTU, MEWTOCOL | Modbus RTU, MEWTOCOL | Modbus RTU, MEWTOCOL |
| Physical Specifications | ||||
| Width | 25mm | 25mm | 25mm | 25mm |
| Height | 90mm | 90mm | 90mm | 90mm |
| Memory Type | EEPROM (no backup battery required) | EEPROM | EEPROM | EEPROM |
| Special Functions | ||||
| Pulse Output | 2-axis (10kHz max) | 2-axis (10kHz max) | 2-axis (10kHz max) | 2-axis (10kHz max) |
| High-Speed Counter | Supported | Supported | Supported | Supported |
Industry Applications
Electronics Manufacturing
Used in mobile phone charger factories for controlling small SMT machines and electronic component testing plants for capacitor voltage withstand test lines.
Food & Beverage Processing
Controls small filling machines in jam factories and juice sub-packaging plants for precise volume control and sorting operations.
Packaging & Printing
Manages self-adhesive labeling machines and heat-sealing operations for packaging films in various production environments.
Building Materials Processing
Controls tile belt printing machines and gypsum board cutting equipment with dust-resistant designs for harsh workshop conditions.
Small-Scale Logistics Sorting
Powers belt sorters and parcel weighing stations in community e-commerce warehouses and courier stations.
Frequently Asked Questions
Installation Stage
Q: I installed an FP0-C16T in a dusty tile factory and the I/O points failed. How to fix this?
A: Remove the PLC and blow dust out with compressed air. Install a dust cover and wrap terminal blocks with dustproof tape, sealing all gaps except heat dissipation holes.
Q: In humid environments, the FP0H-C32T shows "COM communication failure" after startup. How to solve this?
A: Power off and wipe the interface dry. Place silica gel desiccant in the control cabinet and raise the PLC installation position. Consider switching to RS485 versions for better moisture resistance.
Q: Pulse output is unstable when connecting to servo motors. What's the reason?
A: Add a level conversion module at the pulse output end to match signal voltage between FP0 (5V pulses) and servo motors (24V input).
Operation Stage
Q: Computer fails to recognize the FP0-C10RM after connecting USB programming cable. What's wrong?
A: Change computer system language to English, uninstall old driver, and install FP0R USB Driver V2.0 as administrator. Alternatively, use RS232C programming cable for better compatibility.
Q: FP0R-C14RM freezes during operation and program is lost after restarting. How to avoid this?
A: Install a small UPS at the PLC's 24V power end and regularly back up programs to SD card using FPWIN GR software.
Q: Cylinder action delays occur, out of sync with sensor signals. How to adjust this?
A: Replace sensor wiring with shielded cables, ground shield layer, and add noise filter at PLC power supply end to reduce electromagnetic interference.
