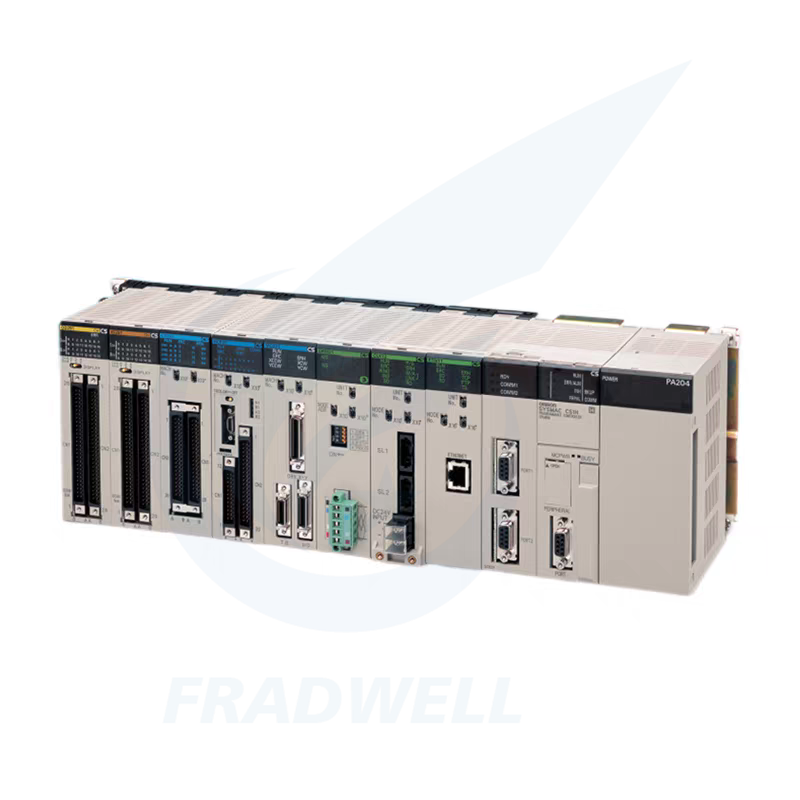

CS Series PLC: High-Reliability Redundant Control for Global Heavy Industry
The CS Series PLC is a mid-to-large-sized modular programmable logic controller designed for global heavy industry scenarios, with its core advantage lying in highly reliable redundant control capabilities, making it an ideal choice for heavy industrial automation control.
This series includes sub-models such as CS1G, CS1H, and CS1D. Among them, the CS1D serves as the core redundant model, supporting multi-dimensional redundant configurations for CPU, power supply, communication, and I/O expansion. The active and standby CPUs can automatically synchronize data and achieve seamless switching within one cycle, effectively avoiding system downtime risks. Meanwhile, it supports hot-swappable functionality, allowing CPU, power supply, I/O and other modules to be replaced while the system is powered on and running, which significantly reduces maintenance costs and downtime at overseas heavy industry sites.
In terms of performance, the CS Series features high-speed processing capability with a logic execution speed of up to 20ns. It supports a maximum of 5,120 I/O points and a 250K-step program capacity, capable of meeting the complex control requirements of large-scale heavy industries such as oil & gas, metallurgy, and automotive manufacturing. In addition, this series has obtained international certifications including CE, UL, and CSA, is compatible with IEC61131-3 standard programming languages, and can share software assets with the CJ Series, enabling quick adaptation to the construction and upgrade needs of industrial automation systems in different regions around the world.
Core Features
- Multi-level Redundant Configuration
Supports flexible redundancy for CPU, power supply, communication, and I/O modules, with the CS1D as the core redundant model. Active and standby CPUs automatically synchronize data and switch seamlessly within one cycle, ensuring system availability over 99.999% for critical heavy industry scenarios. Dual power supply units prevent downtime caused by power failures, while redundant communication modules enable automatic path switching if network lines fail.
- High-Speed & Large-Capacity Performance
Equipped with a 32-bit RISC processor, the LD/OUT instruction execution speed is as low as 20ns, and the cycle time reaches 38K steps/ms for basic instructions alone. It supports up to 5,120 I/O points, a maximum program capacity of 400K steps, and 832K words of data memory, easily handling complex control tasks in large-scale industrial systems. High-speed counters and pulse outputs (up to 100kHz) enable precise positioning control for equipment like CNC machines.
- Comprehensive Multi-protocol Communication
Covers global mainstream industrial bus protocols, including Ethernet/IP, PROFINET, PROFIBUS-DP, DeviceNet, and CompoNet. Supports 8 Socket interfaces for TCP/IP/UDP/IP, as well as FTP, SMTP, and SNTP functions, enabling seamless data linking with upper-level MES/ERP systems and cross-network communication across 8 levels. Serial communication modules (RS-232C/422/485) support Modbus and user-defined protocols for flexible connection with multi-vendor devices.
- Flexible Expansion & Wide Adaptability
Offers 9 CPU models covering small to large-scale systems, with up to 7 expansion racks and 72 units connectable. Long-distance expansion reaches 50m, suitable for large factory layouts. Compatible with digital/analog I/O, positioning, and special function modules, supporting both sink and source output modes to adapt to overseas wiring standards.
- Global Compliance & Reliable Operation
Certified by CE, UL, CSA, NK, and LR, meeting market access requirements in Europe, America, Southeast Asia, and other regions. Operates stably in -20℃~55℃ environments with strong anti-interference and vibration resistance. Equipped with over 200 diagnostic items and LED status indicators for quick fault identification.
Product Highlights
- Hot-Swappable & Maintenance-Friendly
All key modules (CPU, power supply, I/O, communication) support hot swapping, allowing replacement during system operation to minimize downtime. Online program editing and parameter modification eliminate the need for shutdowns, significantly improving maintenance efficiency for overseas heavy industry sites.
- Seamless Compatibility & Asset Reuse
100% upward compatible with Omron C/CJ series, enabling direct reuse of existing programs and modules without modifications. Compatible with IEC 61131-3 standard programming languages (LD/ST/SFC/FBD/IL) and shares software assets with CX-One, reducing development and migration costs.
- Cost-Effective High-Reliability Solution
Redundant system costs are 40% lower than traditional DCS, while achieving equivalent or higher availability. Modular design allows on-demand configuration, avoiding hardware waste. The MTBF of core modules exceeds 100,000 hours, reducing long-term operation and maintenance costs for global manufacturers.
- User-Friendly Development Environment
CX-One integrated software provides programming, simulation, and monitoring functions, with structured programming and function block (FB) reuse to improve development efficiency. Built-in high-precision PID control (32 loops) and self-tuning functions simplify complex process control programming.
Core Parameter Table
| Parameter Category |
Specific Parameter |
CS1G Series (CS1G-CPU42H/43H/44H/45H) |
CS1H Series (CS1H-CPU63H/64H/65H/66H/67H) |
CS1D Series (CS1D-CPU42S/44S/65S/67S) |
| I/O Capacity |
Max I/O Points |
42H/43H: 960 points
44H: 1280 points
45H: 5120 points |
All models: 5120 points |
42S: 960 points
44S: 1280 points
65S/67S: 5120 points |
| Program Capacity |
42H: 10K steps
43H: 20K steps
44H: 30K steps
45H: 60K steps |
63H: 20K steps
64H: 30K steps
65H: 60K steps
66H: 120K steps
67H: 250K steps |
42S: 10K steps
44S: 30K steps
65S: 60K steps
67S: 250K steps |
| Processing Performance |
Basic Instruction Execution Speed |
20ns (LD/OUT instructions) |
20ns (LD/OUT instructions) |
20ns (LD/OUT instructions), redundant switchover < 1 cycle |
| Communication Capability |
Standard Interfaces |
RS-232C |
RS-232C + USB, supports 8-level network communication |
Redundant communication interfaces (RS-232C/Ethernet), supports automatic switchover |
| Expansion Capability |
Max Expansion Racks |
Up to 7 racks |
Up to 7 racks, supports expansion of 80 modules |
Redundant expansion racks, supports hot-swappable modules |
| Environment & Certification |
Operating Temperature |
-20℃ ~ 55℃ |
-20℃ ~ 55℃ |
-20℃ ~ 55℃, supports industrial-grade dustproof and waterproof performance |
Industry Applications
- Oil & Gas (Middle East/North Sea Oilfields)
In Saudi Aramco's oilfield water injection stations or Norway's offshore drilling platforms, the CS1D redundant CPU is the core control unit. It handles real-time monitoring of pipeline pressure, flow rate, and valve status—if the active CPU fails, the standby one switches over in less than 1 cycle, zero downtime. The CS1W-PTS11 temperature module tracks the temperature of crude oil in transit, preventing wax deposition that could block pipelines.
- Metallurgy (Eastern Europe/South Africa Steel Mills)
Polish aluminum extrusion plants and South African copper smelters rely on the CS1H-CPU67H to control the entire smelting process. It syncs the speed of conveyor belts feeding raw ore, the temperature of electric arc furnaces, and the movement of robotic arms for slag removal. With a 250K-step program capacity, it stores multiple smelting recipes.
- Automotive Manufacturing (Germany/Mexico Car Plants)
German luxury car assembly lines and Mexico's auto parts factories use the CS1G-CPU45H to manage welding robots, painting booths, and chassis assembly stations. The PLC's 5120 I/O points connect hundreds of sensors and actuators for comprehensive production line control.
- Power Generation (Southeast Asia/US Power Plants)
Vietnam's hydropower stations and Texas' natural gas power plants use the CS1D-CPU67S for turbine control and grid synchronization. It regulates the turbine's rotational speed based on grid load changes, and switches between grid-connected and off-grid modes smoothly during power outages.
- Mining (Australia/Brazil Mines)
Australian iron ore mines and Brazilian bauxite mines use the CS1D-CPU44S to control conveyor belt systems and ore crushers. The PLC monitors the load on each conveyor belt and automatically adjusts operations to prevent equipment overload and damage.
Frequently Asked Questions
Q1: The PLC has no response after power-on overseas, and the power supply checks out fine—what's the cause?
It's most likely due to poor contact between the rack backplane and CPU module, or exceeding the maximum number of expansion racks. Overseas factory transportation involves a lot of jostling, which can loosen the CS series CPU modules easily. First, power off the system, pull out the CPU and power modules, reinsert them firmly, then tighten the module fixing screws.
Q2: In overseas heavy industry sites, the program runs abnormally after CS1D redundant CPU switchover—how to fix it?
The core issue is unsynchronized data between the active and standby CPUs, or incorrect switchover trigger settings. Many overseas users only connect the CPU redundant cables but forget to enable the "automatic data synchronization" function in CX-Programmer, resulting in the standby CPU running an outdated program version.
Q3: In high-temperature and high-humidity overseas regions, the PLC frequently reports I/O faults—how to handle this?
This is mainly caused by module short circuits due to condensation, or poor contact from terminal block oxidation. While the CS series is temperature and humidity resistant, workshop humidity in Southeast Asian rainy seasons can exceed 90%, leading to condensation inside electrical cabinets. Install a dehumidifier in the cabinet and ensure proper terminal maintenance.
Q4: When communicating with overseas-brand inverters and sensors, there's severe data packet loss—how to troubleshoot?
Either the protocol versions are incompatible, or the shielding layer grounding method of the communication cable is wrong. For example, Siemens inverters in Europe use PROFIBUS-DP V1, while the CS1W-PRM21 module defaults to V0—this incompatibility causes packet loss. Upgrade the module's protocol version and ensure proper cable shielding.
Q5: After a power outage and recovery in overseas factories, the PLC program is intact, but all recipes in the data registers are gone—why?
The data register retention area isn't set, or the backup battery is dead. The CS series program is backed up by the battery, but data registers are not retained by default—you need to mark the register ranges corresponding to recipes as "retained" in CX-Programmer.
