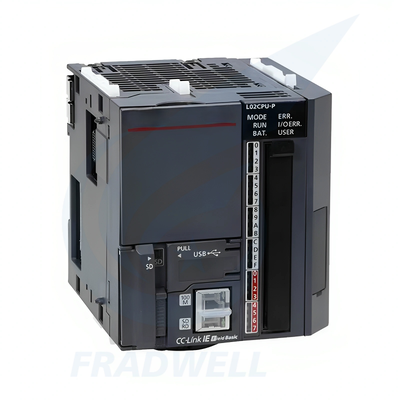

MELSEC-L PLC: Reliable, Scalable, Ideal for Global Factories
MELSEC-L Series PLC stands as a trusted backbone for global factory automation, combining proven reliability with flexible scalability to meet the diverse needs of cross-border industrial projects. Covering entry-level to high-performance CPU models, it supports multi-protocol communication including Ethernet and CC-Link, and complies with international industrial standards. Whether for small-scale equipment control or complex medium-sized production line integration, the MELSEC-L Series delivers stable, high-speed operation, reduces unplanned downtime, and adapts seamlessly to automotive, packaging, food & beverage and other key manufacturing sectors worldwide.
Core Features & Highlights
Reliable & Stable Operation
- Industrial-grade design with high anti-interference performance, suitable for harsh factory environments (temperature, humidity, electromagnetic interference)
- Low failure rate and long service life, supporting 24/7 continuous operation to reduce unplanned downtime for global production lines
Flexible Scalability for Diverse Needs
- Covers a full range of models from entry-level (L02 series) to high-performance (L26 series), matching small equipment control to complex medium-sized automation systems
- Supports flexible expansion of I/O points (max 4096 points) and functional modules (CC-Link, Ethernet, etc.), easily adapting to later production line upgrades
High-Speed & Precise Control
- Basic operation speed as fast as 9.5ns, realizing quick response to production signals and improving the accuracy and efficiency of process control
- Large program capacity (up to 260k steps) supports complex logic programming, meeting the control requirements of multi-process industries like automotive and packaging
Global Standard Compliance & Multi-protocol Connectivity
- Complies with international industrial standards (CE, UL, etc.), no barriers to application in overseas markets
- Built-in multi-protocol interfaces (USB, Ethernet, CC-Link Ver.2) to achieve seamless connection with different brands of equipment and upper monitoring systems
Hassle-Free Cross-Border Service Support
- Global after-sales network coverage, providing timely technical consultation and maintenance services for overseas clients
- Part of the models are in stock for urgent orders, with efficient cross-border delivery solutions to shorten the supply cycle
Product Models List
| Type |
Model |
I/O Points |
Program Capacity |
Basic Operation Speed |
Core Interface/Function |
Output Type |
Remarks |
| CPU Unit |
L02SCPU |
1024 |
20k steps |
60ns |
USB/RS-232 |
Sink Type |
Entry-level, no Ethernet interface |
| CPU Unit |
L02SCPU-P |
1024 |
20k steps |
60ns |
USB/RS-232 |
Source Type |
Entry-level, no Ethernet interface |
| CPU Unit |
L02CPU |
1024 |
20k steps |
40ns |
USB/Ethernet |
Sink Type |
Entry-level with built-in Ethernet |
| CPU Unit |
L02CPU-P |
1024 |
20k steps |
40ns |
USB/Ethernet |
Source Type |
Discontinued in Sep 2024, stock available in some overseas regions |
| CPU Unit |
L06CPU |
4096 |
60k steps |
9.5ns |
USB/Ethernet |
Sink Type |
Mid-performance, suitable for medium-sized equipment |
| CPU Unit |
L06CPU-P |
4096 |
60k steps |
9.5ns |
USB/Ethernet |
Source Type |
Mid-performance, suitable for medium-sized equipment |
| CPU Unit |
L26CPU |
4096 |
260k steps |
9.5ns |
USB/Ethernet |
Sink Type |
High-performance, for complex automation systems |
| CPU Unit |
L26CPU-P |
4096 |
260k steps |
9.5ns |
USB/Ethernet |
Source Type |
High-performance, for complex automation systems |
| CPU Unit |
L26CPU-BT |
4096 |
260k steps |
9.5ns |
USB/Ethernet + CC-Link Ver.2 |
Sink Type |
Built-in CC-Link master station function |
| CPU Unit |
L26CPU-PBT |
4096 |
260k steps |
9.5ns |
USB/Ethernet + CC-Link Ver.2 |
Source Type |
Built-in CC-Link master station function |
| Function Module |
LJ72GF15-T2 |
- |
- |
- |
CC-Link IE Field Network (1Gbps), ring/star topology |
- |
Intelligent device station |
| Function Module |
LJ71GF11-T2 |
- |
- |
- |
CC-Link IE Field Network (1Gbps), max 16384 remote I/O points |
- |
Master/local station |
| Function Module |
LJ61BT11 |
- |
- |
- |
CC-Link (10Mbps), max 8192 remote I/O points |
- |
Master/local station |
| Power Module |
L61P |
- |
- |
- |
AC100-240V input, DC5V/5A output |
- |
Mainstream power module for most CPUs |
| Power Module |
L63P |
- |
- |
- |
DC24V input, DC5V/5A output |
- |
Order stop scheduled for 2027, replacement available overseas |
Application Fields and Scenarios
Automotive Manufacturing (Global Assembly Lines)
A go-to for overseas auto OEMs and parts suppliers. Whether it's a small stamping line for auto components in Southeast Asia or a battery module assembly line for electric vehicles in Europe, the L26CPU-BT's CC-Link networking capability syncs robots, conveyors, and inspection equipment seamlessly. The entry-level L02 series handles precise control for single workstations like door/window assembly. Its industrial-grade anti-electromagnetic interference design stands up to welding equipment's strong interference, keeping 24/7 production running without glitches.
Food & Beverage Processing (EU/US Compliance-Focused Plants)
Perfect for food factories targeting EU/US markets, where hygiene standards are strict and production lines need frequent format changes. The MELSEC-L's stainless-steel housing fits clean rooms, and its large program capacity lets you switch recipes easily--from bottled water and canned drinks to baked goods. The L06CPU's high-speed processing precisely controls filling volumes and sealing temperatures, cutting down material waste. It meets FDA and EU 10/2011 food contact standards, so overseas clients don't need extra compliance certifications.
Packaging Machinery (Cross-Border OEM Equipment)
A top choice for overseas packaging machinery OEMs. Whether supplying carton forming machines to North American clients or cosmetic bottle labeling machines to Middle Eastern buyers, the L series' flexible scalability adapts to different regional voltages (110V/220V) and equipment interfaces. It supports both Ladder Diagram and Structured Text programming, so local technicians overseas can debug without learning new coding languages.
Electronics Manufacturing (Asian & Latin American Factories)
A must-have for consumer electronics contract manufacturers in Southeast Asia and Latin America. For example, on smartphone screen lamination lines or small appliance circuit board soldering lines, the L02CPU's built-in Ethernet connects directly to MES systems, uploading production data in real time. Its high-speed counter function ensures precise movement of SMT machine nozzles, reducing defect rates. Compact and low-power, it fits dense equipment layouts in workshops.
Warehouse & Logistics Automation (European Distribution Centers)
Widely used in sorting lines and AGV dispatching systems at European e-commerce logistics hubs. The L series' multi-protocol communication works with sensors and AGV controllers from different brands. Its stable performance handles peak sorting volumes of over 10,000 items per hour--no data lag or misorders. With CE certification, it can be directly installed in overseas logistics parks without modifications.
Textile Machinery (South Asian Production Hubs)
A favorite among spinning and weaving mills in India and Bangladesh. Workshops here are humid and dusty, but the MELSEC-L's moisture and dust resistance holds up. The L06 series' large I/O capacity controls synchronized start/stop of multiple looms, reducing yarn breakage. It supports local language programming interfaces, so on-site workers don't need English skills to operate it.
Frequently Asked Questions
Q1: The voltage in overseas factories is different from that in China. Can the L-series PLC be used directly? Will it burn the equipment?
A: No need to worry--most models support wide voltage input. The L06/L26 series work with AC100-240V, so they can be directly connected to 110V (North America), 220V (Europe), or 230V (Southeast Asia) power supplies. Only the L02 series has a fixed DC24V input, which just needs a local switching power supply. The key is to check the nameplate before wiring--don't mix up AC and DC terminals, otherwise the module will really burn out.
Q2: After installation in an overseas workshop, the PLC often loses communication and can't connect to the HMI or upper computer. What should I do?
A: It's probably two issues: first, electromagnetic interference. Welding machines and inverters in overseas workshops are too close to the PLC, which interferes with signals. The solution is to route communication cables separately from power cables, put them in shielding tubes, and ground one end of the shielding layer. Second, protocol mismatch. For example, European customers often use PROFINET, but the L-series defaults to Ethernet/CC-Link--you need to install a communication module or switch the protocol in the programming software. Also, check the IP address to avoid conflicts with other equipment in the workshop.
Q3: During overseas installation, local engineers say the PLC doesn't meet their safety certifications and won't allow power-on. What to do?
A: The L-series itself has mainstream certifications like CE, UL, and CSA, which meet the requirements of most regions including Europe, America, and Australia. In this case, just send the product certification documents to the local engineers. Note two points: first, don't use discontinued old models (such as the L63SP power supply)--some old models may have expired certifications. Second, wiring must comply with local standards: for example, Europe requires the ground wire cross-sectional area to be no less than 2.5mm², and North America needs a dedicated leakage protector.
Q4: In tropical regions (like Southeast Asia and the Middle East), high humidity and temperature--will the PLC break down easily? How to protect it?
A: The L-series has an operating temperature range of 0-55℃ and humidity tolerance of 10%-90% (no condensation). But in tropical regions, workshop temperatures often exceed 60℃ in summer--direct installation will definitely cause frequent failures. Suggestions: ① Install the PLC in an electrical cabinet with air conditioning, don't expose it directly to the workshop. ② Put moisture-proof desiccant at the bottom of the electrical cabinet to prevent condensation from dripping on the module. ③ Add a surge protector to the PLC's power terminals to avoid motherboard damage from voltage fluctuations during thunderstorms.
Q5: Overseas customers want to connect the PLC to the local MES system to read production data, but the programming software is in Japanese/English and local technicians don't know how to use it. What to do?
A: First, the GX Works3 programming software has an English version--just install the English edition, and the interface is similar to the Chinese version. Second, connecting to the MES system doesn't require complex programming. The L-series Ethernet port supports the MC protocol--let the MES engineer read data directly from the PLC's registers via Ethernet without modifying the program. In addition, Mitsubishi has technical support outlets overseas--if you really can't figure it out, you can ask local after-sales to help with remote debugging.
Q6: After the PLC runs overseas for a period of time, I/O points fail--for example, input signals don't respond or outputs jump randomly. What's the reason?
A: It's most likely due to loose wiring or dust/corrosion. In overseas factories like textile mills in South Asia or chemical plants in the Middle East, dust is heavy and the air is corrosive, which oxidizes the wiring terminals. Solutions: ① Use crimp terminals during installation, tighten the screws, and don't insert wires directly. ② Regularly clean dust in the electrical cabinet and spray anti-rust agent on the terminals. ③ For faulty I/O points, switch to spare points in the software--no need to disassemble the machine to replace the module.
Q7: After overseas installation, the PLC shows a "battery fault" alarm, but a new battery was just replaced. What's going on?
A: Two possibilities: first, wrong battery model. Third-party batteries bought overseas may have mismatched voltage--be sure to use original Mitsubishi lithium batteries. Second, poor battery contact. Turn off the power when replacing the battery, fasten the battery tightly, and don't let the terminal shrapnel loosen. In addition, the L-series battery is for program backup--even if it alarms, the PLC can still run. Just replace it quickly without shutting down production.
