Product Details
Place of Origin: Japan
Certification: UL/culus KC RoHS CE IEC 61508、IEC 62061、ISO 13849-1 ABS、BV、DNV、KR、LR、NK、RINA

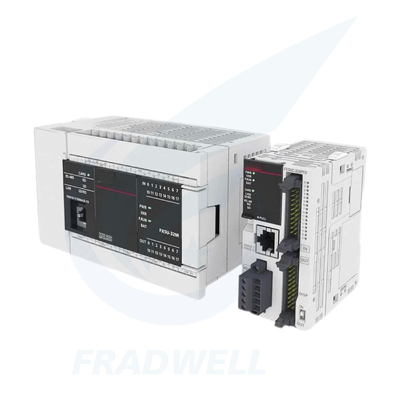

Model Number: FX5U, FX5UC, FX5UJ，FX5S
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD88-2100
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Series | Specific Model | I/O Points | Power Supply | Output Type | Core Features |
|---|---|---|---|---|---|
| FX5U | FX5U-32MR/ES | 32 points | AC | Relay | Built-in Ethernet & RS-485, 6-channel 200kHz counter |
| FX5U | FX5U-32MT/ES | 32 points | AC | Transistor (Sink) | 4-axis 200kHz positioning, 6-channel counter |
| FX5U | FX5U-32MT/ESS | 32 points | AC | Transistor (Source) | Diverse wiring compatibility, 6-channel counter |
| FX5U | FX5U-64MR/ES | 64 points | AC | Relay | 8-channel 200kHz high-speed counter |
| FX5U | FX5U-64MT/ES | 64 points | AC | Transistor (Sink) | 4-axis positioning, 8-channel counter |
| FX5U | FX5U-64MT/ESS | 64 points | AC | Transistor (Source) | High expandability, 8-channel counter |
| FX5U | FX5U-80MR/ES | 80 points | AC | Relay | Medium-scale projects, 8-channel counter |
| FX5U | FX5U-80MT/ESS | 80 points | AC | Transistor (Source) | High expandability, 8-channel counter |
| FX5U | FX5U-32MR/DS | 32 points | DC | Relay | DC power scenarios, 6-channel counter |
| FX5UC | FX5UC-32MT/D | 32 points | DC | Transistor (Sink) | Compact design for small equipment |
| FX5UC | FX5UC-32MT/DSS | 32 points | DC | Transistor (Source) | Spring terminal wiring support |
| FX5UC | FX5UC-32MT/DS-TS | 32 points | DC | Transistor (Sink) | Spring clamp terminal block |
| FX5UC | FX5UC-64MT/D | 64 points | DC | Transistor (Sink) | Medium-scale compact systems |
| FX5UC | FX5UC-96MT/DSS | 96 points | DC | Transistor (Source) | Highest I/O in FX5UC series |
| FX5UJ | FX5UJ-24MR/ES | 24 points | AC | Relay | Cost-effective small-scale control |
| FX5UJ | FX5UJ-24MT/ESS | 24 points | AC | Transistor (Source) | Basic high-speed counting |
| FX5UJ | FX5UJ-24MR/DS | 24 points | DC | Relay | Low-power consumption applications |
| FX5S | FX5S-30MR/ES | 30 points | AC | Relay | Entry-level, low cost, easy operation |
| FX5S | FX5S-30MT/ES | 30 points | AC | Transistor | Entry-level, low cost, easy operation |
| Parameter | FX5U (Flagship) | FX5UC (Compact) | FX5UJ (Cost-Effective) | FX5S (Entry-Level) |
|---|---|---|---|---|
| CPU Performance | 34ns LD instruction speed | Same as FX5U | ~2x faster than FX3U | Basic high-speed processing |
| Program Memory | 128k steps | 128k steps | 64k steps | 32k steps |
| Controllable I/O | Up to 512 points | Up to 512 points | Up to 256 points | Up to 256 points |
| Built-in Communication | Ethernet + RS-485 | Same as FX5U | Ethernet + RS-485 Lite | Basic Ethernet + RS-485 |
| Analog I/O | Built-in 2×12-bit input + 1×12-bit output | Expansion required | Expansion required | Expansion required |
| High-Speed Counter | 8 channels @ 200kHz | Same as FX5U | 4 channels @ 100kHz | 4 channels @ 100kHz |
| Positioning Function | 4-axis @ 200kHz | Same as FX5U | 2-axis @ 100kHz | 2-axis @ 100kHz |
| Special Functions | SD card, web server, security | Same as FX5U | USB Mini-B programming | Basic SD card logging |
| Power Supply | AC/DC global compatible | DC power mainly | AC/DC optional | DC power |
